3.91 SMD HD Screen Full Color Indoor Led Video Panel Led Display

3.91 SMD HD Screen Full Color Indoor Led Video Panel Led Display

    • 3.91 SMD HD Screen Full Color Indoor Led Video Panel Led Display
    • 3.91 SMD HD Screen Full Color Indoor Led Video Panel Led Display
    • 3.91 SMD HD Screen Full Color Indoor Led Video Panel Led Display
    • 3.91 SMD HD Screen Full Color Indoor Led Video Panel Led Display
  • 3.91 SMD HD Screen Full Color Indoor Led Video Panel Led Display

    Product Details:

    Place of Origin: CHINA
    Brand Name: SCXK
    Certification: CB/CE/ROHS/FCC/ISO/UL
    Model Number: smd -p3.91

    Payment & Shipping Terms:

    Minimum Order Quantity: 1sqm
    Price: negotiation
    Packaging Details: wooden case,flight case,it is up to you.
    Delivery Time: 8-12 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 5000 sqm month
    Contact Now
    Detailed Product Description
    Lamp Size: 2121 Resolution/mm: 3.91
    Pixel Configuration: RGB 3 In 1 Pixel Density/pixels/m²: 65410/m²
    Module Size/mm: 250x250 Scanning Mode: 1/16
    Refresh Frequency: >3840Hz Power Supply:: Meanwell
    Warranty: 5 Years

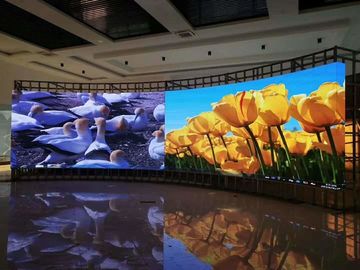

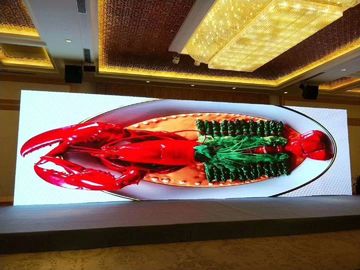

    3.91 SMD HD Screen Full Color Indoor Led Video Panel Led Display



    ♦ Small Pixel LED Screen for Clearer Pictures



    The Small Pixel LED Display features small pixel modules which presents clearer and vivid images even in low brightness and dark days. The display is suitable for various applications including security monitoring center, scheduling command platform, smart city, television studio and high-end meetings.



    ♦ Production process:

    1) Incoming Inspection→2) SMD→3) Plug-in

    →4) Wave Soldering→5) After Welding→6) Testing

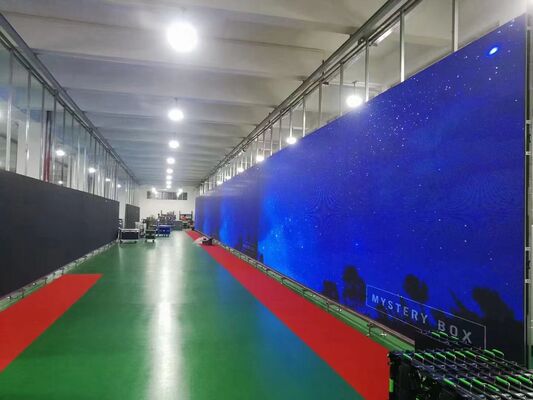

    →7) Semi Finished Aging→8) Module Assembly

    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



    ♦ Product specification

    indoor SMD P3.91
    Lamp size 2121
    Resolution/mm 3.91
    Pixel configuration RGB 3 in 1
    Pixel density/pixels/m² 65410/m²
    Module resolution 64x64
    Module size/mm 250x250
    View distance ≥2m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >2500cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 14 bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
    Driving mode Constant driving current
    Scanning mode 1/16
    Frame rate 60Hz
    Refresh frequency >3000Hz
    Control mode Computer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡ <1100W
    Average power:/㎡ <280W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%





    About us:

    Established in 2005, clients cover more than 50 cuntries, Mainly USA, Europe, dubai, north and mid america, south america, asia. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service. Even face with harshest environment,we can carefully choose different suitable materials and make the best offer.

    Parameters

    Item P2.604 P2.97 P3.91 PH3.91 PH4.81
    Pixel Pitch (mm) 2.604 2.97 3.91 3.91 4.81
    Pixel Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
    LED Type SMD1515 SMD1515 SMD2121 SMD1921 SMD1921
    Pixel Density (dot/m²) 147456 112896 65536 65536 43264
    Module Size (W×H×D)(mm) 250x250 250x250 250x250 250x250 250x250
    Module Resolution (W×H) dot 96x96 84x84 64x64 64x64 52x52
    Cabinet Size(W×H×D)(mm) 500x500 500x500 500x500/500x1000 500x500/500x1000 500x500/500x1000
    Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
    Driving Method 1/32 1/28 1/16 1/16 1/13
    Flatness (mm) ≤0.10 ≤0.10 ≤0.10 ≤0.10 ≤0.10
    Gray Scale (Bit) 14 14 14 14 14
    Use Environment Indoor Indoor Indoor Outdoor Outdoor
    Waterproof Level IP45 IP45 IP45 IP65 IP65
    Maintenance Mode Front rear Front rear Front rear Rear Maintenance Rear Maintenance
    Brightness 700-900 700-900 800-1000 1000-3300 1000-3300
    Framing Frequency 50/60Hz
    Refresh Frequency 3840 HZ
    Supply Voltage 4.2 V low voltage power supply, low heat, stable white balance, good picture reduction; low power consumption, more energy saving

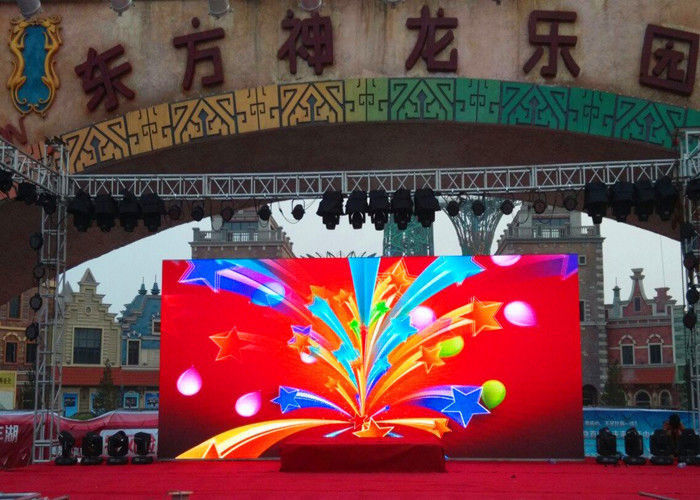

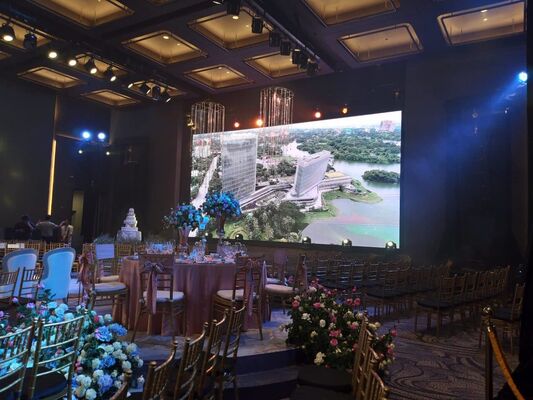

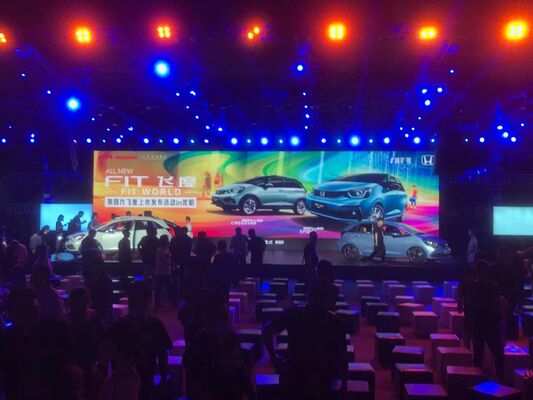

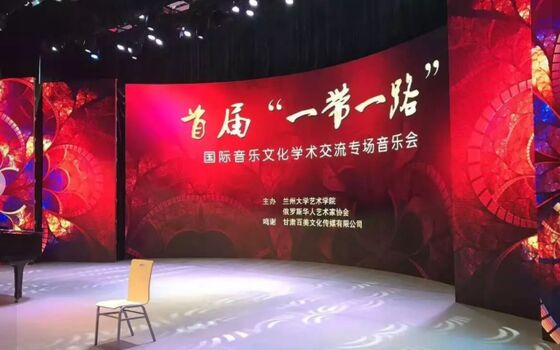

    Rental LED Project

    MPLED LED display have been exported to more than 100 countries and districts with more than 3000 successful projects, such as USA, CANADA,GERMANY,RUSSIA,UKRAINE,TURKEY, MIDDLE EAST, THAILAND,SINGAPORE,INDONESIA, SOUTH KOREA,MEXICO,ARGENTINA etc.

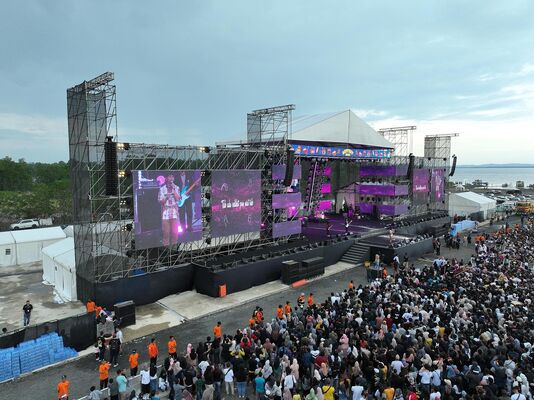

    MPLED outdoor rental led display mainly used for commercial promotion,exhibition, concert, wedding ceremony
    and other outdoor events.

    3.91 SMD HD Screen Full Color Indoor Led Video Panel Led Display3.91 SMD HD Screen Full Color Indoor Led Video Panel Led Display

    ♦ Packaging and shipping

    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.



    ♦ Why choose us:

    Continues Quality

    With more than 10 years experience in led display producing,equipments are updated regularly.What’s

    more,unique standardized and module production ensure our products continuous quality.



    Competitive Price

    With large scale production capacity and professional production technology,our company have built

    effective modular production.We always stick to promote the technical innovation and reduce cost to

    benefit customers.



    Fast Delivery

    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

    inventory will be used to maintain your uninterrupted supply of the products.



    Perfect Service

    Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

    you.

    After-sales:We will track the products usage and then constantly perfect our products.
