Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Minimum Order Quantity: | 1 Square Meter |
|---|---|
| Price: | negotiaton |
| Packaging Details: | flight case, plywood case, you choose what you like. |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Supply Ability: | 5000sqm per month |
| Model Number: | P4 | Pixels: | 64*32dots |
|---|---|---|---|
| Module Size: | 256*128mm | Pixel Density: | 62500/m² |
| Brightness: | 1000cd/m2 | Pixel Configuration: | 1R1G1B |
| Warranty: | 3 Years | ||
| High Light: | led full color screen,indoor led billboard |
||
Full color indoor P 4 LED display pixel 64*32 dots mounted on the wall
Product description
As we all know our human is an visual creature ,everyone enjoy this beautiful and colorfu world l, and led display screen can provide pelope much more Visual enjoyment,then p4 led display is one high density and quality product of it,let’s start a visual feast together!
Application direction
Widely be used to enterprise meeting room/ hotle lobby/the mall etc which one can play movies/adversiting/video or show beautiful picture etc.
Indoor led display technical parameter
Module parameter
4mm |
|
| Pixels | 64*32dots |
| Module size | 256*128mm |
| Pixel configuration | 1R1G1B |
| Pixel density/m² | 62500 |
| Driving mode | Constant current 1/16 scanning |
| Cabinet material | Die-cast aluminum |
| Cabinet size | 512*512mm |
| LED specification | smd2121 |
| Brightness | >1500cd/m² |
| Best perspective | 120°/120° |
| Best viewing distance | ≥4mm |
| Maximum power:/㎡ | 750W |
| Average power:/㎡ | 250W |
| Voltage | 5V40A |
| Storage temperature | -40℃～ +85℃ |
| Relative humidity | 10%～95% |
| Working temperature | -10℃～+50℃ |
| Lifespan | 100000 hours |
| Mean Time Between Failure | ≥10000 hours |
| Gray scale | 65536 level arbitrary |
| Frame rate | ≥500Hz |
| Image refresh | ≥60Hz |
| Bright adjustment | Automatic / manual ≥ 256 level |
Cabinet Parameter:
| Cabinet size | 512*512mm |
| Cabinet material | die-casting aluminum cabinet |
| Cabinet weight | 5.5kg+/-0.05kg |
| Cabinet resolution | 128*128dots |
| Ingress protection | Front/Rear IP65/IP54 |
| Pixel density | 62500dots/m² |
| Brightness | ≥6500cd/m² |
| Viewing angle | H110° V120° |
| Min.viewing distance | 4m |
| Max.power consumption | 1000W/m² |
| Avg.power consumption | 400W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥60Hz |
| MTBF | ≥10000 hours |
| Lifespan | ≥100000 hours |
| Protective function |
Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way |
Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

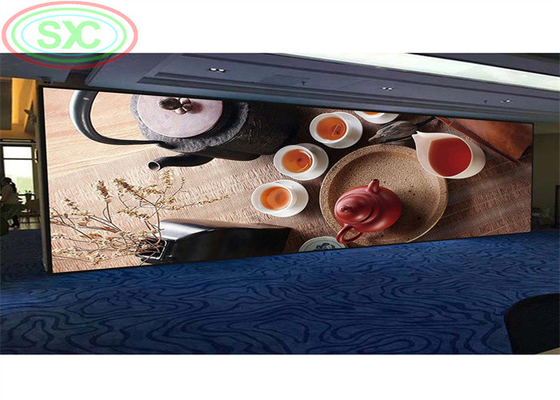

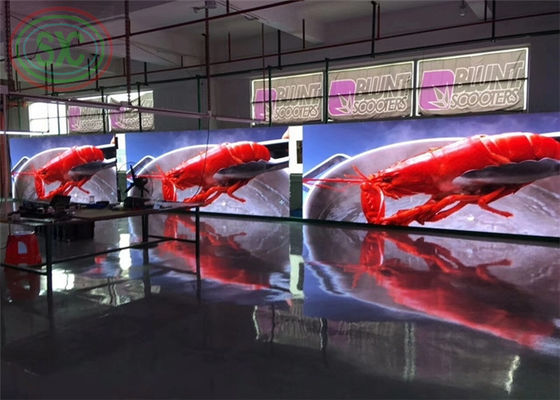

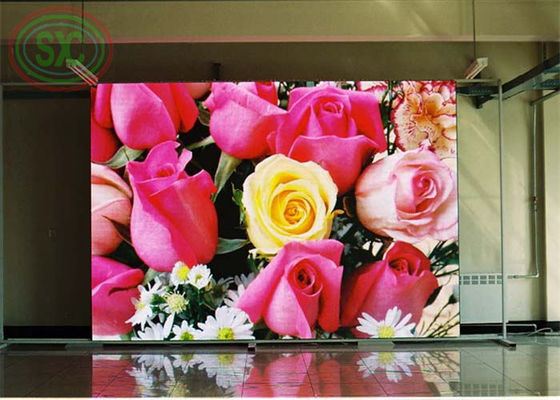

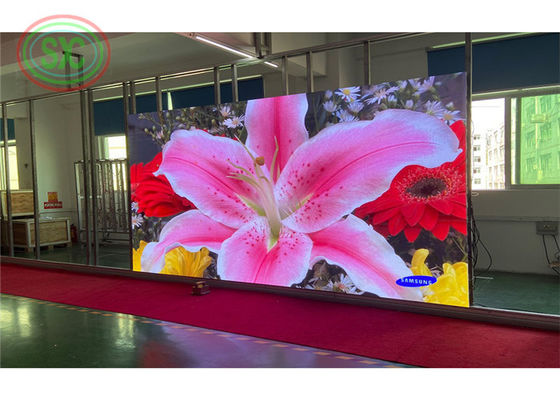

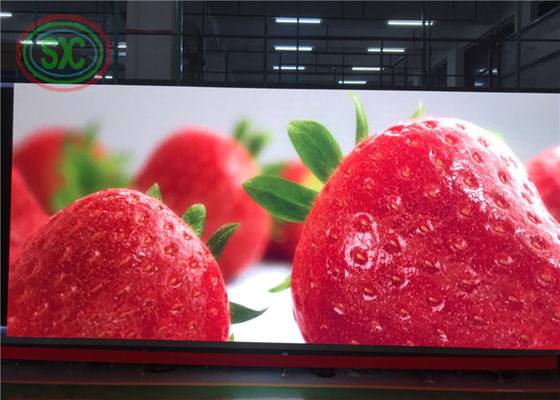

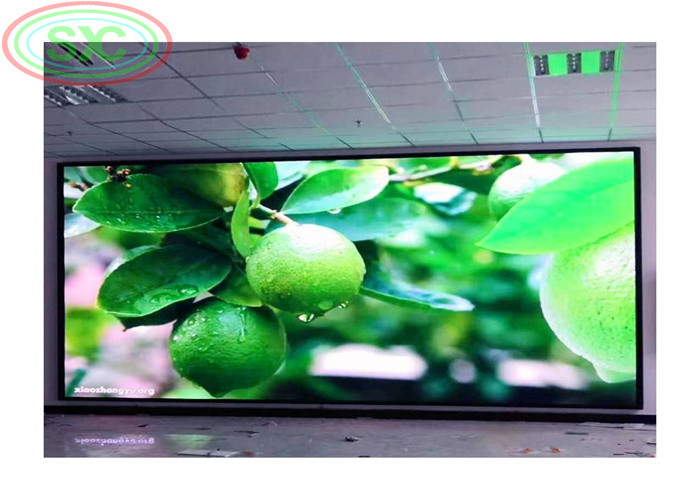

Carbinet photo exhibition
company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
