Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P2.5 |
| Minimum Order Quantity: | 12 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5600 sqm month |
| Application:: | Commercial Advertising | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 640*640mm | Pixel Pitch:: | 2.5mm |
| Brightness:: | 800cd/sqm | Life Span:: | 100000hours |
| LED Chip:: | Epistar | Refresh Rate:: | 3840Hz |
| Pixel Density:: | 160000 Dots/sqm | Cabinet Material:: | Die-Casting Aluminum |
| High Light: | indoor led billboard,indoor led display screen |
||
SCX LED Indoor Live Stage Event Church Background Rental 4K HD Display Screen Billboard P2.5 LED Video Wall
♦ Small Pixel LED Screen for Clearer Pictures
The Small Pixel LED Display features small pixel modules which presents clearer and vivid images even in low brightness and dark days. The display is suitable for various applications including security monitoring center, scheduling command platform, smart city, television studio and high-end meetings.
♦ Product specification
| indoor SMD P2.5 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 2.5 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 160000/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 160x160 | |||||||||||||
| View distance | ≥1m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2500cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/32 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <380W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

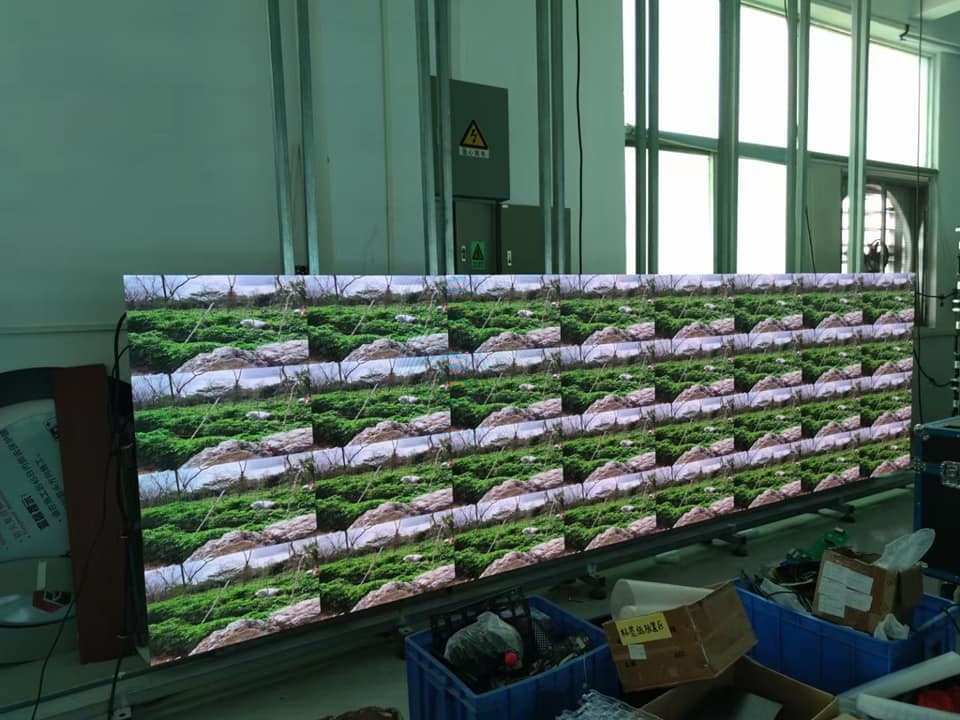

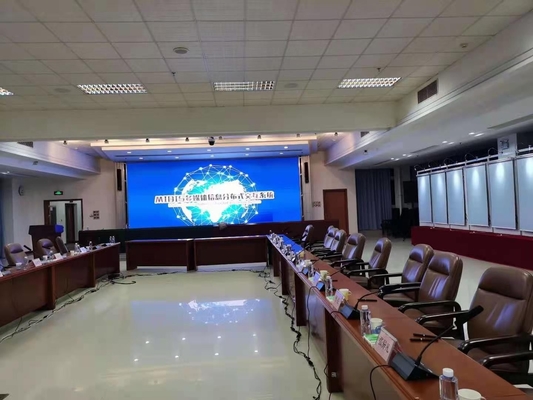

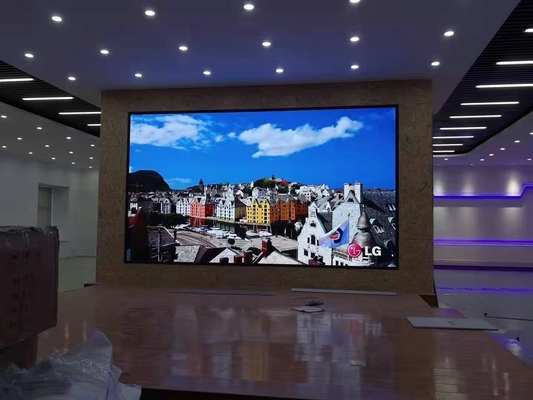

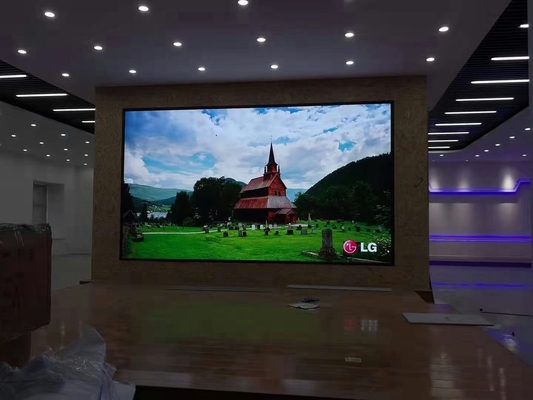

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
1. Delivery time: Accomplish manufacturing within7- 10 days after receiving the deposit.
2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
3.Package:(1)carton (2) anti-shaking wooden case (3) flight case
workshop
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
