Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P2.5 |
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | neogtiation |
| Packaging Details: | flight case. |
| Delivery Time: | 5-10 working day. |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month. |
| Pixel Pitch: | 2.5mm | Pixel Configuration: | 1r1g1b |
|---|---|---|---|
| Pixel Density: | 160000dots/m2 | Module Size: | 160x160mm |
| Cabinet Size: | 640x640mm | Cabinet Material: | Die-casting Aluminum |
| Brightness: | ≥1500cd/m2inum | Driving Mode: | 1/32 Scan |
| High Light: | indoor led display screen,indoor led billboard |
||

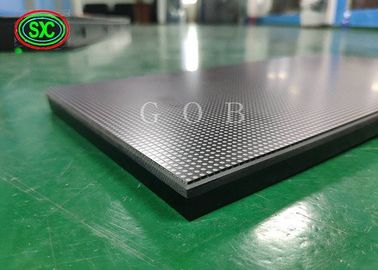

GOB indoor P2.5 led display with waterproof/dust-proof/damp-proof/anti-UV/anti-collision
Product Features
1) Reliable quality, advanced and mature technology, compliant with industrial standards and technology developing trend.
2) Good heat emission, water proof/dust-proof/damp-proof/anti-UV/anti-collision
3) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal.
4) High resolution and definition of screen image, clear and non-flash screen image.
5) Supports video and radio frequency input, special structure can be freely assembled.
Module Parameter:
| Pixel pitch | 2.5mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 320x160mm |
| Module weight | 0.25kg |
| Module resolution | 128*64dots |
| Module quantity per cabinet | 8pcs |
Cabinet Parameter:
| Cabinet size | 640x640mm |
| Cabinet material | die casting aluminum |
| Cabinet weight | 6.8kg+/-0.05kg |
| Cabinet resolution | 256x256dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 62500 dots/m² |
| Brightness | ≥1500 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 2.5m |
| Max.power consumption | 800W/m² |
| Avg.power consumption | 280 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥600Hz |
| MTBF | ≥10000 hours |
| Lifespan | ≥50000 hours |
| Protective function |
Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

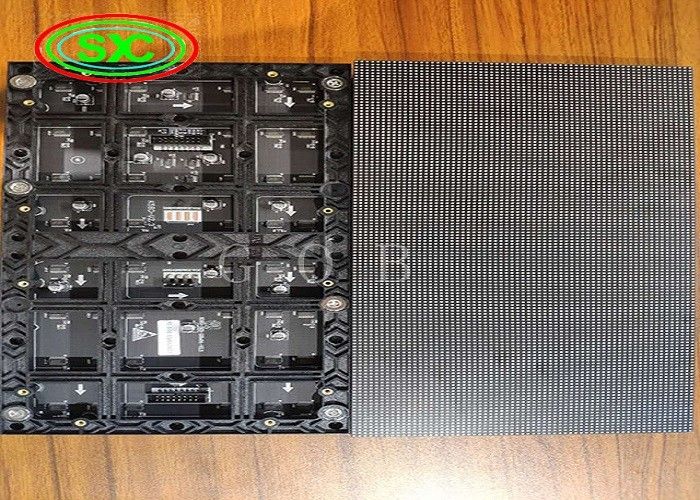

Cabinet photo

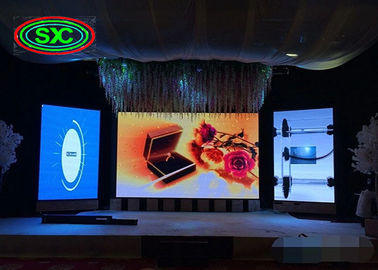

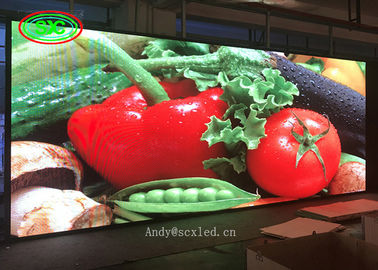

Total installation effect
Product parmeter
Company profile
Certificate
Packaging and shipping
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need
Contact details
Salesman: Andy
Skype: Andy liu Wechat:15797878183
Tel:+86-15797878183(whatsapp)
E-mail:Andy_he@scxled.cn
Web: www.rgbleddisplays.com or www.scxled.com
Save your time and money with us!
