Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P5 |
Minimum Order Quantity: | 1 sqm |
---|---|
Price: | negotiations |
Packaging Details: | flight case or wooden case. |
Delivery Time: | 7-10 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5000sqm per month |
Module Size: | 320x160mm | Pitch: | 5mm |
---|---|---|---|
Pixel: | 64x32dots | Pixel Configuration: | 1r1g1b |
Pixel Density: | 40000/m2 | Driving Mode: | Constant Current 1/16 Scanning |
Cabinet Size: | 640x640mm | Warranty: | 3 Years |
High Light: | P5 Indoor LED Display Panel,1r1g1b Indoor LED Display Panel,1r1g1b led wall display |

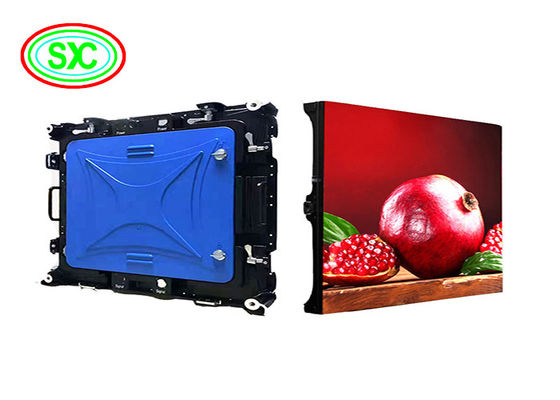

P5 Die Casting Aluminum Cabinet Indoor Rental Led Display Screen/Hanging Installed Screen
Welcome to visit our web:www.scxled.cn
Product description:
1. The first level LED chip from Taiwan Epistar.
2. With pure golden wire connection in LED.
3. Grand A row material for module frame and mask.
4. 4 layers PCB and copper plating thickness > 18mil.
5. Ag alloy solder paster to ensure good soldering on PCB.
6. Stainless steel screws when assembly.
7. Disassembly and assembly are quick and easy.
8. Three years warranty.
Widely used in the indoor environment , such as hall, TV studio, hotel, theater ,meeting room, school , hospital, gymnasium, advertising, bar and restaurant etc., to display text , graphic, picture and video etc.
Indoor full color led display screen technical parameter | |
Items | P5 indoor led display |
Pitch size | 5mm |
Module size | 320mm*160mm |
Module pixel(dots) | 64dots*32dots |
Pixel configuration | 1Red,1Green,1Blue |
LED chip | Epistar |
Color scale | 65536degree/16777216colors |
Pixel density | 40000pixels/square meter |
View angle(H/V) | ≥120/120degree |
Brightness | ≥1200cd/square meter |
Brightness adjustment | 64 level automatic or manual |
View distance | 5--100m |
Power consumption | 350-950W/square meter |
Net weight | less than 45kg/square meter |
Operating temperature | —25°C~+60°C |
Operating humidity | 10%—95%RH |
Life time | ≥100,000hours |
Out of control dot | ≤1/10,000 |
Whole Display Flatness | ≤1mm Juncture |
Exchange frame speed | >150frames per second |
Refresh frame frequency | 600Hz |
Control distance | 120m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
Power | 110V/220V±15% 50Hz |
Operating system | Windows98/Me/2000/Xp |
Drive mode | constant current driving, 1/8 scan |
Display mode | VGA640X480—VGA1600X1024 |
Protections for outdoor display | IP54 |
Maintenance way | Rear access |
Accepting signal | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
Installation detailed show
Product item
Many other hot product, welcome to visit our company!
Company profile
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Buying Guides
In order to offer you a suitable solution, please follow the guides bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
FAQ
Q1. Can I have a sample order for Indoor Full color LED Advertising Display?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Our average Production time is 7-10 days, after receiving the deposit.we will try our best to meet your demands
Q3. Do you have any MOQ limit for Indoor Full color LED Advertising Display order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Indoor Full color LED Advertising Display?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on Indoor Full color LED Advertising Display product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q:Why Choose us?
We are direct factory manufacturer for led display, so quick delivery is no problem.
More professional, best service,100% QC inspection before shipment.
