Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCX |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMDP3.91 |
| Minimum Order Quantity: | 10SQM |
|---|---|
| Price: | negotiation |
| Packaging Details: | Flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 3-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 6300 sqm month |
| Application:: | Live Events Led Display | Refresh Rate:: | 1920hz |
|---|---|---|---|
| Cabinet Size:: | 500x500mm ,500mmx1000mm | Certificate:: | CE RoHS UL Certifications |
| Name: | Stage Background LED Display Big Screen 3.91mm LED Video Wall | Life Span:: | 100000 Hours |
| Warranty:: | 5 Years | Power Supply:: | Meanwell |
| Display Function:: | Video | Usage:: | Outdoor/indoor |
| High Light: | 280W LED Stage Backdrop Screen,P2.976 LED Stage Backdrop Screen,2500cd/㎡ Stage Background Led Screen |
||
♦ Product specification
| indoor SMD P3.91 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 3.91 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 65410/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 250*250 | |||||||||||||
| View distance | ≥0.5m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2500cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/32 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1000W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

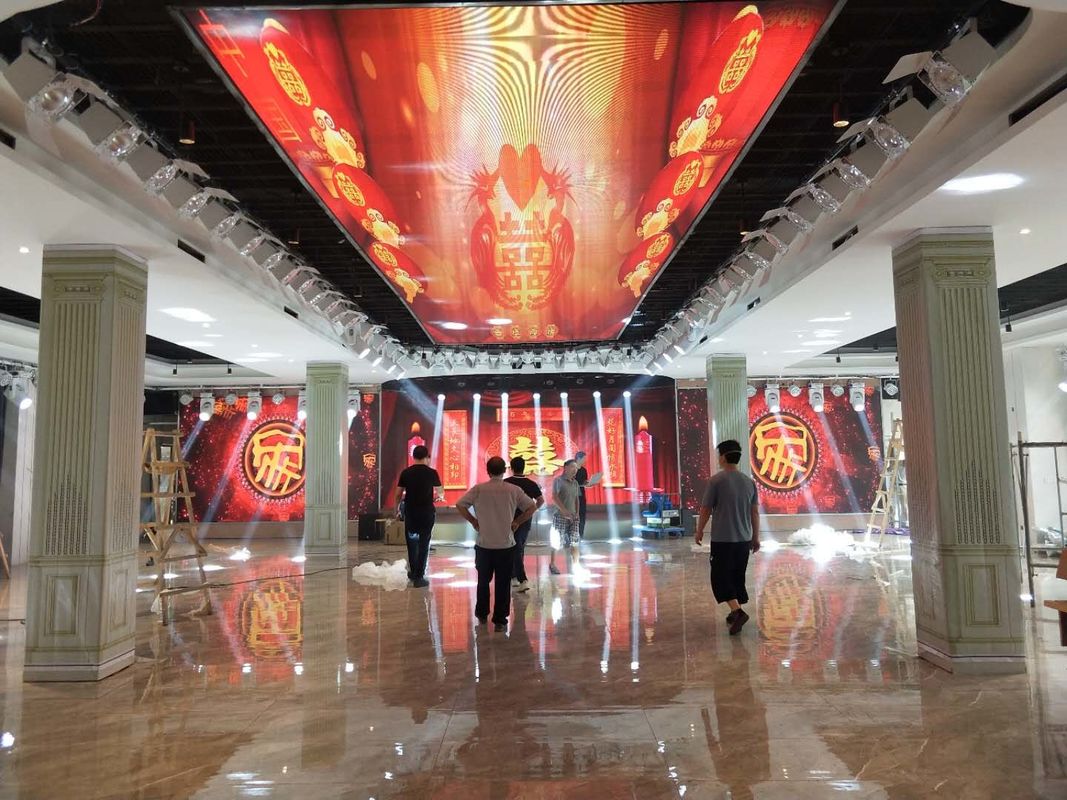

Our case
Packing & Shipping
Our products usually taking three kinds packaging. Carton, plywood case and flight case. Normally modules using carton. Fixed install cabinets using plywood case. Rental use cabinets using flight case. Depends on customer’s choice.
Shipping has ocean freight, air freight and express delivery. Ocean freight: Big transport volume, cheap. Extending in all directions. Air freight: Fast, efficient, safe and convenience. Express delivery: Fast, efficient, safe and convenience. Depends on customer’s choice.
About us
Shenzhen SRYLED Photoelectric Co.,Ltd (SRYLED LIMITED) is a high & new technology enterprise. We are specialized in high quality LED components, LED displays products including research, development, production and marketing. Experienced with many years of development, nowadays SRYLED LIMITED owns its factory workshop area about 3,000sqm, monthly capacity is 2,000sqm, number of employees more than 100. Company has the international first-class technology development talents and advanced production equipments, a comprehensive standardized management and perfect production process.
1. Advanced Production Equipments
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
