Indoor/outdoor stage led screens hd full color rental use led panels P2 P2.5 P3 p3.91 p4.81 500x500mm cabinet

Indoor/outdoor stage led screens hd full color rental use led panels P2 P2.5 P3 p3.91 p4.81 500x500mm cabinet

  • Indoor/outdoor stage led screens hd full color rental use led panels P2 P2.5 P3 p3.91 p4.81 500x500mm cabinet
  • Indoor/outdoor stage led screens hd full color rental use led panels P2 P2.5 P3 p3.91 p4.81 500x500mm cabinet
  • Indoor/outdoor stage led screens hd full color rental use led panels P2 P2.5 P3 p3.91 p4.81 500x500mm cabinet
  • Indoor/outdoor stage led screens hd full color rental use led panels P2 P2.5 P3 p3.91 p4.81 500x500mm cabinet
Indoor/outdoor stage led screens hd full color rental use led panels P2 P2.5 P3 p3.91 p4.81 500x500mm cabinet
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE,ROHS,FCC,SASO,CB,IECEE,SABER,PC
Model Number: P2.5
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Flight Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm
Delivery Time: 10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sqm per month
Contact Now
Detailed Product Description
Module Size: 160mm X 160mm Module Resolution: 64mm X 64mm
Brightness: ≥1300CD/M2 Pixel Density: 160000
Driving Method: 1/16 Scanning Contrast Ratio: ≥3000:1
Viewing Angle: Horizontal 140° Vertical 140° Gray Scale: 16384
High Light:

1300CD/M2 Full Color LED Display

,

IP40 Full Color LED Display

,

650W/M2 Indoor LED Video Wall

Indoor/outdoor stage led screens hd full color rental use led panels P2 P2.5 P3 p3.91 p4.81 500x500mm cabinet



Stage Led Screen Features

* Super-High refresh frequency: super-high refresh frequancy, better and smoother picture

coherence.

* Ultra-high Grey level: the Grey level is still excellent under low brightness; the screen is exquisite

and realistic.

* Ultra-HD: Unique image quality enhancement technology, to effectively improve the image

clarity;high-speed picture is still smooth without smearing.

* 3D: Integrated 3D, touch screen and somatosensory games enhance the entertaining and interaction.



Stage Led Screen Specifications



Model P2.5
Pixel pitch (mm) 2.5
Physical density (dot / m2) 160000

White balance brightness

(CD / m2)

800-1000
Frame frequency (HZ) 60
Refresh frequency (HZ) 3840
Grey level / color 16BIT/281 trillion

Viewing angle

(horizontal, vertical)

160°/160°
Optimal sight distance 7.5m
Power (W) <650W/m2
Panel dimension (mm) 640*640
Panel resolution (Pixels) 256*256
Operating voltage (AC) 220V ± 10% / 50HZ or 110V ± 10% / 60HZ
Drive mode 32S constant current
Signal type

Compatible with PAL / NTSC / SECAM format, support for SVideo;

VGA; RGB; Composite Video; SDI; DVI; RF; RGBHV; YUV; YC, etc.

Working temperature Storage -35℃~ +85 ℃
Working temperature Work -20℃~ +50℃
Control distance Cat 5 cable: <100m; single-mode fiber: <10 km

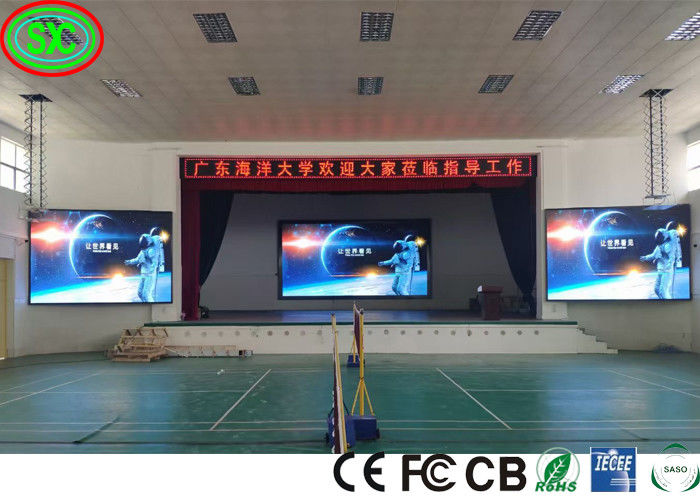

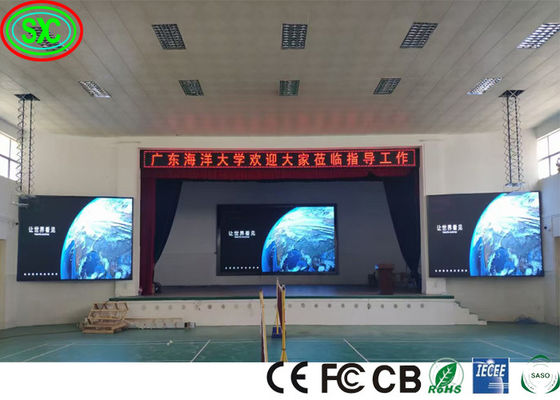

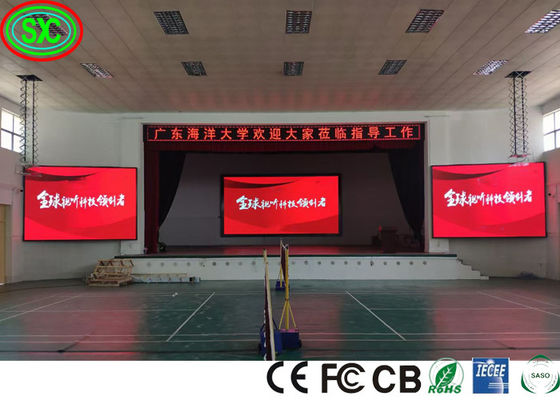

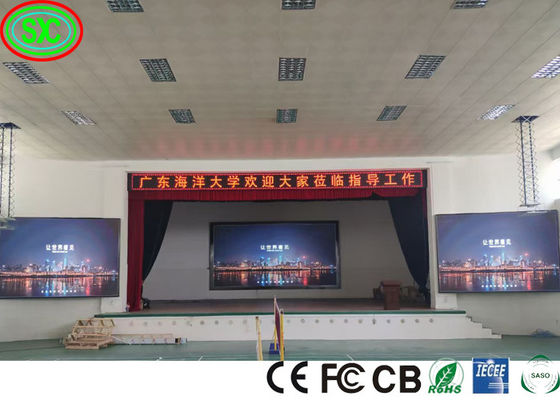

Stage Led Screen  Details



Indoor/outdoor stage led screens hd full color rental use led panels P2 P2.5 P3 p3.91 p4.81 500x500mm cabinet 0



Indoor/outdoor stage led screens hd full color rental use led panels P2 P2.5 P3 p3.91 p4.81 500x500mm cabinet 1



Indoor/outdoor stage led screens hd full color rental use led panels P2 P2.5 P3 p3.91 p4.81 500x500mm cabinet 2





Our Factory



Indoor/outdoor stage led screens hd full color rental use led panels P2 P2.5 P3 p3.91 p4.81 500x500mm cabinet 3



Our Services



Training Free of charges;In our workshop, we provide all the training including process of operation, installation, maintenance, system set up, etc.
Warranty

1, 2years, .From beginning of installation finished the led display, During it , we will be responsible for all the quality problem.
2, After the completion of the project, we will conduct life maintenance of the system continuously and update the and software.
3, For the hardware equipment, we only collect expenses on components.

Guarantee

1, All the life time for Technology support , system update ,maintenance .
2, We guarantee that the equipment we provide are brand new, complete and unused before delivery .

Remark



1. We are manufacturer of LED display. We only provide the Screen, Cabinet and module,
but do not take charge for the installation in overseas; Technical support is available.
2. The above offer included the cabinet, power supply, power cord,and other basic components; etc.
3. The above offer do NOT included the delivery, insurance, installation and debugging cost;
4. Packing with Ply-wood box, or Carton ; If need flight case packing, up cost will be USD180/PC, 2-4cabinets/case
5.Problems during use.
some spare parts for you, once the screen get problems, please follow up below steps to solve it:
Step1: Take some pictures about the working status of the screen;
Step2: Replace the broken cabinet by the new cabinet;
Step3: Contact with us, and send the pictures to us, we will help you to analyze the problems.
Step4: If it is necessary, please post it to our company, we will maintain it for you as soon as possible, and then deliver it to you.



FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
