Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCX |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P4 |
| Minimum Order Quantity: | 16sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case or flight case are available. |
| Delivery Time: | 5-17 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 4600 sqm per month |
| Application:: | Play Videos And Images | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 512mmx512mm | Module Size:: | 256*128mm |
| Refresh Rate:: | 3840Hz | Pixel Pitch:: | 4 Mm |
| Pixel Density:: | 62500dots/sqm | Power Supply:: | Meanwell |
| Warranty:: | 3 Years | Brightness:: | 1500cd/sqm |
| High Light: | 800cd/Sqm Stage Background Led Panel,1R1G1B Stage Background Led Panel,IP54 Stage LED Video Wall |
||
Indoor Hd Rental Usa Ultra Light P4 Full Color 512X512mm Die-Casting Aluminum Cabinet Led Display Screen Module
Module Parameter:
| Pixel pitch | 4mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 256x128mm |
| Module resolution | 64*64dots |
Cabinet Parameter:
| Cabinet size | 768x768mm |
| Cabinet material | simple ironed steel cabinet |
| Cabinet weight | 12.5kg |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 62500 dots/m² |
| Brightness | ≥1500 cd/m² |
| Viewing angle | H≥140° V≥140° |
| Min.viewing distance | 4m |
| Max.power consumption | 750W/m² |
| Avg.power consumption | 300W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | >1000frames |
| Refresh rate | >1920Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥100,000 hours |
| Operating temperature | -10℃ ~ +40℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.

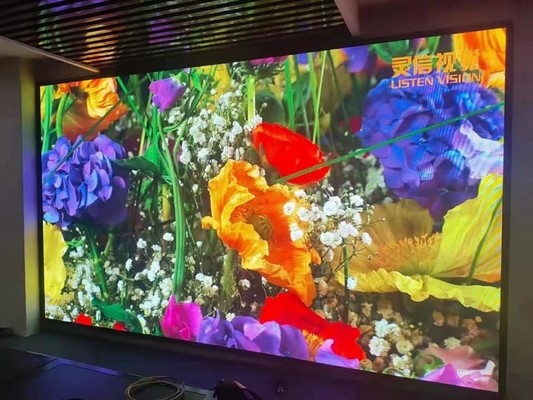

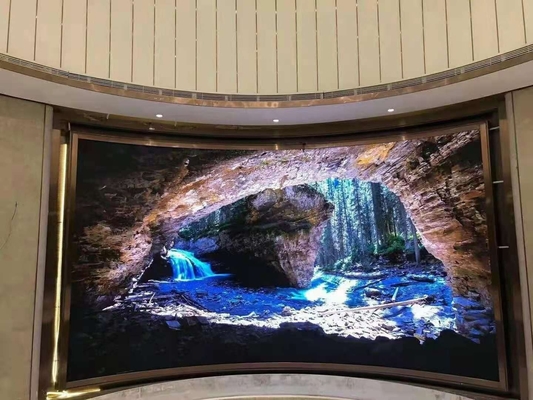

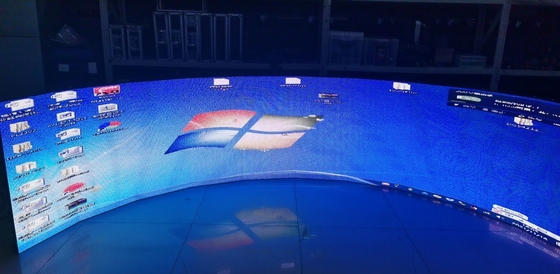

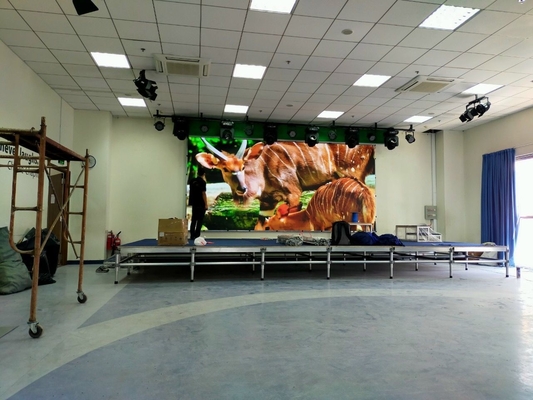

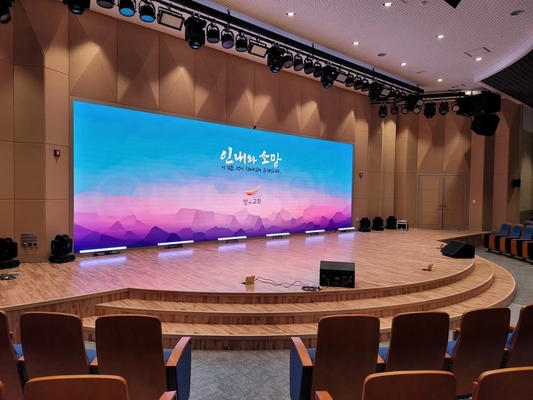

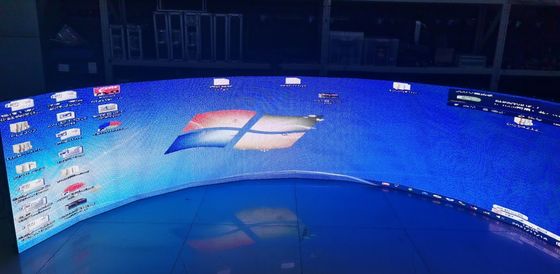

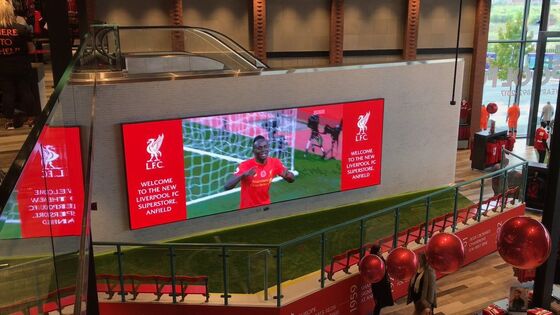

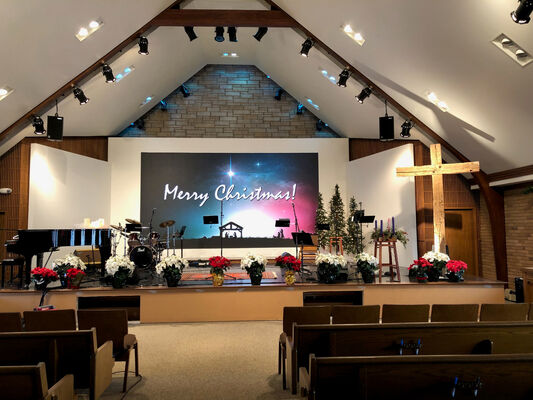

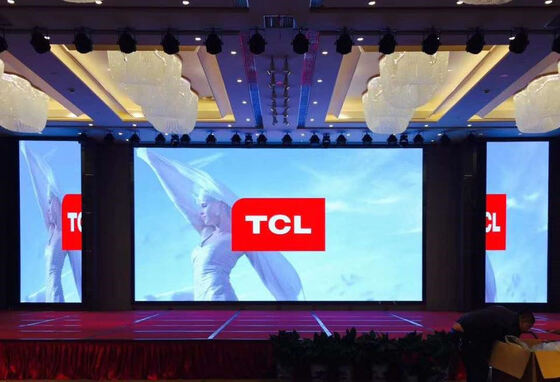

Our case
We have an excellent customer service system with a well-trained, strong and skilled service team to provide customers with a comprehensive pre-sales service, product services and after-sales service.
Our customer service department has more than a dozen highly skilled and experienced technical support engineers, who are all in charge of the technical support of all LED display products we provide all over the world.
We are continuously improving upon our level of service and quality to quickly and effectively meet customer needs and guarantee their benefits and interests.
Service Concept
We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.
Service Content
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
Warranty Period
Each of our LED display products comes with at least three years warranty and a lifetime maintanance services.
