Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P2.5 |
| Minimum Order Quantity: | 17 sqm |
|---|---|
| Price: | negotation |
| Packaging Details: | plywood case, flight case, you choose what you like. |
| Delivery Time: | 7-12 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 3600 sqm per month |
| Application:: | Advertising Led Video Wall | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 640*640mm Or Customized | Pixel Pitch:: | 2.5mm |
| Module Size:: | 320mm*160mm | Cabinet Dimension:: | 640*640mm Or Customized |
| Module Resolution:: | 128x64 Dots | Function: | Display Video |
| IC Chip:: | MBI 5124 Ic Or Customized | ||
| High Light: | IP54 Indoor Full Color LED Display,480*480mm Indoor Full Color LED Display,3840Hz full color led display board |
||
Popular used inCinemas,big show ,equipping discos, theaters, museums are openly to attract eyes with led sign
in thecolorful way.Visitors involved in a new experience with direct viewing effect. LED is brighter with more colors
than LCD.Our LED Screen has multiple functions: in addition to informing about news, programs and more with
moving images,they are an excellent tool for attracting and promotion.
With the management software provided by novastar,linsn,huidu ,it is also possible to program different schedules
following the desired programming.
Module Parameter:
| Pixel pitch | 2.5mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 160*160mm |
| Module resolution | 64*64dots |
Cabinet Parameter:
| Cabinet size | 480*480mm |
| Cabinet material | die-casting aluminum cabinet |
| Cabinet weight | 9.73kg+/-0.05kg |
| Cabinet resolution | 192*192dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter:
| Pixel density | 160000dots/m² |
| Brightness | ≥1200cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 3m |
| Max.power consumption | 900W/m² |
| Avg.power consumption | 400 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥60Hz |
| MTBF | ≥10000 hours |
| Lifespan | ≥100000 hours |
| Protective function |
Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way |
Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

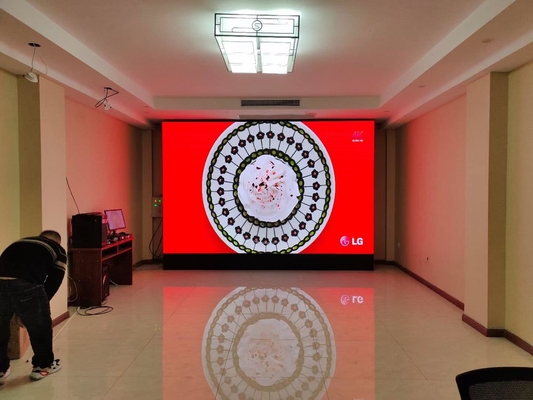

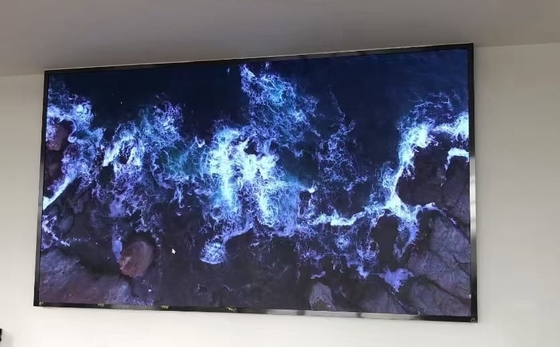

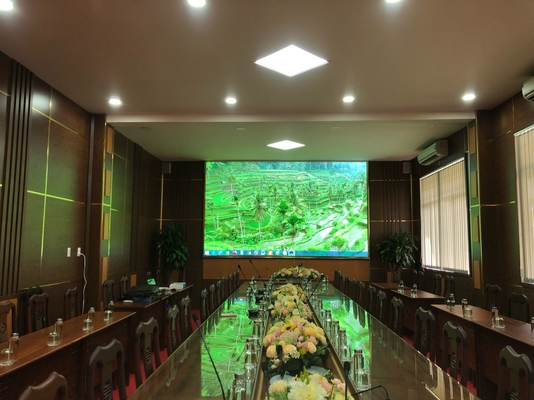

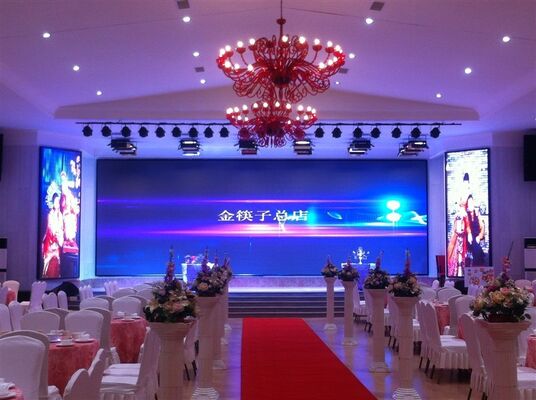

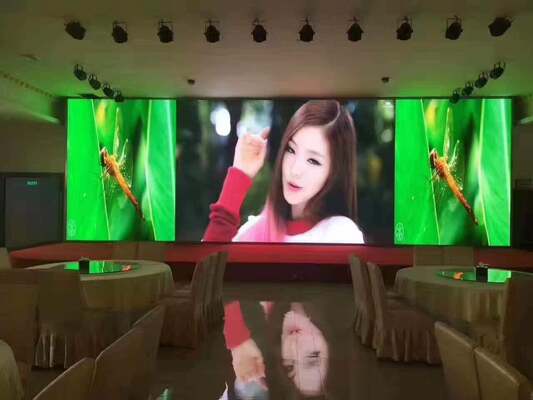

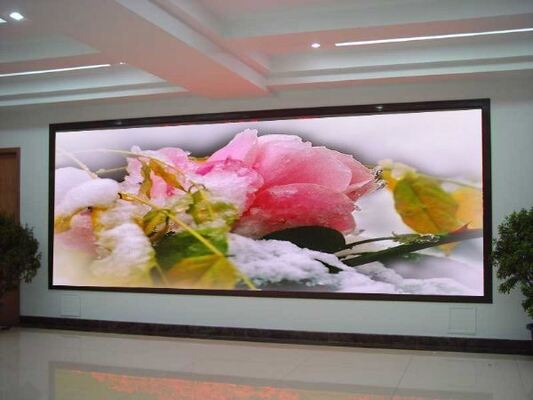

Our case
company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
