Shenzhen Shichuangxinke Electronics Co.,Ltd

professional makes good quality, provide perfect product and service  for every customer.

Home ProductsStadium LED Display

Outdoor P10 16X32mm Stadium LED Display For Football

Outdoor P10 16X32mm Stadium LED Display For Football

Outdoor P10 16X32mm Stadium LED Display For Football
Outdoor P10 16X32mm Stadium LED Display For Football
Outdoor P10 16X32mm Stadium LED Display For Football
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL/CB
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 10 sqm
Price: negotiation
Packaging Details: wooden case or flight case are available.
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5600 sqm per month
Contact Now
Detailed Product Description
Application:: Football Stadium, Football Stadium Basketball Natatorium Match Color:: Full Color
Panel Size:: 960*960mm Pixel Pitch:: P10
Brightness:: 6500cd/sqm Certificate: CE ROHS,CB ,FCC
Life Span:: 100000 Hours Refresh Rate:: 2880hz~3840hz
Product Name:: Gsport Led Screen Control System:: Novastar
High Light:

16X32 Stadium LED Display

,

P10 outdoor led screen hire

,

16X32mm Stadium LED Display

SCX LED P10 outdoor full color waterproof football stadium perimeter led screen display

1. using the best quality led chip Nationstar or Kinglight,Quality assurance.
2.Thickened cabinet. Anti-collision design. Waterproof rating IP65.
3. More then 11years life time for the product.
4 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
5. 2-3years warranty and technology support for long-life.



Parameter specification

model P8 P10
Pixel unit module Pixel pitch(mm) 8 10
Pixel density (dots/sqm) 15625 10000
LED type SMD SMD
Module size(mm) W320xH160 W320×H160
Pixel composing RGB full color RGB full color
Pixel unit screen screen size(mm) 960*960mm 960*960mm
module Resolution (nits) 32*16 32*16
Cabinet structure Water-proof Water-proof
screen material Ironed steel cabinet Ironed steel cabinet
Protect degree IP65 front ,IP54 rear IP65 front ,IP54 rear
  Viewing distance(m) 8-100m 10~100m
Brightness(cd/sqm) ≥6000 cd/sqm ≥6000 cd/sqm
Power consumption (w/sqm) Max 850W/sqm ,Min 280W/sqm Max 600W/sqm ,Min 200W/sqm
Driving IC 1/4 scan MBI Brand Driver 1/4 scan MBI Brand Driver
Refresh rate(HZ) ≥960-2000 ≥960-2000
Viewing angel(c) H120 V120 H120 V120
Other parameter Image adjustment   contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
Image processing   Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc
Brightness uniformity   The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9
Gray   65536
Color temperature/contrast   Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need
Transmitting Distance   The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
Input Signal   RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
Control System   PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
Average No Failure Time 20000 hours 20000 hours
Life span 100,000 hours 100,000 hours
Out-of Control rate 0.0001 0.0001
To floor drain current Less than 3.5MA Less than 3.5MA
Control system Synchronized Synchronized
Operating Environment Temperature -20°C—65°C Optional -20°C—65°C Optional

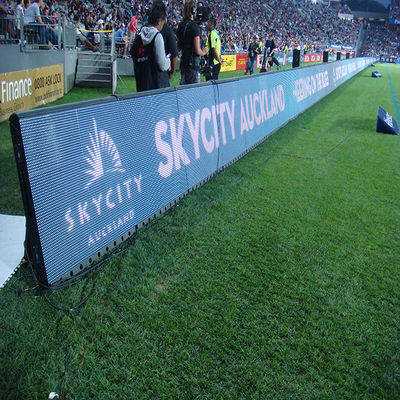

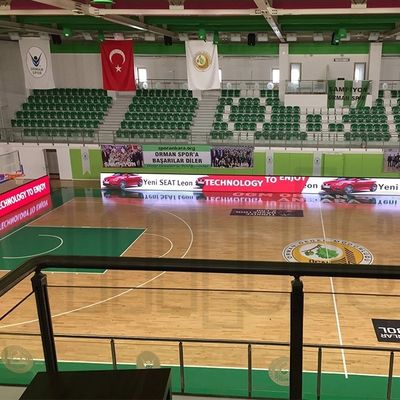

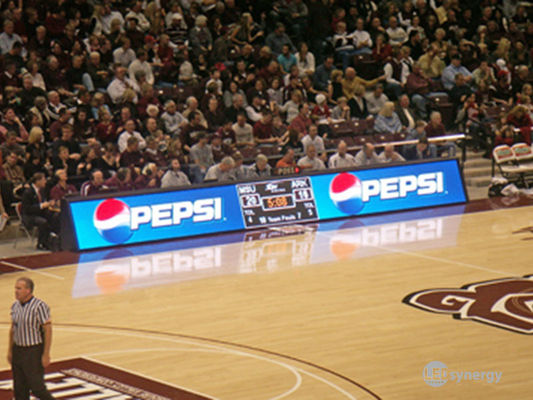

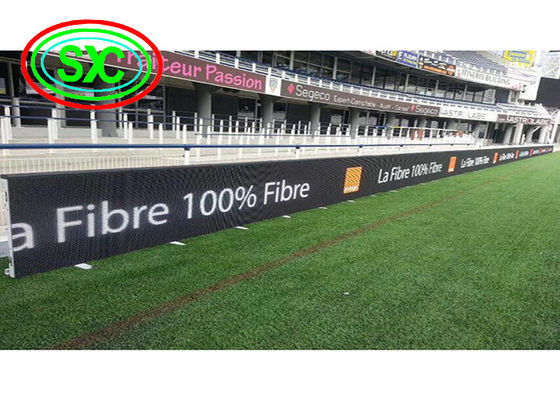

Case

Outdoor P10 16X32mm Stadium LED Display For Football 0

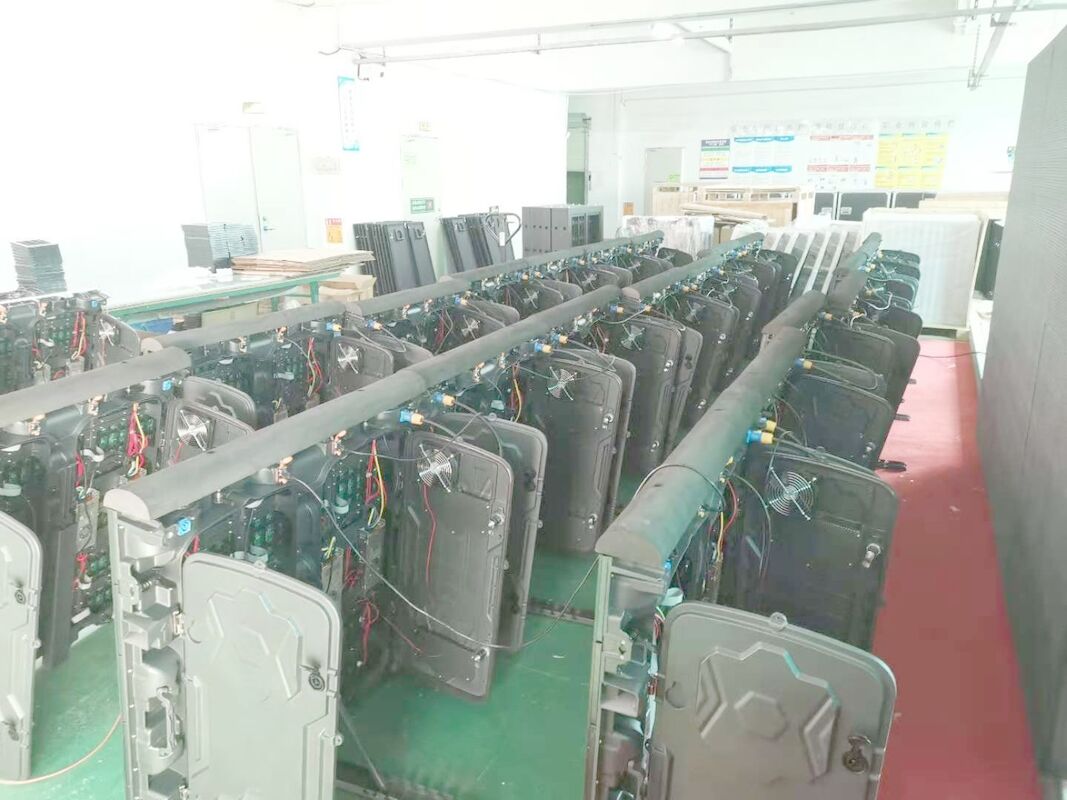

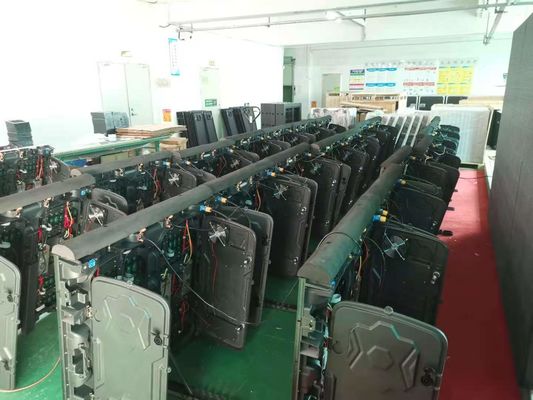

Company profile
Outdoor P10 16X32mm Stadium LED Display For Football 1


Certificate
Outdoor P10 16X32mm Stadium LED Display For Football 2

Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Outdoor P10 16X32mm Stadium LED Display For Football 3



Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.

Pre-sale service:

1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.


In-sale service:

1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:

1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
