Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P3 |
| Minimum Order Quantity: | 18 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case or flight case can be choose. |
| Delivery Time: | 7-16 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm per month |
| Application:: | Video | Color:: | Full Color, FULL COLOR |
|---|---|---|---|
| Model Number:: | Indoor P3 Led Display | Panel Size::: | 576mm X 576mm |
| Pixel Density::: | 111111 Pixels/sqm | Module Size::: | 192 X 192mm |
| Module Resolution::: | 64x64 Pixels | Power Supply::: | 110V~240V AC |
| Scan Mode::: | 1/32 Scan | ||
| High Light: | P3 LED Video Wall Display,576x576mm LED Video Wall Display,SMD2121 P3 RGB pixel panel |
||
SCX LED High Quality HD Full Color 1/32 Scan 576x576mm SMD RGB P3 Pixel Indoor LED Display Screen
We have an excellent customer service system with a well-trained, strong and skilled service team to provide customers with a comprehensive pre-sales service, product services and after-sales service.
Our customer service department has more than a dozen highly skilled and experienced technical support engineers, who are all in charge of the technical support of all LED display products we provide all over the world.
We are continuously improving upon our level of service and quality to quickly and effectively meet customer needs and guarantee their benefits and interests.
Service Concept
We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.
Service Content
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
Warranty Period
Each of our LED display products comes with at least three years warranty and a lifetime maintanance services.
Module Parameter:
| Pixel pitch | 3mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 192x192mm |
| Module weight | 0.35kg |
| Module resolution | 64x64dots |
| Module quantity per cabinet | 9pcs |
Cabinet Parameter:
| Cabinet size | 576x576mm |
| Cabinet material | die- casting aluminum |
| Cabinet weight | 7.5kg |
| Cabinet resolution | 192x192 dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 111111 dots/m² |
| Brightness | ≥1200 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 3m |
| Max.power consumption | 900W/m² |
| Avg.power consumption | 300 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥480Hz |
| MTBF | ≥100000 hours |
| Lifespan | ≥100000 hours |
| Protective function |
Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +60℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, internet etc. |

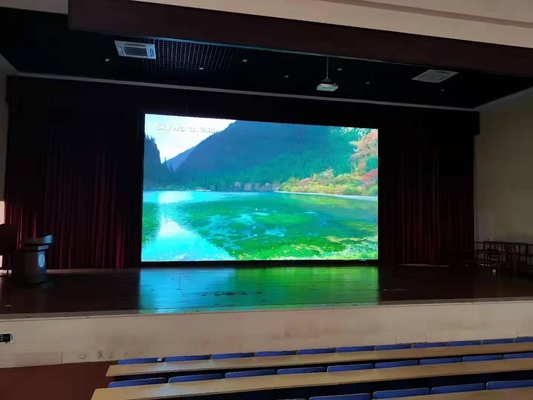

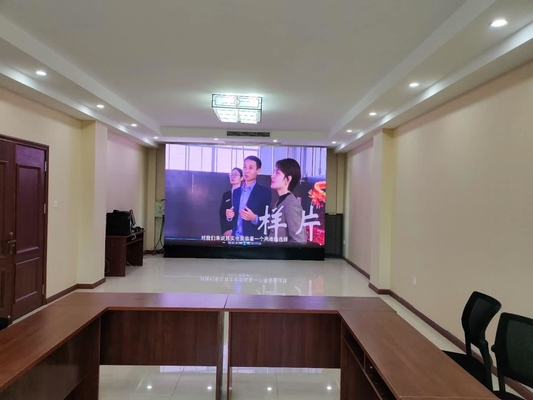

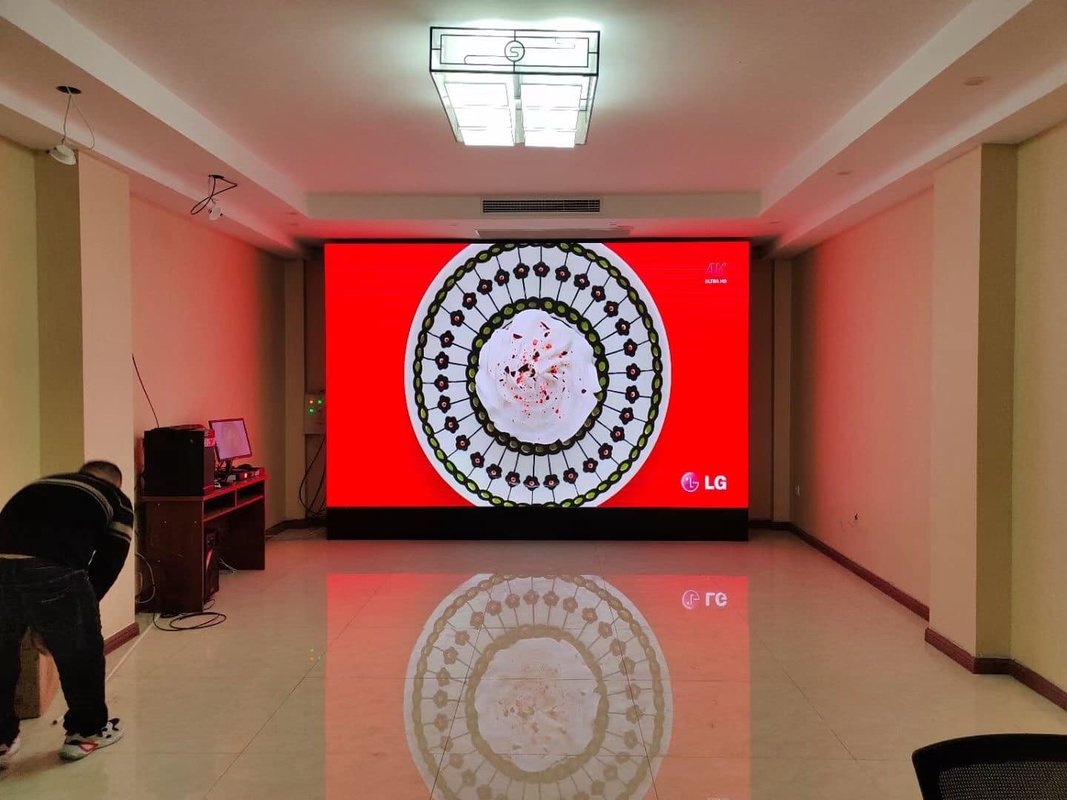

Our case
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Quality Guarantee
Quality Guarantee: High standard, precision and zero defects
Seeking Perfection
Quality supervision involves each procedure with scientific arrangement and production scheduling, which facilitates the long-run development of the company. Both the ISO9001 quality certification standard and the ERP system are strictly implemented on procurement and production of raw materials, as well as package and storage of semi-finished products and finished products. The purpose is to comply with the international standard and make products and services better. Strict quality control is the key for TEKVISION’s continuous development, and is the strong power for expansion.
Constant Perfection
Striving for perfection is the guarantee for our high-quality products. TEKVISION combines process management and attention to details for continuous innovation management and professional dedication, and incessantly guides all staff to explore new and creative quality management methods. Our Mission: Starting with meeting new challenges one at a time.
Three-Years Quality Guarantee
During the three-years warranty period, if the product is damaged under normal operating conditions, TEKVISION promises to take corrective measures to maintain consumers' interests.
FAQ
Q1. Can I have a sample order?
A: A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 12-25 days.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express (DHL, UPS, FedEx ). It usually takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for led display?
A: Firstly let us know your requirements or application, liking project size, rental or fixed installation.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the finished display cabinet.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
