Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P3.91 |
Minimum Order Quantity: | 10 sqm |
---|---|
Price: | negotiation |
Packaging Details: | plywood case,flight case, you choose what you like. |
Delivery Time: | 7-15 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5600 sqm per month |
Application:: | Outdoor, Live Events Led Display | Color:: | Full Color, Full-color |
---|---|---|---|
Panel Size:: | 500*500mm | Pixel Pitch:: | 3.91mm |
Product Name:: | Indoor / Outdoor Led Rental Display Stage Led Wall Panel P3.91 Led | Certificate:: | CE ROHS FCC |
Brightness:: | ≥4000cd/m2 | Life Span:: | 100000hours |
LED Chip:: | SMD2121black | ||
High Light: | P4.81 Stage Background Video Wall,4000cd/M2 Stage Background Video Wall,SMD2121 Removable LED Video Wall |
1. Light weight: per square box weighs only 24kg, single box weighs 8KG, single person can be a single hand, saving installation time;
2. Thin box: box with die casting aluminum, high strength, toughness, high precision, easy deformation, its thickness is only 80mm;
3. Screen Ping: surface flatness error less than 0.2mm, the effective elimination of mosaic;
4. Disassembly fast: the box is connected up and down with fast locking mechanism, pull the two handles 90 degrees to lock the two cabinet, 10s to complete a cabinet installation, high mounting accuracy. Enclosure and wiring connection fast and reliable, that is beautiful in appearance but also to achieve a real sense of the rapid disassembly;
5. Easy maintenance: modular design, installation and removal easy assembly Screen anywhere, simple to maintain
6. Tolerance: a new structure designed to meet the lifting of laminated requirements to meet indoor and outdoor requirements. Box single, compatible with a variety of pitch, indoor-outdoor module compatibility
7. High gray high refresh rate design,gradation 14 bit,refresh rate above 960Hz
8. Low excellent thermal design and cooling performance, without an external fan, air conditioning, low noise; light box weight, low installationcosts required; Low cabinet power consumption, saving operating costs.
Module Parameter:
Pixel pitch | 3.91mm |
Pixel configuration | 1R1G1B |
LED type | 3-in-1 SMD 2121 |
Module size | 250x250mm |
Module weight | 0.35kg |
Module resolution | 64x64dots |
Module quantity per cabinet | 4pcs |
Cabinet Parameter:
Cabinet size | 500x500mm |
Cabinet material | die- casting aluminum |
Cabinet weight | 6.5kg |
Cabinet resolution | 128x128 dots |
Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
Pixel density | 65410dots/m² |
Brightness | ≥1200 cd/m² |
Viewing angle | H≥120° V≥120° |
Min.viewing distance | 3.9m |
Max.power consumption | 890W/m² |
Avg.power consumption | 330 W/m² |
Working voltage | 110~220VAC±15% |
Interface | HUB75 |
Colors | 16.7millon colors |
Gray level | 65536 |
Refresh rate | ≥1920Hz |
MTBF | ≥50000 hours |
Lifespan | ≥100000 hours |
Operating temperature | -10℃ ~ +60℃ |
Storage temperature | -20℃ ~ +60℃ |
Control System Parameter:
Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
Color temperature | Adjustable by software |
Brightness level | 256 levels, automatic adjustment by software |
Control way | Computer, video-synchronous, real-time, off-line, internet etc. |

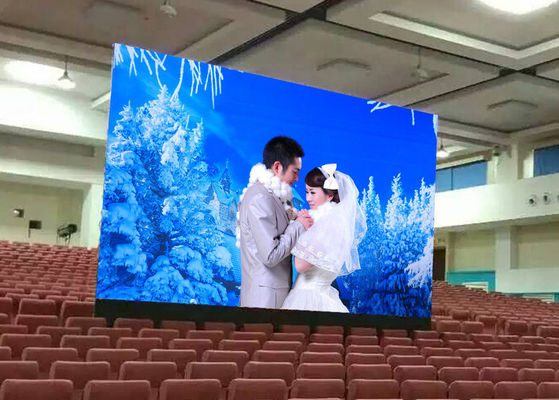

Our case
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
