Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P3 |
| Minimum Order Quantity: | 13 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case or flight case can be choose. |
| Delivery Time: | 7-12 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm per month |
| Application:: | Indoor | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 192x192mm | LED Chip:: | Epistar/Silan/CREE |
| Cabinet Size:: | 576x576mm | Refresh Rate:: | 1920Hz-3840Hz |
| Product Name:: | P3 Indoor Led Screen | Certificate: | CE ROHS FCC |
| Cabinet Material:: | Die-casting Alumium | ||
| High Light: | 1200nits Fixed Rental Led Display,576x576mm Fixed Rental Led Display,1200cd/Sqm Indoor Led Display Signs |
||
SCX LED 3840Hz high refresh ICN2153 2000cd high brightness 192x192mm 64x64 rgb smd module p3 indoor led screen
Product Feature:
1. Easy to install and disassemble.
2. Indication lights to show status of power and signal status
3, The better quality/price ratio in LED Displays field.
4. Fast cooling: excellent heat dissipation performance to protect the module circuit
5. High refresh rates:With high refresh rates, our products can display flicker-free video images - including live video feed
6. High gray level and good color uniformity with brand IC, led lamp
7. Anti-interference: special anti electronic-magnetic interference function
8. High precision: seamless splicing though CNC machine
9. Seamless connection:The aluminum die-casting technology,togrther with the high-precision CNC procession,makes the precision the precision reach ±0.05mm so as to achieve seamless assembly.
10. Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.
11.Low brightness and Hight gray scale:14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.
12.Ghost canceling:Exquisite and clear pict quality with no ghost.Both upstream and downstream ghosts can be canceled.
Module Parameter:
| Pixel pitch | 3mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 192x192mm |
| Module weight | 0.35kg |
| Module resolution | 64x64dots |
| Module quantity per cabinet | 9pcs |
Cabinet Parameter:
| Cabinet size | 576x576mm |
| Cabinet material | die- casting aluminum |
| Cabinet weight | 7.5kg |
| Cabinet resolution | 192x192 dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 111111 dots/m² |
| Brightness | ≥1200 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 3m |
| Max.power consumption | 900W/m² |
| Avg.power consumption | 300 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥480Hz |
| MTBF | ≥100000 hours |
| Lifespan | ≥100000 hours |
| Protective function |
Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +60℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, internet etc. |

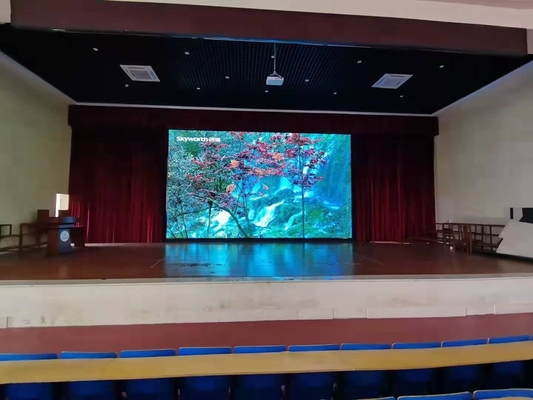

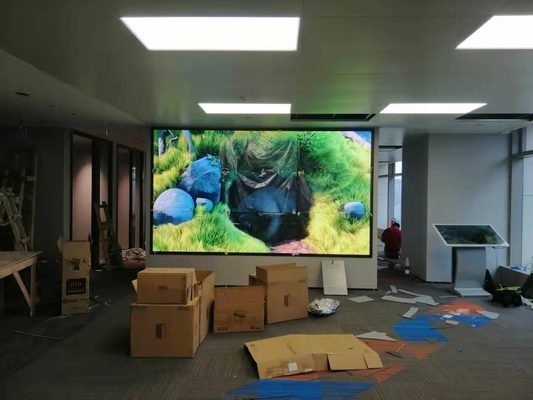

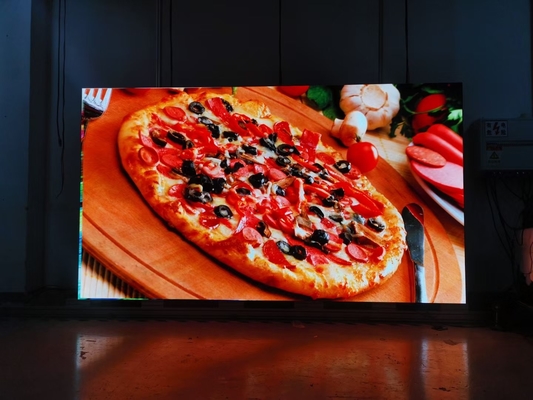

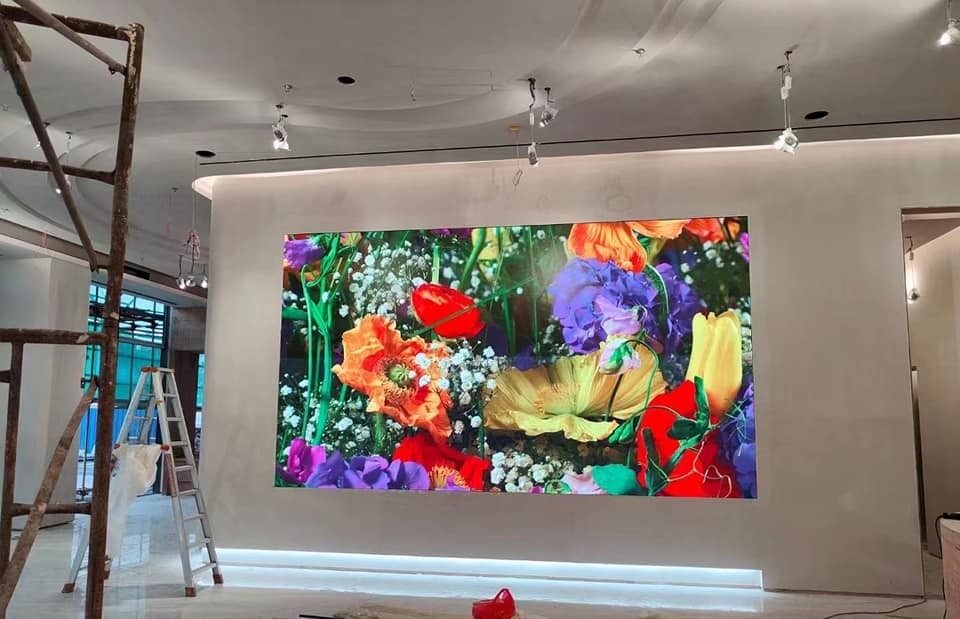

Our Case
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Flexible design and concepts according to your project requirements and cost budget Professional solution that supports your special business requirements.
After-sale Service
Providing perfect logistics system to guarantee punctual delivery.
Providing training and support for installation staff and after-sale service staff.
Providing training on product features, operation, repair, maintain of products.
Providing support for debugging and problem checking.
Providing two-year quality guarantee.
Tracking Service
Inspecting and re-checking the quality of the pre-sale service, in-sale service, and after-sale service
Quality Guarantee
Quality Guarantee: High standard, precision and zero defects
Seeking Perfection
Quality supervision involves each procedure with scientific arrangement and production scheduling, which facilitates the long-run development of the company. Both the ISO9001 quality certification standard and the ERP system are strictly implemented on procurement and production of raw materials, as well as package and storage of semi-finished products and finished products. The purpose is to comply with the international standard and make products and services better. Strict quality control is the key for TEKVISION’s continuous development, and is the strong power for expansion.
Constant Perfection
Striving for perfection is the guarantee for our high-quality products. TEKVISION combines process management and attention to details for continuous innovation management and professional dedication, and incessantly guides all staff to explore new and creative quality management methods. Our Mission: Starting with meeting new challenges one at a time.
Three-Years Quality Guarantee
During the three-years warranty period, if the product is damaged under normal operating conditions, TEKVISION promises to take corrective measures to maintain consumers' interests.
FAQ
Q1. Can I have a sample order?
A: A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 12-25 days.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express (DHL, UPS, FedEx ). It usually takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for led display?
A: Firstly let us know your requirements or application, liking project size, rental or fixed installation.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the finished display cabinet.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
If you have more questions, pls write mail to us or call us, we will reply you ASAP.
