Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P8 or P10 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case or flight case are available. |
| Delivery Time: | 5-17 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Product Name:: | Perimeter LED Screen Display P10 | Pixel Configuration:: | SMD3535 1R1G1B |
|---|---|---|---|
| Usage:: | Outdoor | Module Size:: | 320*160mm |
| Module Resolution:: | 32*16dots/Sqm | LED Chip:: | Epistar |
| Power Supply:: | Meanwell | Protection:: | Top Soft Bar And Soft Mask |

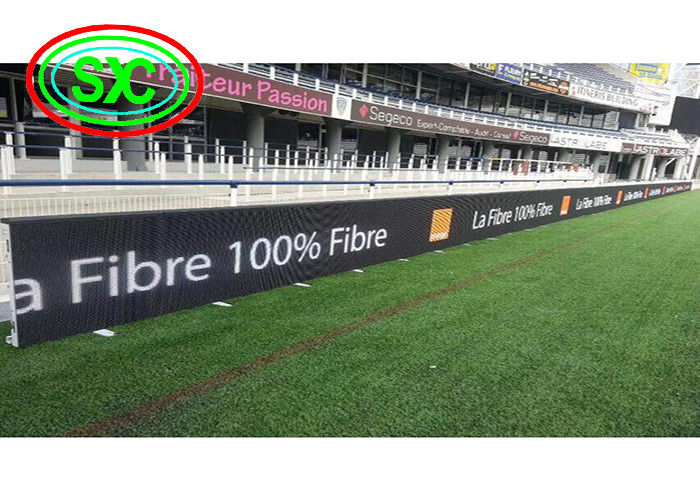

| Application:: | Football Playground, Basketball Playground, Stadium | Control System:: | LINSN/NOVA |
| High Light: | 960x960mm Waterproof Perimeter LED Display,P10 Waterproof Perimeter LED Display,SMD3535 Rental Stadium Led Screen |
||
Parameter specification
| model | P8 | P10 | |
| Pixel unit module | Pixel pitch(mm) | 8 | 10 |
| Pixel density (dots/sqm) | 15625 | 10000 | |
| LED type | SMD | SMD | |
| Module size(mm) | W320xH160 | W320×H160 | |
| Pixel composing | RGB full color | RGB full color | |
| Pixel unit screen | screen size(mm) | 960*960mm | 960*960mm |
| module Resolution (nits) | 32*16 | 32*16 | |
| Cabinet structure | Water-proof | Water-proof | |
| screen material | Ironed steel cabinet | Ironed steel cabinet | |
| Protect degree | IP65 front ,IP54 rear | IP65 front ,IP54 rear | |
| Viewing distance(m) | 8-100m | 10~100m | |
| Brightness(cd/sqm) | ≥6000 cd/sqm | ≥6000 cd/sqm | |
| Power consumption (w/sqm) | Max 850W/sqm ,Min 280W/sqm | Max 600W/sqm ,Min 200W/sqm | |
| Driving IC | 1/4 scan MBI Brand Driver | 1/4 scan MBI Brand Driver | |
| Refresh rate(HZ) | ≥960-2000 | ≥960-2000 | |
| Viewing angel(c) | H120 V120 | H120 V120 | |
| Other parameter | Image adjustment | contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc | |
| Image processing | Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc | ||
| Brightness uniformity | The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9 | ||
| Gray | 65536 | ||
| Color temperature/contrast | Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need | ||
| Transmitting Distance | The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers | ||
| Input Signal | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION | ||
| Control System | PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer | ||
| Average No Failure Time | 20000 hours | 20000 hours | |
| Life span | 100,000 hours | 100,000 hours | |
| Out-of Control rate | 0.0001 | 0.0001 | |
| To floor drain current | Less than 3.5MA | Less than 3.5MA | |
| Control system | Synchronized | Synchronized | |
| Operating Environment Temperature | -20°C—65°C Optional | -20°C—65°C Optional | |

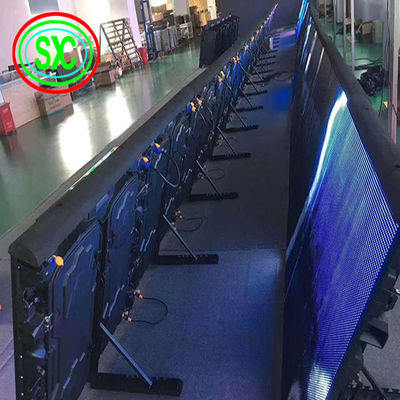

Cabinet photo
Buying Guides
In order to offer you a suitable solution, please follow the guides bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. Three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Company profile
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ:
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 17 years.
Q2:How does your factory do regarding quality control?
A2:Quality is priority.Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail,Our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led modules and 10-12days for the led finished screen according to the size and quantities of your order.
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
Q6:How long is the warranty?
A6:The standard warranty is 1 year. It could be longer upon request.
Q7:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
