| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P3 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case or flight case are available. |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Application:: | Indoor Advertising | Color: | Full-color |
|---|---|---|---|
| Module Size:: | 192*192mm | Cabinet Size:: | Customized Size |
| Pixels Density:: | 111111 Dots/square Meter | Brightness:: | 1500nits |
| Package Mode:: | SMD2121 | Certificate: | CE ROHS FCC |
| Life Span:: | 10 Years | Pixels Density:: | 111111 Dot /square Meter |
| Warranty: | 2 Years | ||
| High Light: | SMD2121 Stage Led Panels,1500nits Stage Led Panels,1000sqm Indoor LED Wall Screen |
||
SCX LED Indoor P3 Advertising Full Color LED Display Screen
.Features:
1>Price Advantage
We use Entire automatic equipment, so each month; we can up to 1000sqm,
In this case, the cost of purchase material is lower than others.
2>Good quality raw material
LED: Adopting low current, high brightness LED, body antistatic >1000V, LED scope wavelength with in 5nm, so the screen with reliable performance, good consistency, fast response time and long life time.
Mask: All designed by ourselves, using good PC material, not easy to deform
1.Standard dimension, module size: 192mm*192mm, cabinet size: 576mm*576mm,
compatible model3mm pixel pitch.
2.High precision die cast aluminum cabinet, light weight, cute size,strong and stable, better meet
outdoor rental screen.
3.Special hanging and seat mounted design,accurate, fast and flexible positioning installation,
can effectively respond to different application areas.
4.Seamless unit box, 120 degree all around view angle,and special module mask which assure
good looking for screen surface when it is turn off.
As you know, the led technology has changed the world rapidly. As a good application of this technology, led screen has been used universally in different areas. They bring us wonderful visual and auditory experience, Making the world colorful and beautiful.
Shenzhen ShiChuangXinKe Electronics Co.,Ltd, as a professional led display manufacturer, we provide personalized led display solutions for your case with reasonable price and guaranteed quality ! Our website: www.scxled.cn We are ready all the time, Enjoying your visiting and welcome to contact us !
| Unit Module Specifications | |
| Item | P3 |
| Pixel Pitch | 3 mm |
| Pixel Configuration | 3in1 (1R1PG1B) |
| Module Size(MM) | 192*192 |
| Module Resolution(Dots) | 64*64 |
| Module Weight(Kg) | 0.3 |
| Package LED Mode | SMD2121 |
| Max Power(Watt) | 21 |
| Pixel Density(Dots/SQM) | 111'111 |
| Driving Method | Constant Current Driving |
| Scan Method(Scan) | 1/32 |
| Interface Way | HUB 75 |
| Brightness(CD/SQM) | ≥ 1500 |
| Safety Standard | CCC,FCC,ROHS,TUV,CE,ETL,UL,BIS..... |
| Unit Cabinet Specifications | |
| Cabinet Size(MM) | 576*576 |
| Cabinet Composing(PCS) | 9 |
| Power Supply Mode(Per Cabinet) | 5V60A |
| Cabinet Resolution(Dots) | 192*192 |
| Optimal Viewing Distance(M) | 3-300 |
| Optimal Viewing Angle | Horizontal angle: 160 degree; Vertical angle: 140 degree |
| Environment Temperature | Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree |
| Relative Humidity | 10% ~ 95% |
| Power Supply Specifications | |
| Operating Voltage | AC:100V~120V AC:220~240V |
| Average Power(W/SQM) | 150-350 |
| Max Power Consumption(W/SQM) | ≤ 800 |
| Current | ≤ 20mA (single LED) |
| Control System Specifications | |
| Computer | Pentium4 or above P4 or above |
| Operate System | Win7-11/2000/NT/XP |
| Control Mode | Synchronization with PC |
| Main Technical Parameter Specifications | |
| Driving Device | Constant Current Driving |
| Refresh Rate | ≥ 1900-3840Hz |
| Gray/Color | RGB each 256 grade, can display 16.7color |
| Lifespan | ≥ 100000hours |
| Power Switch | RGX Automatic Switch |
| Display Mode | 2048*10241024*7681280*960mm |
| For more information please contact our sales. | |

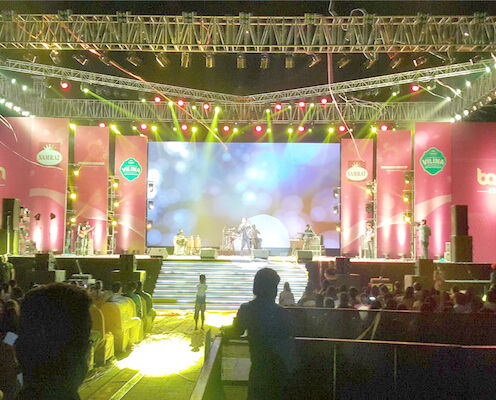

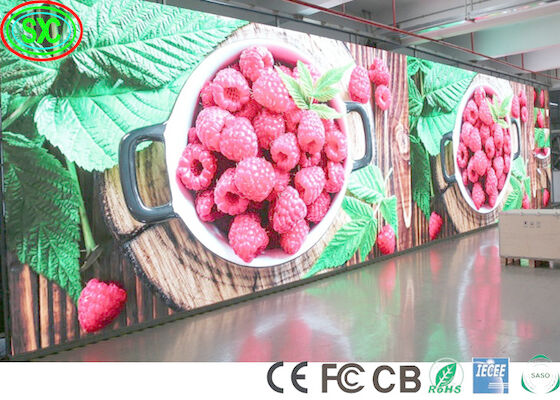

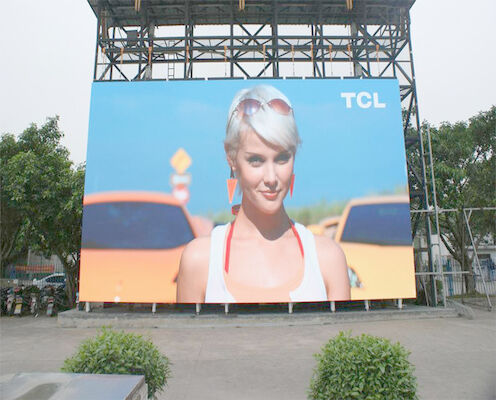

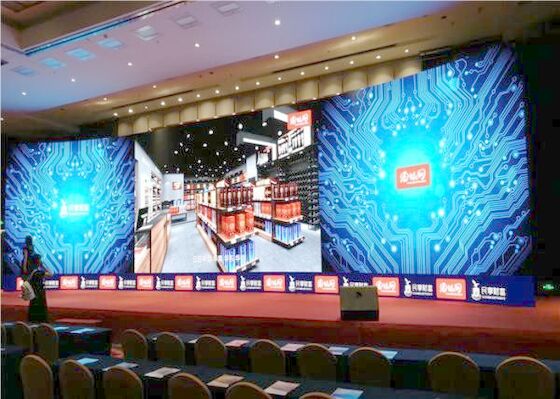

Our Case
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
