Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE ,RoHS, FCC.CCC,SAA ,TUV |
| Model Number: | SMD-P2 |
| Minimum Order Quantity: | 16 SQM |
|---|---|
| Price: | Negotiations |
| Packaging Details: | wooden case,flight case |
| Delivery Time: | 5-13 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5100 sqm month |
| Led Ic: | 2153IC | Refresh Rate:: | ≥3840Hz |
|---|---|---|---|
| Warranty:: | 3years | Brightness: | 1200 |
| Installation: | Fixed And Rental | Cards: | Novastar |
| High Light: | 1R1G1B flexible led video wall,Novastar cards flexible led video wall,P2 curved LED module |
||
256x128mm module magnet front service 3840Hz high refresh high quality Kinglight SMD1515 p2 indoor led screen
Specifications :
| Indoor Full Color P2 LED Display | |||||
| Resolution/mm | 2 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 250000/square meter | ||||
| Module resolution | 128x64 | ||||
| Module size/mm | 256x128MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/32 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||

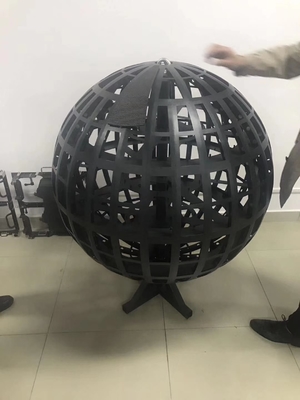

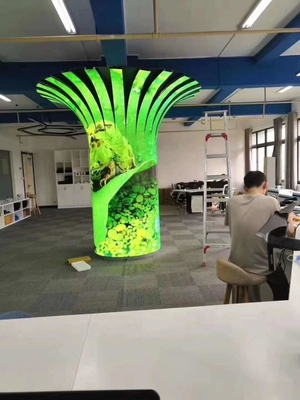

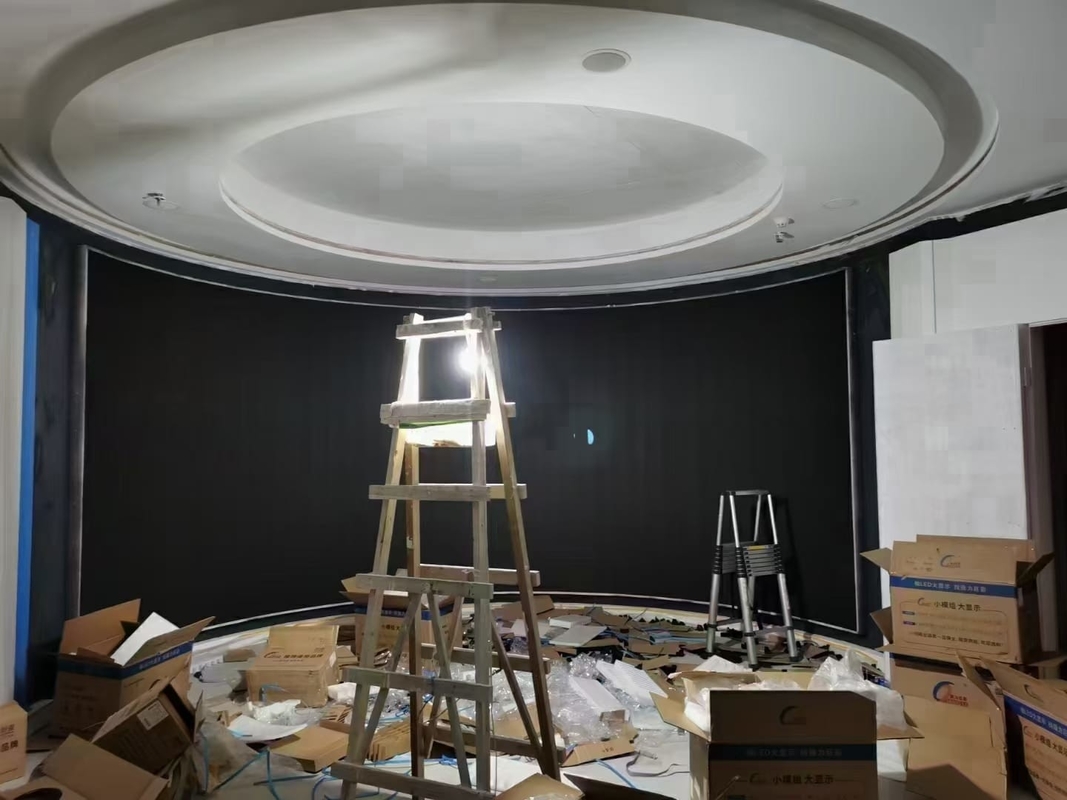

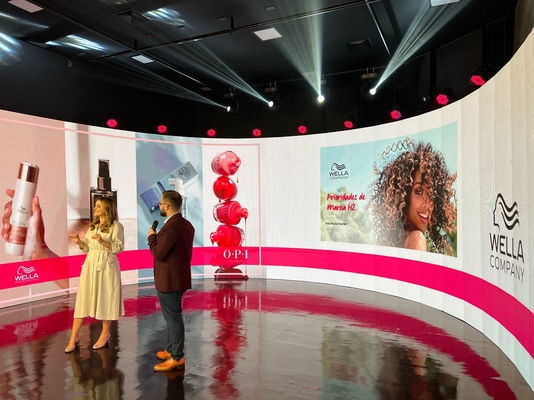

Our case
FAQ
Q1: Is your company a real manufacturer?
