Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE,ROHS,FCC,SASO，CB |
| Model Number: | SXCK-SMD P2.5 |
| Minimum Order Quantity: | 16 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 5-12 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3500 sqm month |
| Cabinet Size: | 640x640mm And 640x480mm | Refresh Rate: | 3840hz |
|---|---|---|---|
| Brightness: | 1300 Nit | Led Lamp: | Nationstar Lamp |
| Control System: | Nova ，huidu，colorlight，linsn | Warranty: | 3 Years |
| High Light: | P2.5 Rental Indoor LED Display,Magnesium Cabinet Rental Indoor LED Display,640X640mm Stage LED Screen |
||
P2.5 led display 160x160 Led Module Pixel pitch 2.5mm LED configuration SMD1515 black indoor p2.5 led VIDEO screen 640x640mm
[Features]:
1.The image and text are clear, exquisite and realistic display effect;
2.The viewing angle is large, the horizontal viewing angle can reach more than 150 degrees, the vertical viewing angle can reach 120 degrees;
3.Any angle within this range, the image is not Deformation, not color cast.
Application
LED display, also called led screen, led video wall, led panel ,or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution, high brightness and full colour! LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.
Led display screen now are widely applied in media advertising, transportation, Security, Real estate and Stage show background.
Specifications
| Parameter | Value |
| Pixel Configuration | SMD2020 |
| Pixel pitch (mm) | 2.5 |
| Pixel matrix per panel | 64*64 |
| Pixel density (pixelsm) | 160000 |
| Cabinet Dimensions(L*W) mm | 480*480mm |
| Module Dimensions(L*W) mm | 160*160 |
| Panel material | Aluminum profile&iron&die-casting aluminum |
| Cabinet weight (kg/panel) | 7 |
| Colour grayscale (bit) | 12-16bit |
| Gray scale per colour (level) | 16384 |
| Refresh rate (hz) | 1920 |
| Driving type | 1/16 |
| Signal transmission distance (m) | cats cable:<100m single mode fiber:<10km |
| Brightness (nit) | 1200 |
| Optimal horizontal viewing angle (degree) | 160 |
| Optimal vertical viewing angle (degree | 160 |
| Ac input voltage (v) | Ac100-240v |
| Ac input frequency (hz) | 50/60 |
| Ac input power maximum value (wm) | 625 |
| Ac input power typical value (wm) | 150 |
| Storage temperature (℃) | -40-60 |
| Work temperature (℃) | 0-45 |
| IP rating (front/rear) | IP40/IP21 |
| Storage humidity (rh) | 10%-90% non -condensing |

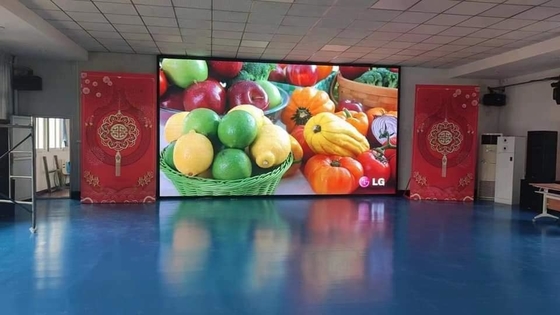

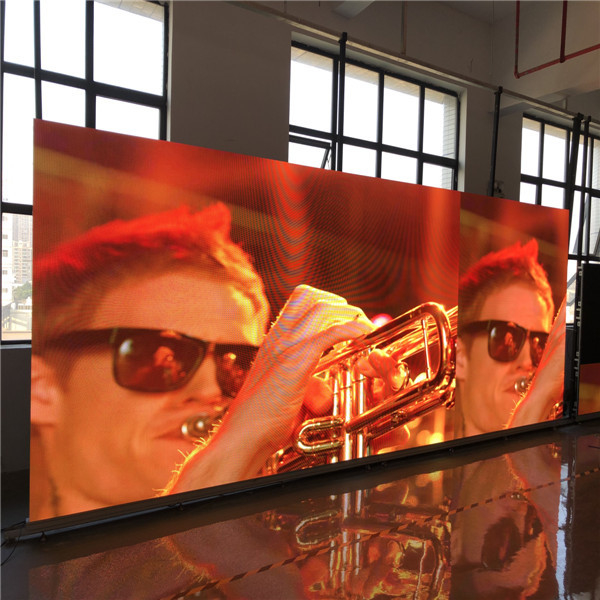

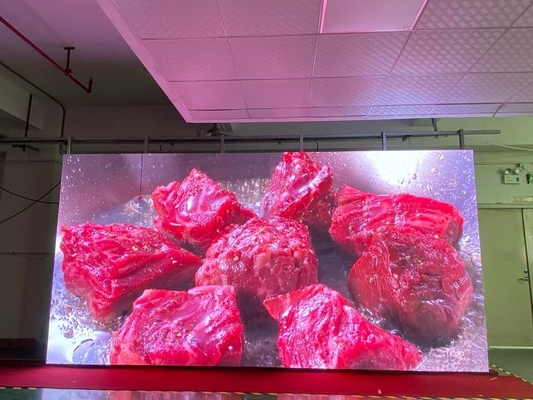

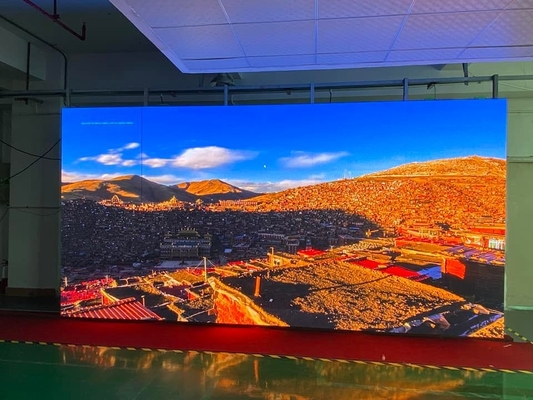

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
OUR COMPANY provides on site product installation, debugging and maintenance service for our LED display. Such as:
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
Rental led display screen
1.This link is for P2.5 indoor full color led cabinets:
2.Including 1pcs receiving card.
3.module size is 160X160mm
4.Power supply: G-energy.
5.Stage,club,concert,church,led video wall,events.
6.Installation: Stand,hanging.
7.back service with screw(Optional: Front service with magnet).
You can also buy the flight case or sending card,LINSN,NOVA,video processor,etc in our shop.
