Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P3 |
| Minimum Order Quantity: | 13 SQM |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 7-12 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4200 sqm month |
| Resolution: | 3840hz | Brightness: | 1300nit |
|---|---|---|---|
| Product Name: | Indoor Full Color P3 Led Screen ，576x576mm | Led Lamp: | Kinglight 2038s |
| Control Cards: | Novastar，linsn，huidu | Warranty: | 5years |
| High Light: | Fixed Indoor Full Color LED Display,Indoor Full Color LED Display 1300nit,SMD LED Video Wall Screen |
||
Indoor P3 led screen 576x576mm die-casting aluminium cabinet led display for rental backstage led panel
led panel display advantage:
1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under directly sunlight.
2)Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.
3)The brightness can be adjustable to meet the need of changing environment
4)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal
♦ Product specification
| indoor SMD p3 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 3 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 111111/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 192X192 | |||||||||||||
| View distance | ≥5m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >1800cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/16 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >1200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <800W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

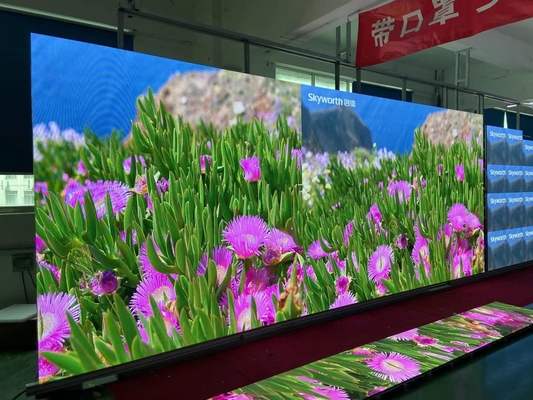

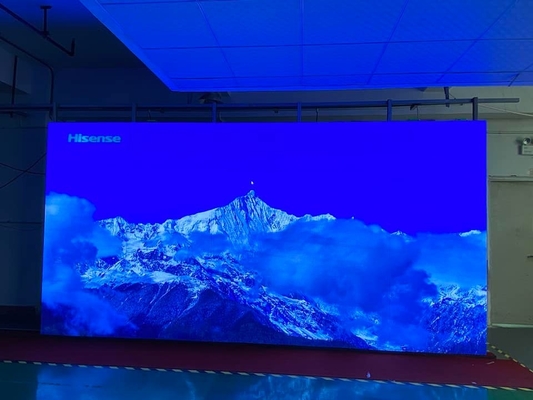

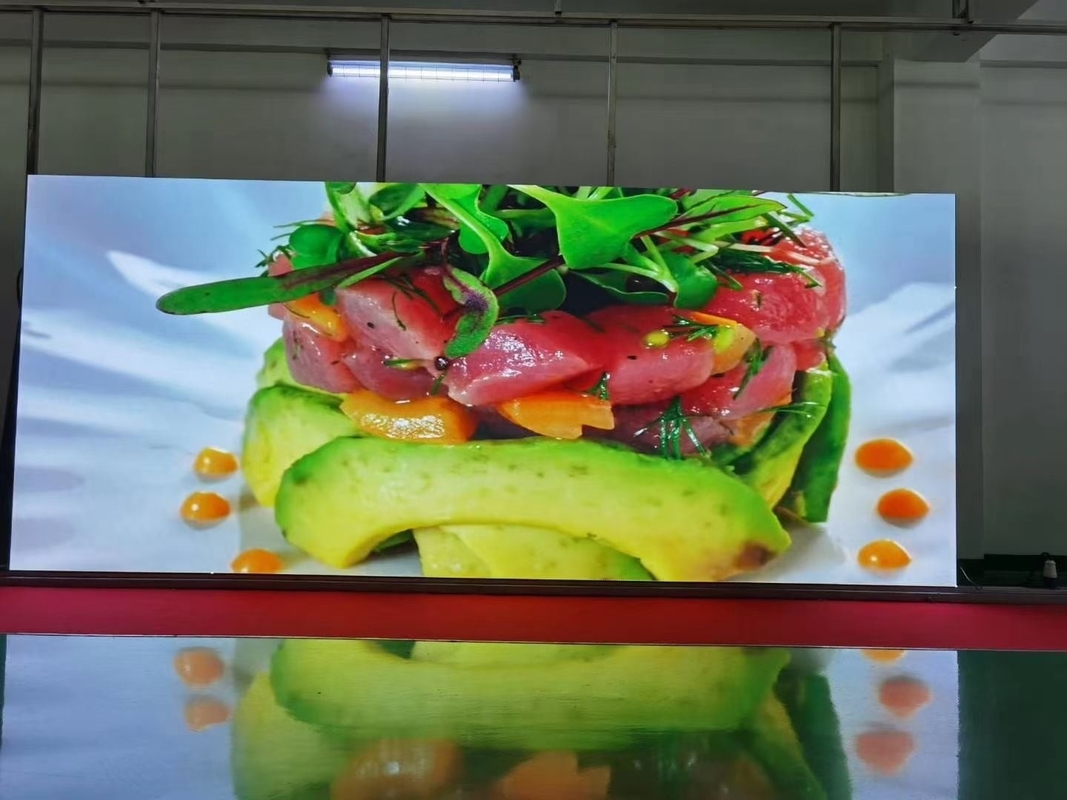

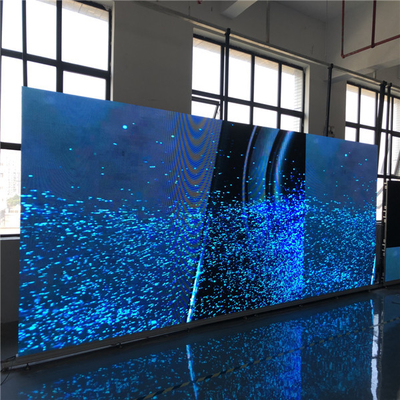

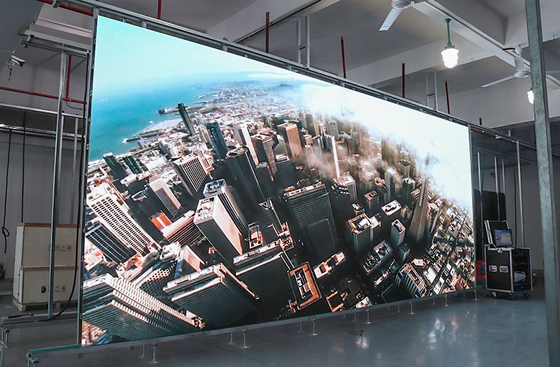

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 17 years.
Q2:How does your factory do regarding quality control?
A2:Quality is priority.Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail,Our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led modules and 10-12days for the led finished screen according to the size and quantities of your order.
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
