Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China，shenzhen |
| Brand Name: | SCX |
| Certification: | CB,UL，CE |
| Model Number: | indoor p2.5 |
| Minimum Order Quantity: | 16 SQM |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case |
| Delivery Time: | 3-12 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm per month |
| Brightness: | 1300 Nit | Leds: | Nationstar |
|---|---|---|---|
| Refresh Rate: | 3840hz | Cabinet Size: | 500x500and 500x1000mm |
| Power Supply: | Mw | Warranty: | 5years |
| High Light: | Indoor LED Display Screen 640x480mm,nationstar Indoor LED Display Screen |
||
fixed wall mount front service 640x640mm super thin cabinet indoor rental full color SMD led display screen p2.5
Product Features:
· Small pixel pitch for indoor rental.
——P2.5mm for rental, smaller pixel than P3.91mm.
· Noiseless design, excellent heat dissipation.
——Quiet design without fans.
· Fast locking system.
——Easy and quick to assemble an big led screen, save labor cost and time.
· 3840Hz high refresh rate.
——Smooth and vivid videos without ripple and blank, clear images restored accurately, bringing to the audience greatest visual enjoy.
· Low brightness with high grey-scale.
♦ Product specification
| indoor SMD P2.5 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 2.5 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 160000/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 160*160 | |||||||||||||
| View distance | ≥0.5m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2500cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/16 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1000W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

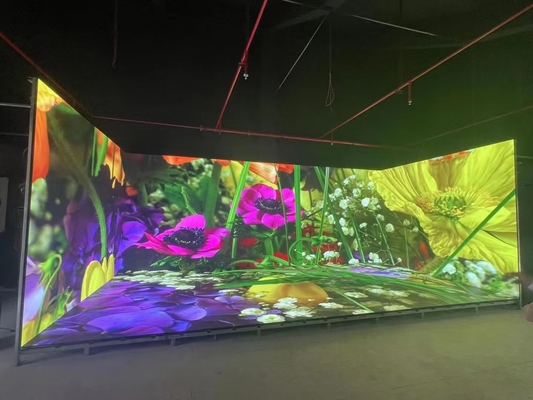

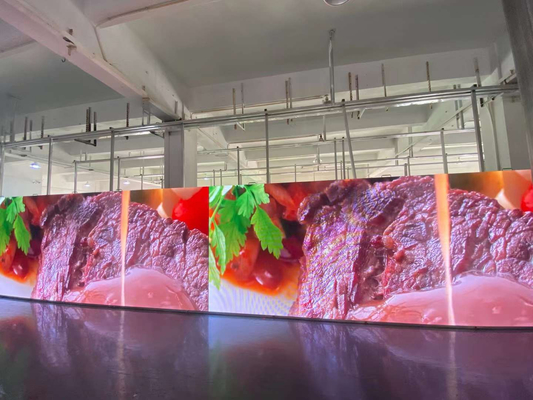

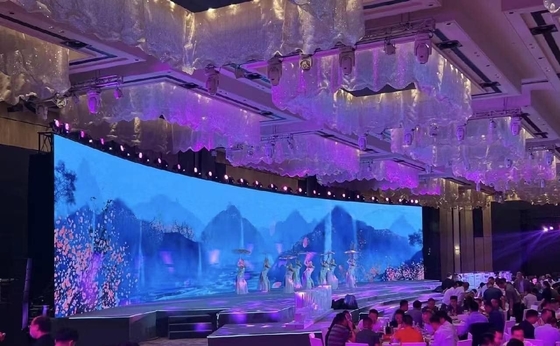

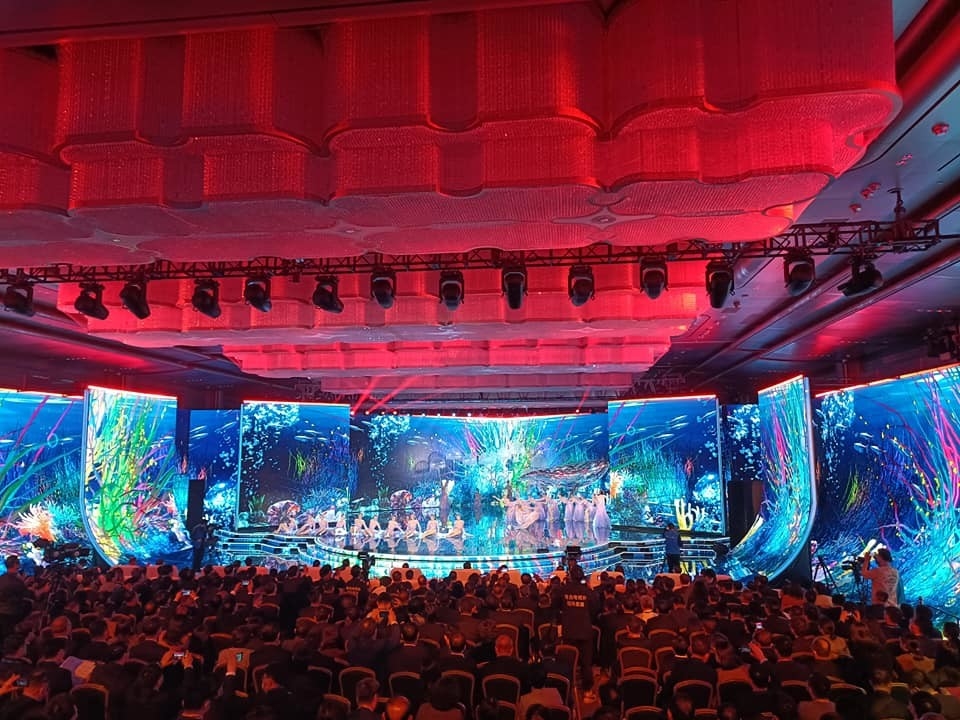

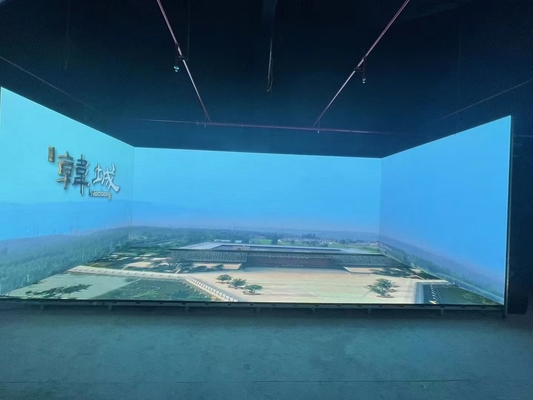

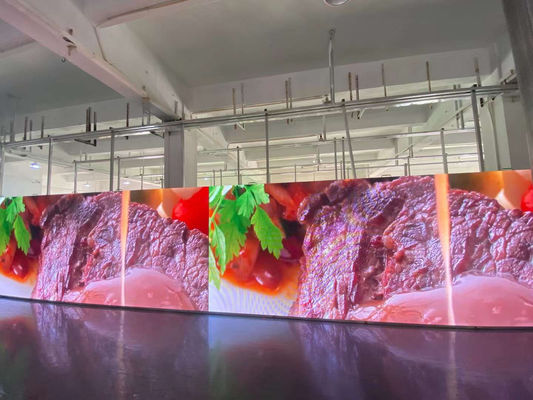

Application of Indoor Led Display:
Indoor led display may widely be used at waiting room of railway station led display,led vedio wall
display screen,exhibition facilities led display,artistic centres led display,entertainment locations
led display,large scale artistic ceremonies led display,live concert led display,media advertising led
display,monitor system led display etc.
Products:
1.Smd led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
2.Clear picture without flicker and distortion.
3.The final products feature supreme quality and offers best outputs.
4.High refresh rate and gray scale ensures the picture quality remains seamless.
5.All display information can be controlled by remote network. It is easy to replace the screen information with just a click of the mouse to achieve the clustering of advertising display networks in cities and regions.
Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well−trained and experienced staffs to answer all your enquires in fluent English.
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4. Good pre-sales and after-sales service, you are warmly welcome to visit our factory to learn the technical and maintenance skills and everything you need in our factory.
5.Protection of your sales area, ideas of design and all your private information.
About us
1.Found in 2009,Scree® have developed into two factories, more than 40,000 square meter area. owned more than 60 SMT automated product lines to ensure prompt delivery,
2. More than 30 persons of engineering technology and 100 persons quality inspection to make sure good quality and research.
3.Manufactured by using best quality material,had lots of spot goods, can solve your urgent orders.
4.Certificated by CE,RoHS,CCC,FCC,UL,ISO9001:2008.
5.Warmly welcome to visit our factory at any time!
1.Found in 2009,Scree® have developed into two factories, more than 40,000 square meter area. owned 30 SMT automated product lines to ensure prompt delivery,
2. More than 30 persons of Engineering Technology and 100 persons Quality Inspection to make sure good quality and research.
3.Manufactured by using best quality material,had lots of spot goods, can solve your urgent orders.
4.Certificated by CE,RoHS,CCC,FCC,UL,ISO9001:2008.
5.Warmly welcome to v isit our factory at any time!
