Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China，shenzhen |
| Brand Name: | SCX |
| Certification: | CB,CE,UL |
| Model Number: | outdoor p5 |
| Minimum Order Quantity: | 13 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 4300 sqm month |
| Product Name:: | P5 Display Panels Waterproof Led Video Wall Billboard | Screen Dimension:: | Customize Size |
|---|---|---|---|
| LED Chip/IC:: | Epistar Chip/Sanan/Huacan | Cabinet Material:: | Die Casting Aluminum/Die Casting Magnesium |
| Brightness:: | 7000cd/sqm | Module Size:: | 320*160mm |
| High Light: | 160*320mm Outdoor Full Color LED Display,Fixed Installation Outdoor Full Color LED Display,Fixed Installation Led Video Screen |
||

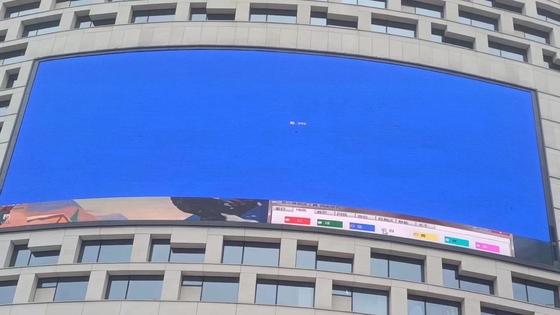

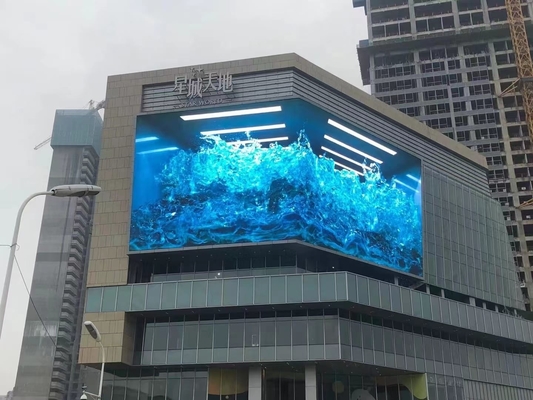

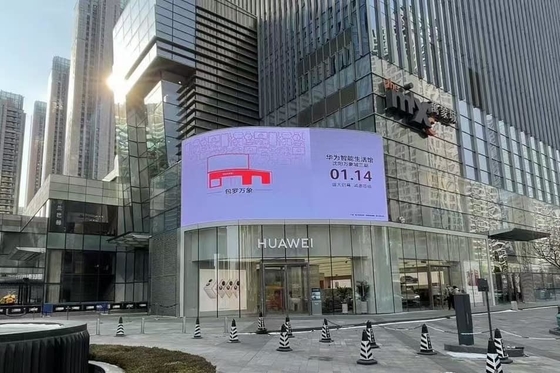

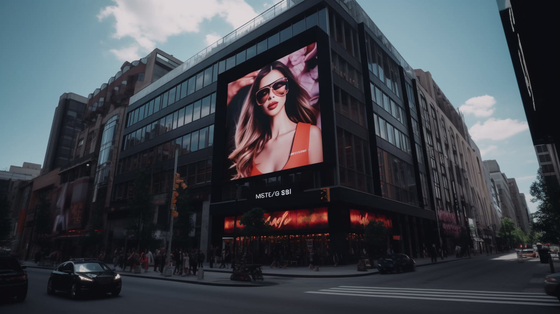

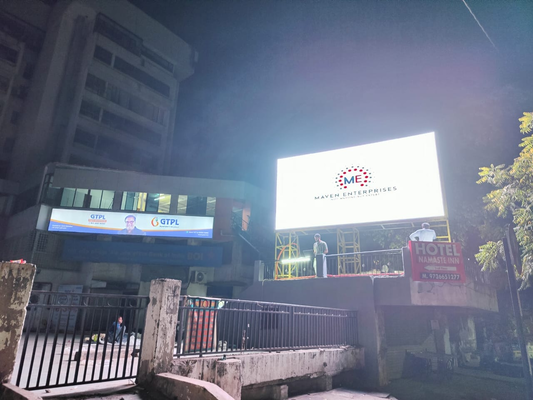

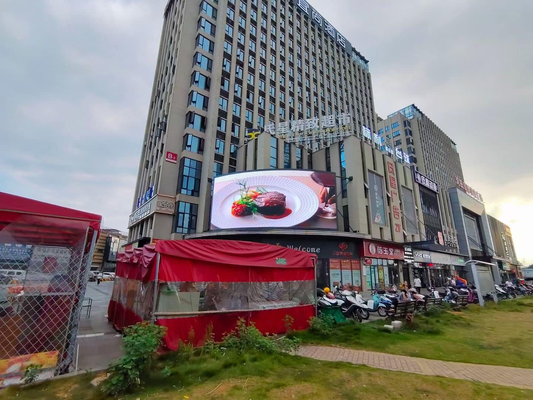

P5 160*320mm Outdoor Full Color LED Display Fixed Installation Video Screen
Big Size P5 Fixed Outdoor LED Advertising Display Screens Video Wall
Product Description
1. SMD led encapsulation confirm wide view distance and good uniformity
2. High brightness,good waterproof IP65,anti-corrosion,anti-rust,long life
span>100000hours
3.High pixel density, high resolution and high definition,perfect display vision
4. Lower power consumption,good heat dissipation,low noise created.
5. Cabinet with locks,connectors,easy and quick to assemble without tools in short time

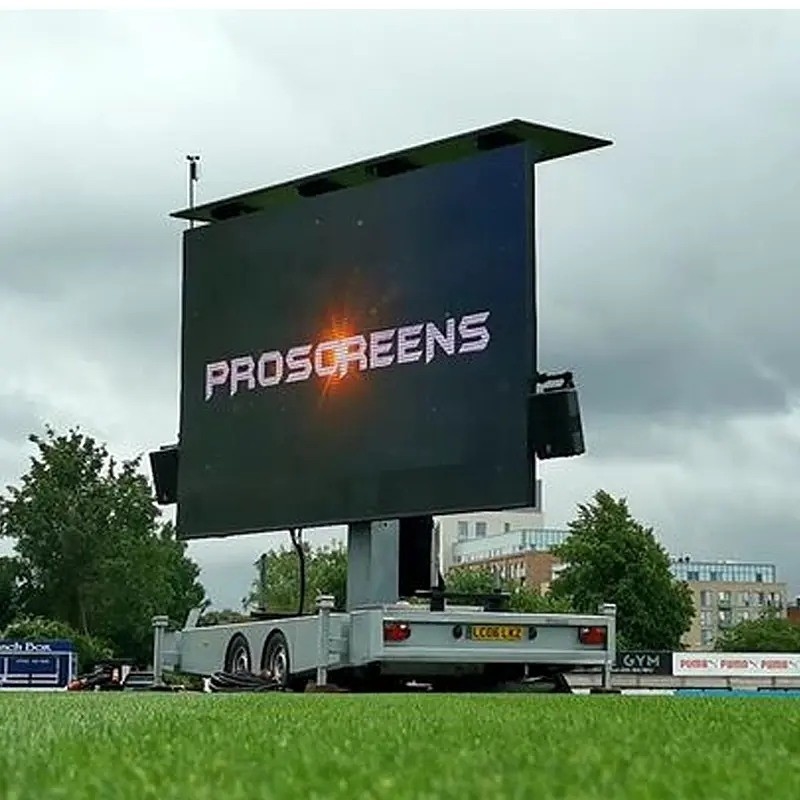

6. Widely used for commercial display,advertising, stage background,mobile display. traffic display,sports led display etc.
Specification
|
P6 SMD3535 Outdoor full Color LED Screen Specification |
|
|
Pixel pitch |
5mm |
|
Pixel Configuration |
1R1G1B |
|
LED component |
SMD2727 |
|
Size of module |
320mm x 160mm |
|
Resolution of module |
64 x32dots |
|
Size of cabinet |
960mm x 960mm x 150mm |
|
Resolution of cabinet |
192x192dots |
|
Material of Cabinet |
Iron |
|
Weight of Cabinet |
65KGS |
|
Brightness |
>7000cd/sq.m |
|
Density |
40000dots/sq.m |
|
Best viewing angle |
140 /140 |
|
Pixel Configuration |
1R1G1B |
|
Best viewing distance |
5-60M |
|
Maximum power consumption |
1000W/sq.m |
|
Average power consumption |
560W/sq.m |
|
Driving method |
1/8scan |
|
Control method |
Synchronization |
|
Gray scale |
65536 |
|
Colors |
256*256*256 |
|
Color temperature |
3200-9300k |
|
Uniformity |
97% |
|
Working voltage |
AC220V/110V±10% |
|
Working temperature |
-20ºC~+50ºC±10% |
|
Working humidity |
10% ~ 90% |
|
MTBF |
10,000 hours |
|
Frame frequence |
50/60Hz |
|
Refresh frequence |
>1920Hz |
|
IP grade |
IP65 |
|
Life Span |
100,000 hours |
|
Data transafer method |
RJ45 |
|
Pratical standard |
CCC TUV-CE ETL etc. |
|
Effectivce Communication |
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
|
Accepting signal with video processor |
PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
|
Systems operating platform |
WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
Products details
Packaging & Shipping
Q1. Can I have a sample order for LED display?
A: Yes, we welcome sample order to test and check quality. Both for module or whole screen.
Q2. What about the lead time?
A:Order less than 100 square meter led time take 15 working days
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent. It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for LED display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
