Indoor Full Color p6.25 led disco dance floor High Definition With Constant Current 1/5 Scanning

Indoor Full Color p6.25 led disco dance floor High Definition With Constant Current 1/5 Scanning

  • Indoor Full Color p6.25 led disco dance floor High Definition With Constant Current 1/5 Scanning
  • Indoor Full Color p6.25 led disco dance floor High Definition With Constant Current 1/5 Scanning
Indoor Full Color p6.25 led disco dance floor High Definition With Constant Current 1/5 Scanning
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/SGS
Model Number: P6.25
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Packed in wooden case and flight case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000/ Sq m per month
Contact Now
Detailed Product Description
Product Name: The Curtain Led Display Module Size(W * H): 250mm*250mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 6.25mm Module Qty: 1pcs
Type: Free Standing Resolution(W*H): 40dots*40dots
High Light:

club dance floor

,

interactive dance floor

indoor p6.25mm full color high definition led dance floor screen , 1/5  constant current scanning

Dnace Floor LED Screen feature

High Weight Load [200kg/S (S≥160x160 mm) Al-alloy Structure, Super-wearable Surface,Sealed Structure, High Protection Level (IP65) 14Bits Processing Depth, 3-in-1 SMD Technology The best color uniformity



Floor LED Screen P6.25 is designed into tiling module which turns the inanimate floor into an amazing stage video displaying surface with colors, patterns, videos and interactive performances. Designed based on concept of PASSION digital stage,which is a brand-new form digitally expressing floor. It also brings the best expressing form for floor for creating scene and interacting with shows in stage.



Dance Floor LED Screen adopt the color and brightness revised technology, the uniformity can reach the best level. The definition of showing picture is very high, Strong and durable aluminum alloy is used to build its structure and its facade is made of super-wearable rosin plastic, which endures hundreds of kgs stuff onto its facade moving and trampling.

High grey grade, the screen picture will be extremely soft and vivid.



 think about dancing in fire, chasing tide, fabulous video…you can easily realize such things in dancing floor of disco hall, night club, T-stage, concerts, show dramas…

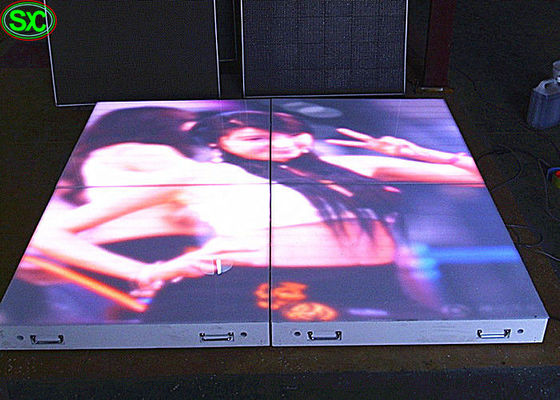

Indoor Full Color p6.25 led disco dance floor High Definition With Constant Current 1/5 Scanning 0



indoor p6.25mm full color high definition led dance floor screen , constant current 1/5 scanning
LED Lamps Type SMD2727(High Brightness LEDs)
LED Standard Real Pixel(1R1G1B)
Red Wavelength 625-630nm
Green Wavelength 515-530nm
Blue Wavelength 465-475nm
LED Module Pixel Pitch 6.25mm
Module Size 250mx250m
Module Resolution 40dots*40dots
LED Cabinet Cabinet Size 1000mmX500mm
Cabinet Resolution 160pixels *80pixels
Cabinets Material steel or aluminium
LED Display Pixel Density 25600pixels/sq.m
Drive IC MBI5024
Power Supply Series connection
Brightness >5000cd/sqm
Display Color 16.7million
Viewing Angle 110°(Horizontal),50°(Vertical)
Best Viewing Distance 1m~100m
Max Power Consumption 1000w/sq.m
Average Power Consumption 600 w/sq.m
Refresh Rate 3000hz
Input Voltage AC220V/50H or AC110V/60H
Output Voltage DC5V,40A
Grey Scale Levels 1024
Display Colors R(1024) x G(1024) x B(1024)
MTBF 10,000 hours
Life-span 100,000 hours
Protection Level IP65
Failure percentage of leds less than 0.0003
Working Temperature -25℃~65℃
Drive Mode 1/5 scan constant current
Working Humidity 10%~99%
Control method Synchronization & Asynchronization
Control System Control System Mooncell
Software LED Studio
Input Signal MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc
PC Operating system

Microsoft Windows 7, 98, 2000, XP and Vista







Advantages

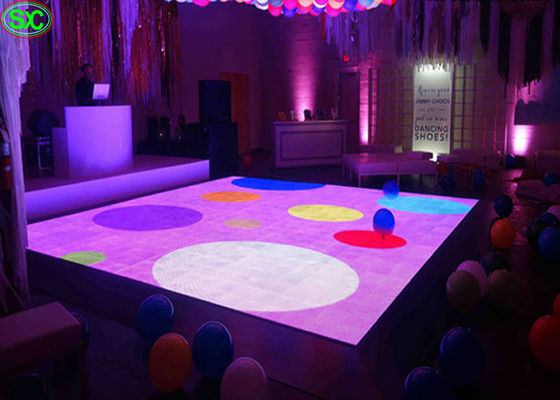

Indoor Full Color p6.25 led disco dance floor High Definition With Constant Current 1/5 Scanning 1





Indoor Full Color p6.25 led disco dance floor High Definition With Constant Current 1/5 Scanning 2



Indoor Full Color p6.25 led disco dance floor High Definition With Constant Current 1/5 Scanning 3



Payment and delivery



1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.



♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
