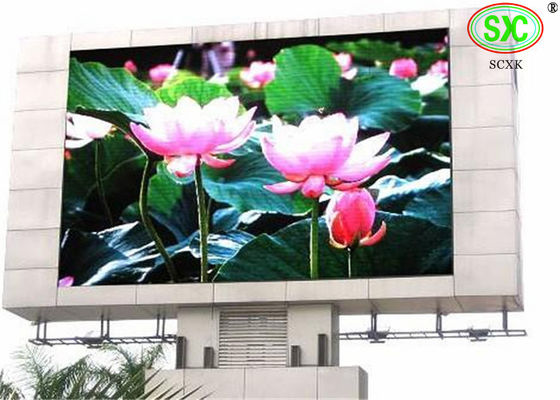

Pixel Pitch 6mm Advertising large outdoor LED display screens for plaza / mansion

Pixel Pitch 6mm Advertising large outdoor LED display screens for plaza / mansion

  • Pixel Pitch 6mm Advertising large outdoor LED display screens for plaza / mansion
Pixel Pitch 6mm Advertising large outdoor LED display screens for plaza / mansion
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P6
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: Outdoor Full Color Led Display Module Size(W * H): 192mm*192mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 6mm Module Qty: 1pcs
Type: Free Standing Resolution(W*H): 32dots*32dots
High Light:

led full color screen

,

indoor led billboard

6mm Advertising indoor Full Color Led Display With 32dots x 32dots Resolution



Specifications

We are the professional manufacturer of outdoor and indoor led display. With more than 8 years experience, our led display enjoy good reputation . The Indoor P6 full color led display is very high definition and brightness,its’ very attractive and hot sell. The feature as follows:please check it.

 1, the brightness: >2000cd/m²

 2, Led pixel composing:3 in 1

 3, voltage:DC5V

 4, View angle:80

 5, Led parameter: R:625-630nm G:515-530nm B:465-475nm

 6, 2years warranty, more than 10 years life use.



The detailed parameter as follows.



1,  Item Name

  technology parameter

2,  pixel tube:

   pixel pitch:6mm;  primary colors: pure red+ pure green +pure blue;

   color composing:1R1G1B;

   density:27777dots/sq m; SMD3528

3 , unit box

  module size:192mm×192mm;  Module resolution:32X32

  cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

4, whole screen:

viewing distance:5-300m;working temperature:-20°C~+45°C(-30°C ~+50°C  optional)  relative humidity:≤95%RH;   Drive IC ET6024



5, operating voltage

 AC220V±10% or 110V±10% ,average consumption:500 W/sq m

  max consumption:≤650 W/ sq m

6, main parameter

  1. driving mode:1/4 scan

2)refreshing rate:≥400Hz/s

3)frame frequency:≥60Hz/s

4)gray scale/color:≥16.7Mcolors(Synchronized)

5)manage gray:≥72bit

6)brightness:≥2000cd/sq m

7)color temperature condition:3500K~9500K,be adjustable

8)adjusting style of brightness: hand movement/auto

9)video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.

10)average : trouble-free time:≥5000hours

11)evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm

12)switch power loading:5V/40A

13)display mode of computer:1024×768















  1. Applications:

Indoor full color led display  is very popular in LED display advertising field. This type digital billboards are widely used  indoor building,stadium,shopping ,airport etc;

 2. Features :

Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system

and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle

Super brightness indoor full color LED billboard advertising

In LED display indoor series, The module design of the LED display (indoor) enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display (indoor) series are applied to large public squares. sport centers casino signage,public service announcement displays,media,commercial promotion and other large scale applications.

1, Superb  brightness  and color uniformity and reproduction.  Brightness  variance  within+/-2.5%

2, High  reliability:  data  hot  backup  aims  to  avoid  any  communication  risks  during  the  show;  support automatic fault detection

3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition

 Methods for Quality Assurance

a. Aging

1. 100% fully test

  1. Condition: 72 hours with 256 Grey level

b. Vibration Testing

Condition: 3-5 min up and down in 5mm range



Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.



Competitive Advantage:

1.  2 years’ warranty with free repair service

2.  24/7 Hours online Remote Support

3.  Solution and PCB design

4.  Free factory training

5.  On site installation instruction and regular inspection

6,  Small order accepted.
