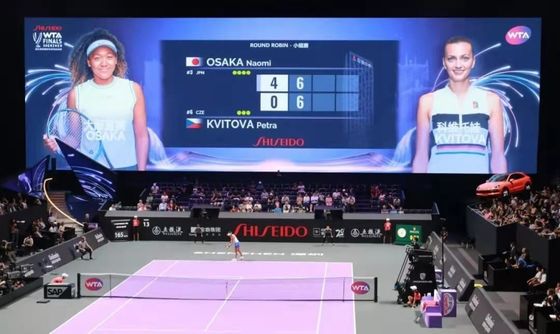

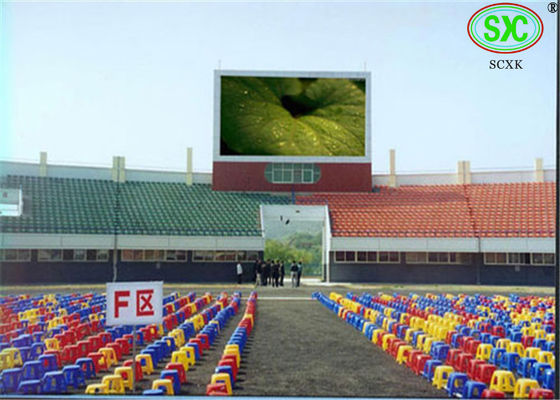

Large Outdoor Stadium LED Display Commercial Center High brightness PH10mm Video LED sign

Large Outdoor Stadium LED Display Commercial Center High brightness PH10mm Video LED sign

Large Outdoor Stadium LED Display Commercial Center High brightness PH10mm Video LED sign
Large Outdoor Stadium LED Display Commercial Center High brightness PH10mm Video LED sign
Large Outdoor Stadium LED Display Commercial Center High brightness PH10mm Video LED sign
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P10 Stadium Led Display Module Size(W * H): 320mm*160mm
Standard: CE/ROHS/FCC/ISO2001 Pixel Pitch: 10mm
Resolution(W*H): 32dots*16dots Panel Size: 960*960mm
System: Novastar Leds: Kinglight/Nationstar
High Light:

perimeter led display

,

perimeter led screen

Large Outdoor Stadium LED Display Commercial Center High brightness PH10mm Video LED sign



Advantage:



Lightweight
The aluminum die-casting technology makes the single cabinet as light as 8kg, which is convenient for assembly and transportation. Are you planning to move the display after some timer? Make it a rental display!

Seamless connection
The aluminum die-casting will have less tolerance , the precision reach ±0.05m so as to achieve seamless assembly. Stronger and better looking compared to normal cabinets.

Modular and easy to maintain
There is almost no more ribbon cables for the cabinet and module. Everything connected straight on the PCB hub. Less cables means less possible problems. And no need to disassemble the whole screen for maintenance. Each component can be detached individually for that purpose.

High brightness
For our outdoor HD LED Display series (P3.2, P3.9, P4.8, p6.25, P7.8), brightness: approx 7000cd/m² ~ 8000cd/m² (Standard Adjusted). The higher brightness than conventionally spliced screens make the picture more colorful and vivid even in bright environments.

High refresh rate
The driving is using the new Taiwan technology for high performance. The chips can generate a speed of > 3840Hz refresh rate to ensure the picture wrinkle-less, line-less and stable.

No Fuzzy effect
It is because we use the highest technology of driving chips that also will avoid the
fuzzy effect.



Large Outdoor Stadium LED Display Commercial Center High brightness PH10mm Video LED sign 0



p10 SMD full color led screen technology parameter

Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m^2 10000/m^2
Module resolution 32dotsx16dots
Module size/mm 320x160mm
View distance 5-150m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness 6000 cd/m^2
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/4scan
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >10000hours
Life time 100000hours
Life-all-white(brightness halving) 100000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/^2 <700W
Average power:/^2 <200W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Large Outdoor Stadium LED Display Commercial Center High brightness PH10mm Video LED sign 1Large Outdoor Stadium LED Display Commercial Center High brightness PH10mm Video LED sign 2



Super brightness single color LED billboard advertising

In the led billboard /panel series, The module design of the LED display enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display series are applied to large public squares. sport centers casino signage,public service announcement displays,media,commercial promotion and other large scale applications.

1, Superb brightness and color uniformity and reproduction. Brightness variances within+/-2.5%

2, High reliability: data hot backup aims to avoid any communication risks during the show; support automatic fault detection

3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition





♦ Production process:



1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



♦ Packaging and shipping








♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

Large Outdoor Stadium LED Display Commercial Center High brightness PH10mm Video LED sign 4

Large Outdoor Stadium LED Display Commercial Center High brightness PH10mm Video LED sign 5



♦ Applications



--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.



♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.



Large Outdoor Stadium LED Display Commercial Center High brightness PH10mm Video LED sign 6
