mobile truck p8 smd 3535 led display, Led Advertising Screens, flexible use

mobile truck p8 smd 3535 led display, Led Advertising Screens, flexible use

  • mobile truck p8 smd 3535 led display,  Led Advertising Screens,  flexible use
  • mobile truck p8 smd 3535 led display,  Led Advertising Screens,  flexible use
mobile truck p8 smd 3535 led display,  Led Advertising Screens,  flexible use
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P8
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: The Mobile Led Display Module Size(W * H): 256mm*128mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 8mm Module Qty: 1pcs
Type: Free Standing Resolution(W*H): 32dots*16dots
High Light:

truck mounted led screen

,

digital led sign

mobile truck p8 smd 3535 led display, Led Advertising Screens, flexible use

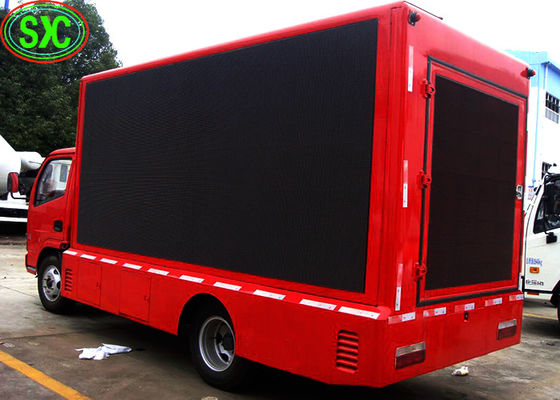

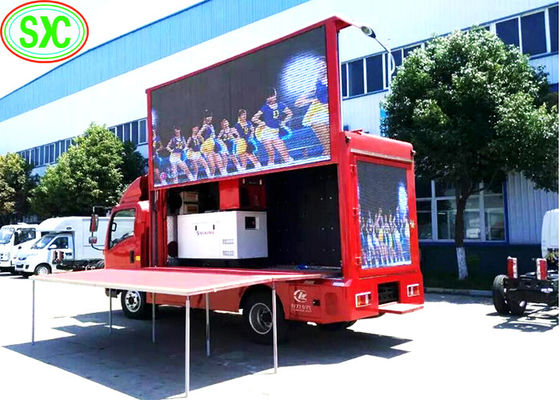

Vehicle-carried/Mobile LED Display


Vivid and exact image, minimum noise, advanced test equipment, support any PC operation system
and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle

Super brightness single color LED billboard advertising
In the double color display series, The module design of the LED display enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display series are applied to large public squares. sport centers casino signage,public service announcement displays,media,commercial promotion and other large scale applications.
1, Super brightness and color uniformity and reproduction. Brightness variances within+/-2.5%
2, High reliability: data hot backup aims to avoid any communication risks during the show; support automatic fault detection
3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition

Methods for Quality Assurance
a. Aging

100% fully test      Condition: 72 hours with 256 gray level
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range


The detailed parameter as follows.

1,  Item Name

  technology parameter( the double color led display)

2,  pixel tube:

   pixel pitch:8mm;  primary colors: pure red+pure green+pure blue ,
   color composing: 1R1G1B
   Density: 10000dots/sq m;  SMD3528

3 , unit box

  module size:256mm×128mm;  Module resolution:32X16
  cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

4, whole screen:

the optimum viewing angel :horizontal 110°, vertical 50°
viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C  optional)    relative humidity:≤95%RH;   Drive IC ET6024



5, operating voltage

AC220V±10% or 110V±10% ,average consumption:500 W/sq m
  max consumption:≤650 W/ sq m

6, main parameter

1) driving mode: 1/4scan
2) refreshing rate:≥400Hz/s
3) frame frequency:≥60Hz/s
4) gray scale/color:≥16.7Mcolors(Synchronized)
5) manage gray:≥72bit
6) brightness:≥5000cd/sq m
7) color temperature condition:3500K~9500K,be adjustable
8) adjusting style of brightness: hand movement/auto
9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.
10) average trouble-free time:≥5000hours
11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm
12) switch power loading:5V/40A
13) display mode of computer:1024×768



Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.


Competitive Advantage:
1.  2 years’ warranty with free repair service
2.  24/7 Hours online Remote Support
3.  Solution and PCB design
4.  Free factory training
5.  On site installation instruction and regular inspection
6,  Small order accepted.


The epistar Led chip. with SMD and DIP Technology .

we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available

The wire or wireless controll system are available .( 3g and wifi controll will be welcome)


The steer consturction is very stable for led display,and you can purchase from your local market .


The package and shippment


we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
we can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large production ability ,
you can feel free about this . By air ,by train, by sea?


Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.

       Any question,do not hesitate to contact me,i am always here for you.
