Large High Resolution P5 Hanging LED Display Video 1R1G1B Pixel Composing

Large High Resolution P5 Hanging LED Display Video 1R1G1B Pixel Composing

  • Large High Resolution P5 Hanging LED Display Video 1R1G1B Pixel Composing
  • Large High Resolution P5 Hanging LED Display Video 1R1G1B Pixel Composing
Large High Resolution P5 Hanging LED Display Video 1R1G1B Pixel Composing
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P5
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P5 Hanging Led Display Module Size(W * H): 160mm*160mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 5mm Module Qty: 1pcs
Type: Free Standing Resolution(W*H): 32dots*32dots
High Light:

led moving sign

,

full color led screen

Large High resolution P5 Hanging LED Display Video With 32dots x 32dots outdoor advertising led display screen


Shenzhen Shichuangxinke Electronic Co.,Ltd is a professional and honest manufacturer of all kinds of led displays.our goal is supply better quality products and offer better service to our customers.so we use good quality raw material, accurate technique and careful inspection,using virtual pixels, better viewing effect for both text & graphic and video.our products are with high color uniformity and clear image,high brightness and adjustable according to the application environment.

The feature of our high definition led hanging display

1, With the hanging bar design, easy to assemble and hang
2. It can be used indoor and outdoor .very high definition and quality.
3. 2 years warranty and more than 10 years life use
4. DC5V and AC110-220V
5. Pixel composing :1R1G1B l
6. Can be used in any environment

The detailed parameter as follows.

1,  Item Name

  technology parameter

2,  pixel tube:

   pixel pitch:5mm;  primary colors: pure red+pure green+pure blue ,
   color composing: 1R1G1B
   Density 10000dots/sq m;

3 , unit box

  module size:160mm×160mm;  Module resolution:32dots*32dots
  cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

4, whole screen:

the optimum viewing angel :horizontal 110°, vertical 50°
viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C  optional)    relative humidity:≤95%RH;   Drive IC ET6024


5, operating voltage

AC220V±10% or 110V±10% ,average consumption:500 W/sq m
  max consumption:≤650 W/ sq m

6, main parameter

1) driving mode: 1/4 scan
2) refreshing rate:≥400Hz/s
3) frame frequency:≥60Hz/s
4) gray scale/color:≥16.7Mcolors(Synchronized)
5) manage gray:≥72bit
6) brightness:≥7000cd/sq m
7) color temperature condition:3500K~9500K,be adjustable
8) adjusting style of brightness: hand movement/auto
9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.
10) average trouble-free time:≥5000hours
11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm
12) switch power loading:5V/40A
13) display mode of computer:1024×768

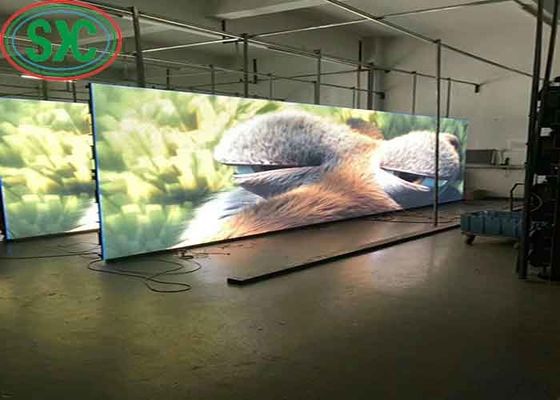

 Large High Resolution P5 Hanging LED Display Video 1R1G1B Pixel Composing 0


2. Features :
Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system
and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle


 Methods for Quality Assurance
a. Aging
100% fully test

Condition: 72 hours with 256 gray level

b. Vibration Testing
Condition: 3-5 min up and down in 5mm range

Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.


Payment and delivery



1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.



♦ Why choose us:

Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.

Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.

Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.


♦ FAQ

What kind of payment terms you can accept ?
We can accept T/T and Western Union.

What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.

What is your delivery time ?
Within 7-35 days according to your area and quantity.

Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.

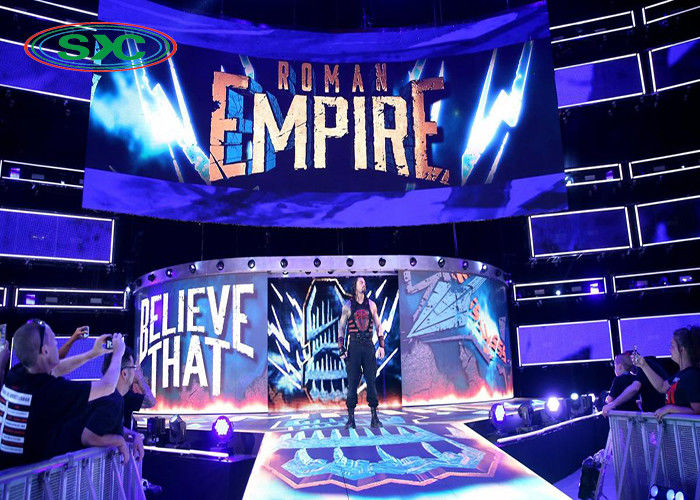

Large High Resolution P5 Hanging LED Display Video 1R1G1B Pixel Composing 2
