Stage Rental Full color P6 Advertising LED Screens Modules Size 192mm x 192mm

Stage Rental Full color P6 Advertising LED Screens Modules Size 192mm x 192mm

    • Stage Rental Full color P6 Advertising LED Screens  Modules Size 192mm x 192mm
    • Stage Rental Full color P6 Advertising LED Screens  Modules Size 192mm x 192mm
    • Stage Rental Full color P6 Advertising LED Screens  Modules Size 192mm x 192mm
    • Stage Rental Full color P6 Advertising LED Screens  Modules Size 192mm x 192mm
    • Stage Rental Full color P6 Advertising LED Screens  Modules Size 192mm x 192mm
  • Stage Rental Full color P6 Advertising LED Screens  Modules Size 192mm x 192mm

    Product Details:

    Place of Origin: China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: ALS-F13

    Payment & Shipping Terms:

    Minimum Order Quantity: No MOQ,more qty and more discounts
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 5000sqm per month
    Detailed Product Description
    Product Name: Stage Rental Full Color P6 Advertising LED Screens Modules Size 192mm X 192mm Usage: Indoor
    Pixels: 6mm Led Type: SMD3528
    Tube Chip Color: Full Color Display Function: Video
    Waterproof: IP30 Cabinet: Steel Or Aluminum For Options

    ♦ Product





    Stage Rental Full color P6 Advertising LED Screens  Modules Size 192mm x 192mm





    ♦ Applications



     --- Outdoor and indoor advertising, digital billboards, advertising companies
     --- Sports halls, fields, playgrounds,school church
     --- Airports, bus stations and railway passenger terminals.
     --- Facades of shopping malls, department stores, banks and car dealerships.
     --- Architecture and social projects, information systems in cities.

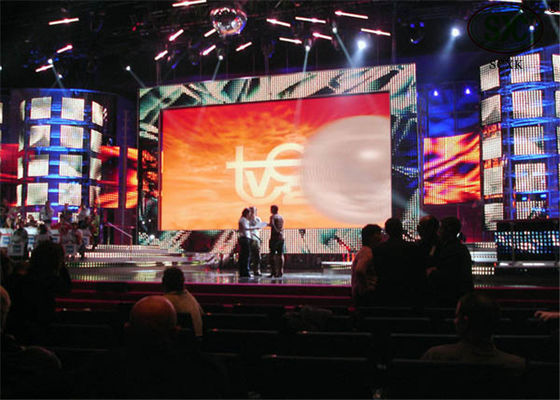

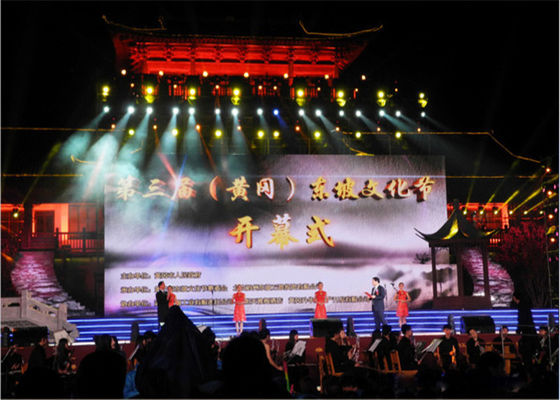

     --- Show-business, concerts, festivals, motor shows and other public events.









    ♦ Product specification

    indoor  SMD P6
    Lamp size 3528
    Resolution/mm 6
    Pixel configuration RGB  3 in 1
    Pixel density/pixels/m² 27777/m²
    Module resolution 32x32
    Module size/mm 192x192
    View distance ≥6m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >1400cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 120(degrees)
    Signal Process bit 10 or 14 bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
    Driving mode Constant driving current
    Scanning mode 1/16
    Frame rate 60Hz
    Refresh frequency >1200Hz
    Control mode Computer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡ <550W
    Average power:/㎡ <250W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast  (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%





























    ♦ Production process:



    1) Incoming Inspection→2)SMD→3)Plug-in

    →4) Wave Soldering→5)After Welding→6)Testing

    →7) Semi Finished Aging→8)Module Assembly

    →9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



    ♦ Packaging and shipping



    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.





    ♦ Why choose us:

    Continues Quality

    With more than 10 years experience in led display producing,equipments are updated regularly.What’s

    more,unique standardized and module production ensure our products continuous quality.



    Competitive Price

    With large scale production capacity and professional production technology,our company have built

    effective modular production.We always stick to promote the technical innovation and reduce cost to

    benefit customers.



    Fast Delivery

    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

    inventory will be used to maintain your uninterrupted supply of the products.



    Perfect Service

    Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

    you.

    After-sales:We will track the products usage and then constantly perfect our products.





    ♦ Frequently Asked Questions



    What kind of payment terms you can accept ?

    We can accept T/T and Western Union.



    What about your Led Display  quality ?

    Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

    our products continuity.



    What is your delivery time ?

    Within 7-35 days according to your area and quantity.



    Is your LED display competitive ?

    Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

    our led display’s competitiveness.



    ♦ Our advantages

    Professional Manufacturer of led display



    1. OEM service,No MOQ

    2. Easy installation,regular items in Stocks

    3. Offering free design drawing as requested.

    4. Remote controlling and adjusting are available.

    5. Wooden case or flight case,you are the boss.

    6. Your reply will be replied within 24 hours.

    7. Fast delivery: Usually 6-8 working days

    8. Excellent R&D team,factory Price and assure you quality goods.
