3840 Refresh Video Led Display Full Color Asynchronous Control

Product Details:

Place of Origin:	shenzhen,China
Brand Name:	SCX
Certification:	CE,CB,IEICC,FC
Model Number:	indoor p3.91

Payment & Shipping Terms:

Minimum Order Quantity:	8 sqm
Price:	negotiation
Packaging Details:	wooden case，flight case
Delivery Time:	5-7 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	3600 sqm per month

Contact Now

Detailed Product Description

Brightness:	1200-1500nits	Control System:	Synchronous/Asynchronous
Display Type:	Indoor Full Color LED Display	Gray Scale:	14bit
IP Rating:	IP40	Input Voltage:	AC110V/220V
Lifespan:	100,000 Hours	Refresh Rate:	1920Hz
Warranty:	2 Years
High Light:	3840 refresh led display full color , asynchronous control led display full color

p3.91 envisual indoor 500mmx1000mm audio visual advertising led screen display rental china with 3840 refresh, led video

Screen Details Parameter as Below

Module
Dimension	250*250mm	Resolution	64*64 dots
Pixel Pitch	3.91mm	Pixel Density	65536
LED Lamp	2121SMD	Pixel configuration	3 in 1
Standard Panel
Dimensions(w x h x d)(mm)	500*1000	Module Quantity	8
Physical Resolution (w x h)	128*256	Physical Pixels (total)	32768
Weight/Panel (kgs)	13.5	Material	Die casting aluminum
Average Power/sqm (watts)	380	Max Power/sqm(watts)	800
Parameter
Screen Size (Could be Customized)	9.8ft (W) * 6.5ft (H) or 3m (W) * 2m (H)
Panel Quantity (PCS)	6pcs tall and 2pcs high (Also could be customized)
Maintenance	Rear
Brightness	800cd
View Angle	Horizontal 160 deg. Vertical 140deg.
Minimum Viewing Distance	3.91 meter
Brightness Control	256 level
Gray scale	13 bit
Refresh frequency	≥1920Hertz
Driving mode	1/16S
Input power frequency	50 or 60 Hertz
Input Voltage	200～240 Volt or 100-120Volt
Blind spot rate	＜1/10000
Lifetime at 50% brightness	100000 hours
Ingress Protection	Ip40
Operating temperature	﹣20 ～﹢50 ℃
Operating humidity	10％～ 90％
Control distance	CAT5 cable:＜100 m; Single mode fiber:＜10 km
Signal input format(with video processor)	AV, S-Video, VGA, DVI,DP, HDMI, SDI
Operating system	Windows (2000/XP/Vista)

Installations

Specification

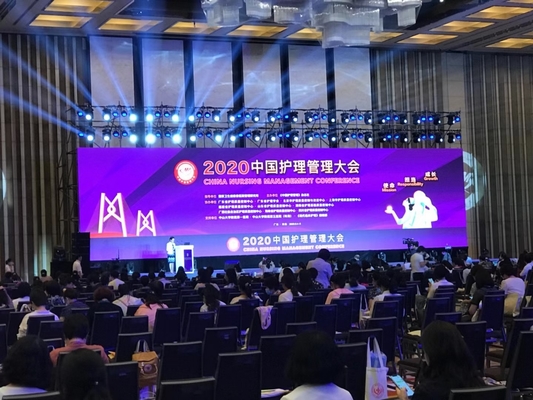

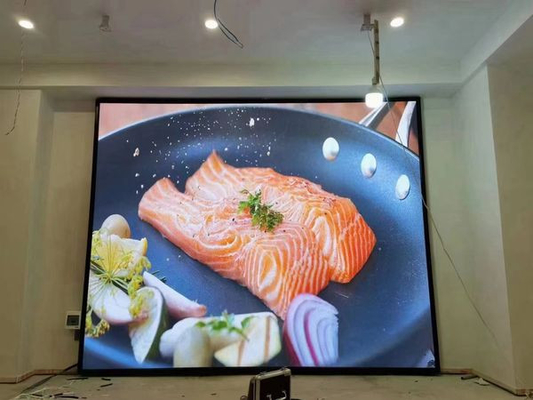

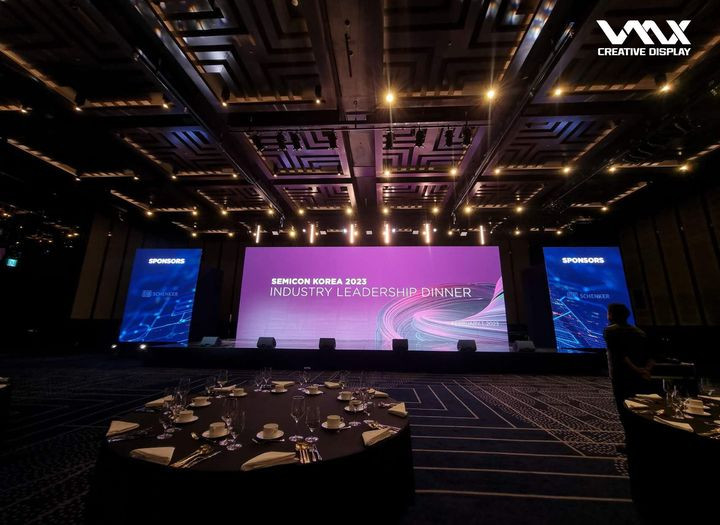

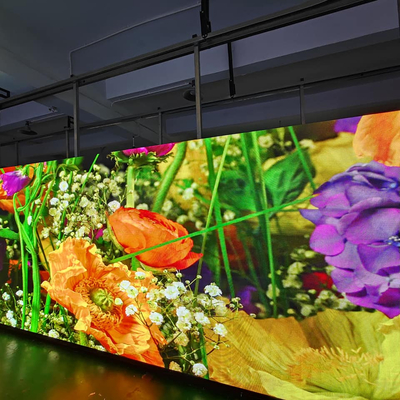

Project cases

Q1. If you are a factory?

A: Yes, we can factory, and focus on led display for 8 years.

Q2. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q3. What about the lead time?

A: Sample needs 5-7 days, mass production time needs 12-25 days.

Q4. Do you have any MOQ limit for led screen order?

A: Low MOQ, 1pc for sample checking is available

Q5. How do you ship the goods and how long does it take to arrive?

A: We usually ship by express (DHL, UPS, FedEx ). It usually takes 3-5 days to arrive.

Airline and sea shipping also optional.

Q6. How to proceed an order for led display?

A: Firstly let us know your requirements or application, liking project size, rental or fixed installation.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the order and places deposit for formal order.
