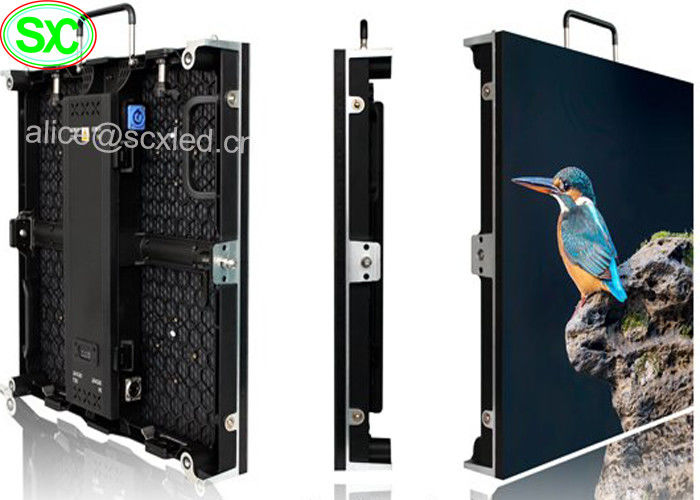

P4 Indoor Full Color Flexible LED Display RGB 3 in 1 WIth SMD2121, TV Screen

P4 Indoor Full Color Flexible LED Display RGB 3 in 1 WIth SMD2121, TV Screen

    • P4 Indoor Full Color Flexible LED Display RGB 3 in 1 WIth SMD2121, TV Screen
    • P4 Indoor Full Color Flexible LED Display RGB 3 in 1 WIth SMD2121, TV Screen
    • P4 Indoor Full Color Flexible LED Display RGB 3 in 1 WIth SMD2121, TV Screen
  • P4 Indoor Full Color Flexible LED Display RGB 3 in 1 WIth SMD2121, TV Screen

    Product Details:

    Place of Origin: China
    Brand Name: SCX
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: SMD P4

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 5000sqm per month
    Detailed Product Description
    Product Name: P4 Indoor Full Color Flexible LED Display RGB 3 In 1 WIth SMD2121, TV Screen Tube Chip Color: Full Color
    Cabinet: Steel Or Aluminum For Options Usage: Indoor
    Lamp Size: 2020 Led Type: SMD2020

    P4 Indoor Full Color Flexible LED Display RGB 3 in 1 WIth SMD2121, TV Screen



    ♦ Quick Detail

    1. Super lighter and thinner;


    2. Easy to connection and uninstall;


    3. It can display,words,texts,graphics and videos.

    4. High resolution and high frequency dynamic image.



    ♦ Applications

    LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.



    ♦ Our advantages

    Professional Manufacturer of led display

    1. OEM service,No MOQ

    2. Easy installation,regular items in Stocks

    3. Offering free design drawing as requested.

    4. Remote controlling and adjusting are available.

    5. Wooden case or flight case,you are the boss.

    6. Your reply will be replied within 24 hours.

    7. Fast delivery: Usually 6-8 working days

    8. Excellent R&D team,factory Price and assure you quality goods.



    ♦ Product specification

    indoor  SMD P4
    Lamp size 2121
    Resolution/mm 4
    Pixel configuration RGB  3 in 1
    Pixel density/pixels/m² 62500/m²
    Module resolution 64x32
    Module size/mm 128x128
    View distance ≥4m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >2500cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 14 bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
    Driving mode Constant driving current
    Scanning mode 1/16
    Frame rate 60Hz
    Refresh frequency >1200Hz
    Control mode Computer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡ <1100W
    Average power:/㎡ <280W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%



    ♦ Production process:

    1) Incoming Inspection→2) SMD→3) Plug-in

    →4) Wave Soldering→5) After Welding→6) Testing

    →7) Semi Finished Aging→8) Module Assembly

    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



    ♦ Packaging and shipping

    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.



    ♦ Why choose us:

    Continues Quality

    With more than 10 years experience in led display producing,equipments are updated regularly.What’s

    more,unique standardized and module production ensure our products continuous quality.



    Competitive Price

    With large scale production capacity and professional production technology,our company have built

    effective modular production.We always stick to promote the technical innovation and reduce cost to

    benefit customers.



    Fast Delivery

    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

    inventory will be used to maintain your uninterrupted supply of the products.



    Perfect Service

    Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

    you.

    After-sales:We will track the products usage and then constantly perfect our products.

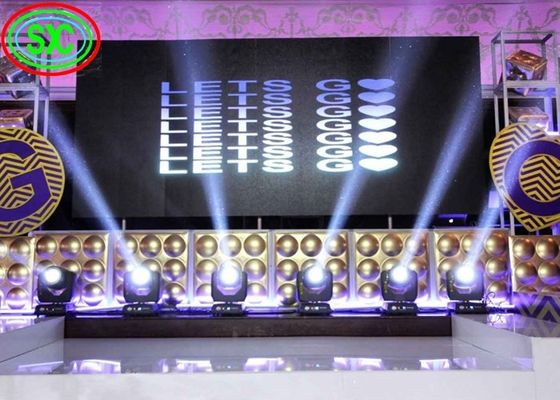

    ♦ Our project

    P4 Indoor Full Color Flexible LED Display RGB 3 in 1 WIth SMD2121, TV Screen
