Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | Shenzhen China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | p10 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | D/A, T/T |
| Supply Ability: | 5000sqm per month |
| Pitch Size: | 10mm | Dot Density: | 10000dots Per Sqm |
|---|---|---|---|
| Capsulation: | DIP | Certificates: | CE,RoHS,FCC,ISO |
| Warranty: | 3 Years | Red Parameter: | 625-630nm |
| High Light: | full color led signs outdoor,full color outdoor led display |
||
high resolution Waterproof DIP SMD P10 led panel full color led video display outdoor

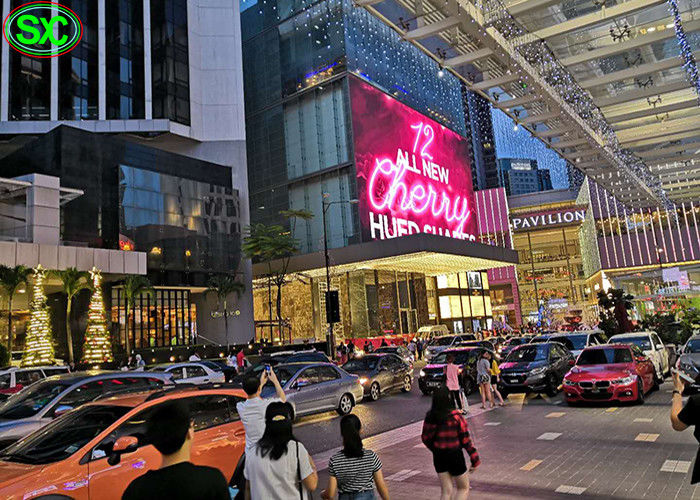

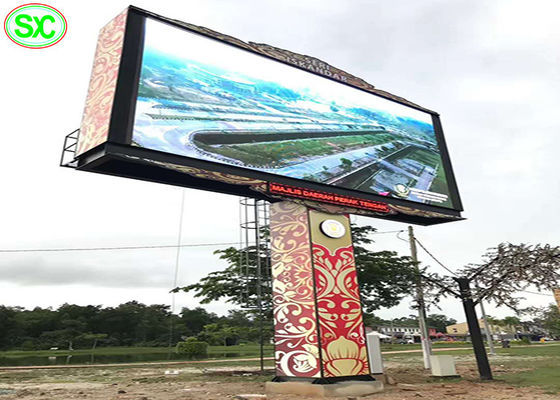

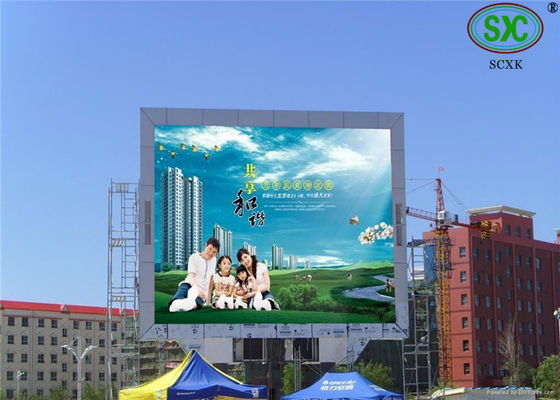

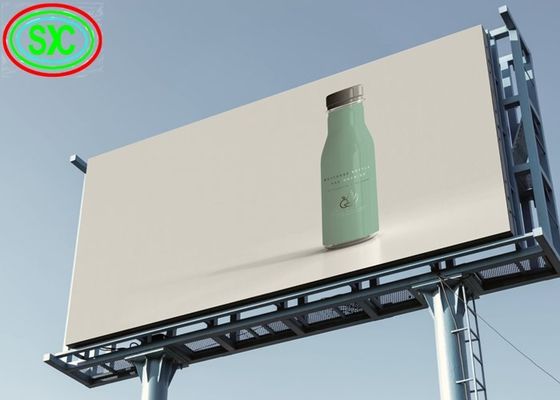

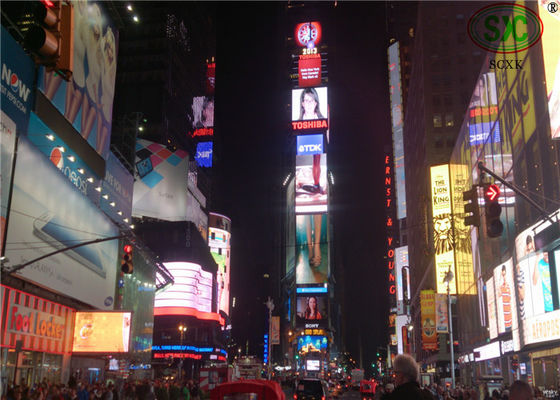

Led display screen can be used in many kinds of advertising/message showing in all kinds of outdoor environmental situations. Under different design content, the led display screen control system shall out put the different details of unique content for each customer demand.
Features
1.Classic module design, superior product performance, stability.
2.Uniform color, high contrast, beautiful natural picture.
3.New perspective optimization design, covering the mainstream audience.
4.Anti UV, anti deformation module suite to protect the screen body deformation.
5.Patent design with unique color mask processing, showing the industry leading ultra high contrast.
6.Multiple waterproof casing design, single box full inspection factory, the protection level IP65 mature signal transmission architecture, equipped with the upgraded version of power management technology, the use of more secure and reliable.
7.Patent design with unique color mask processing, showing the industry leading ultra high contrast.
8.Ultra low temperature free fan design, low temperature rise, small attenuation, long service life.
Parameters:
| outdoor SMD P10 | ||||||||||||||
| Resolution/mm | 10 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 10000/m² | |||||||||||||
| Module resolution | 16x16 | |||||||||||||
| Module size/mm | 160x160 | |||||||||||||
| View distance | 4-250m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <950W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
Outdoor LED Display series :
1. Automatic brightness control,super processing ability,strong colour restoration.
2. Support various interfaces and signal sources.
3. Advanced digital control technology, excellent effect.
4. High brightness,even in direct,full-on sunlight to ensure you attract more audience to get short ROI of your full color outdoor led display screen's investment.
5. Antiseptic and durable, can be used outdoor in all weather.
LED module has easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system.
With full aluminum alloy structure for light weight and waterproof advantages, SCXK outdoor LED display is an perfect external multimedia LED display system designed for changeable and adverse outdoor environment.
