Waterproof Advertising Outdoor Full Color LED Display Screen Fixed Installation with CE ROHS FCC CB SASO

Waterproof Advertising Outdoor Full Color LED Display Screen Fixed Installation with CE ROHS FCC CB SASO

Waterproof Advertising Outdoor Full Color LED Display Screen Fixed Installation with CE ROHS FCC CB SASO
Waterproof Advertising Outdoor Full Color LED Display Screen Fixed Installation with CE ROHS FCC CB SASO
Waterproof Advertising Outdoor Full Color LED Display Screen Fixed Installation with CE ROHS FCC CB SASO
Product Details:
Place of Origin: Shenzhen
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL/CB/IECEE
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Module Size: 320mm*160mm Module Resolution: 32*16
LED Encapsulation: 1R1G1B Pixel Density: 10000 Dots/sqm
Cabinet Size: 960*960mm Pixel Pitch: 10 Mm
Driving Mode: 1/4 Brightness: ≥6500cd
Contrast: ≥2000:1 Display Color: 1.07 Billion
High Light:

full color outdoor led display

,

outdoor full color led screen

Waterproof Advertising Outdoor Full Color LED Display Screen Fixed Installation with CE ROHS FCC CB SASO Certificates



Advertising Led Screens Applications

--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.





Advertising Led Screens Specifications

Pixel pitch
3.91mm
4mm
4.81mm
Module size
250mm*250mm
256mm*128mm
250mm*250mm
Physical density
65746 dot/m²
625d00 dot/m²
43264 dot/m²
Pixel configuration
1R1G1B
1R1G1B
1R1G1B
LED Encapsulation
SMD 1921
SMD 1921
SMD 2727
Display resolution
64*64=4096 dots
64*32=2048 dots
52*52=2704 dots
Cabinet
500*500 mm 500*1000 mm
512*512 mm
500*500 mm 500*1000 mm
Module port
HUB75
HUB75
HUB75
Working voltage
5VDC
5VDC
5VDC
Module consumption
≤42W
≤32W
≤42W
Equilibrium brightness
≤3600 cd/m²
≤5500 cd/m²
≤4000 cd/m²
IP rating
The back IP40, The front IP65
The back IP40, The front IP65
The back IP40, The front IP65
Pixel pitch
5mm
6mm
8mm
10mm
Module size
320mm*160mm
192mm*192mm
265mm*128mm
320mm*160mm
Physical density
40000 dot/m²
111111 dot/m²
15625 dot/m²
10000 dot/m²
Pixel configuration
1R1G1B
1R1G1B
1R1G1B
1R1G1B
LED Encapsulation
SMD 2727
SMD 2727
SMD 3535
SMD 3535
Display resolution
32*32=1024 dots
32*32=1024 dots
32*16=512 dots
32*16=512 dots
Cabinet
640*640 mm
576*576 mm
512*512 mm
640*640 mm
Module port
HUB75
HUB75
HUB75
HUB75
Working voltage
5VDC
5VDC
5VDC
5VDC
Module consumption
≤42W
≤28W
≤28W
≤28W
Equilibrium brightness
≤5000 cd/m²
≤5500 cd/m²
≤5000 cd/m²
≤5500 cd/m²
IP rating
The back IP40, The front IP65
The back IP40, The front IP65
The back IP40, The front IP65
The back IP40, The front IP65





Advertising Led Screens Production Process

1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing

Waterproof Advertising Outdoor Full Color LED Display Screen Fixed Installation with CE ROHS FCC CB SASO 0

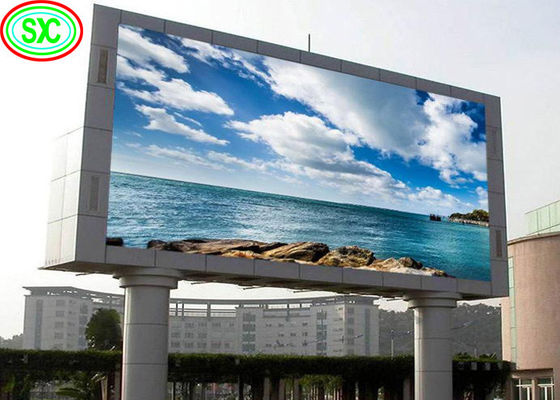

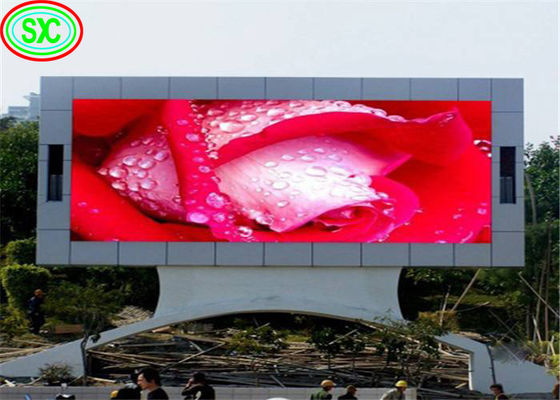

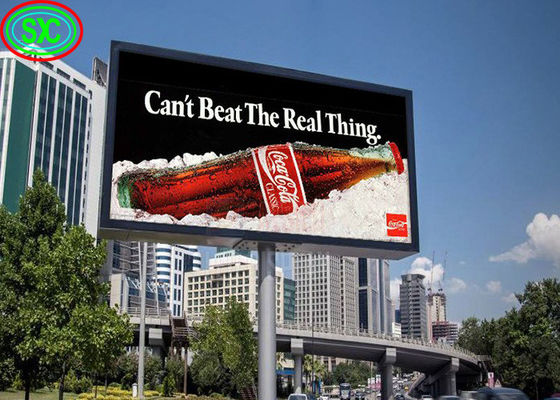

Advertising Led Screens Projects

Waterproof Advertising Outdoor Full Color LED Display Screen Fixed Installation with CE ROHS FCC CB SASO 1





Why choose us

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.





FAQ

1.Q:Are you a factory or trading company?

A:We are a factory,located in Dalang,Longhua District .



2.Q:What kind of payment terms you accept?

A:We accept T/T,Western Union,MoneyGram etc.



3.Q:What's packaging?

A:1.Flight case packaging

2.Wooden case packaging

3. 36pcs in one case packaging

4.Customized packaging



4.Q:Does you have CE/ROHS certificates?

A:Yes, we offer the CE & ROHS certificates , What's more, we have FCC, SAA, BIS, SASO etc to meet different countries customer's need



5.Q:What's the shipping method,shipping time?

A:Our products could be shipped by Sea, by Air, and by Express.

by sea: 15-20 days; by air: 3-7 days ;by express:3-6days
