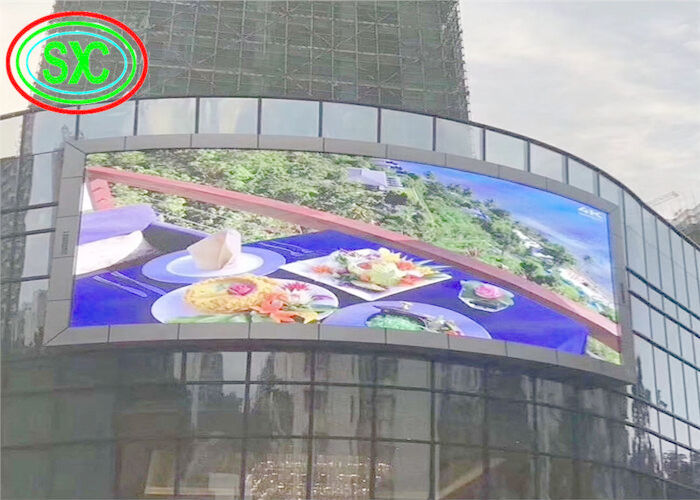

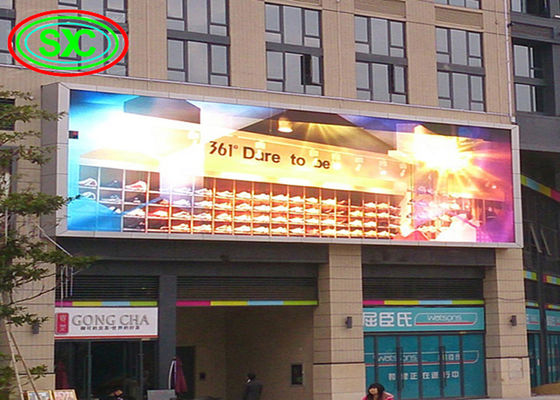

High Brightness Outdoor SMD RGB P10 Full Color Led Display for Advertising

High Brightness Outdoor SMD RGB P10 Full Color Led Display for Advertising

  • High Brightness Outdoor SMD RGB P10 Full Color Led Display for Advertising
  • High Brightness Outdoor SMD RGB P10 Full Color Led Display for Advertising
  • High Brightness Outdoor SMD RGB P10 Full Color Led Display for Advertising
High Brightness Outdoor SMD RGB P10 Full Color Led Display for Advertising
Product Details:
Place of Origin: shenzhen
Brand Name: SCX
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Module Size(W * H): 320*160mm Cabinet Size: 960×960mm
Color Temperature Condition:: 3500K~9500K,be Adjustable Frame Frequency: :≥60Hz/s
Relative Humidity:: ≤95%RH Brightness:: ≥2000cd/sq M
High Light:

full color led signs outdoor

,

outdoor full color led screen

High Brightness Outdoor SMD RGB P10 Full Color Led Display for Advertising







Features



1,  Item Name

  technology parameter

2,  pixel tube:

   pixel pitch:16mm;  primary colors: pure red+ pure green +pure blue;

   color composing: 1R1G1B

   Density 3906dots/sq m;  DIP346

3 , unit box

  module size:160mm×160mm;  Module resolution:16X16

  cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

4, whole screen:

the optimum viewing angel :horizontal 110°, vertical 50°

viewing distance:10-300m;working temperature:-20°C~+45°C(-30°C ~+50°C  optional)    relative humidity:≤95%RH;   Drive IC ET6024



5, operating voltage

AC220V±10% or 110V±10% ,average consumption:500 W/sq m

  max consumption:≤650 W/ sq m

6, main parameter

1) driving mode: static scan

2) refreshing rate:≥400Hz/s

3) frame frequency:≥60Hz/s

4) gray scale/color:≥16.7Mcolors(Synchronized)

5) manage gray:≥72bit

6) brightness:≥2000cd/sq m

7) color temperature condition:3500K~9500K,be adjustable

8) adjusting style of brightness: hand movement/auto

9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.

10) average trouble-free time:≥5000hours

11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm

12) switch power loading:5V/40A

13) display mode of computer:1024×768







































































































Process





High Brightness Outdoor SMD RGB P10 Full Color Led Display for Advertising 0









Factory Equipment



1 Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
2 Automatic Glue- pouring Machine, Solder Paste Printing Machine,
3 Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
4 Withstand Voltage Tester, Ground Resistance Tester,
5 Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
6 Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.









Competitive Advantage



1.  2 years’ warranty with free repair service

2.  24/7 Hours online Remote Support

3.  Solution and PCB design

4.  Free factory training

5.  On site installation instruction and regular inspection

6,  Small order accepted.
