| Place of Origin: | Shenzhen |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL/CB/IECEE |
| Model Number: | P3.91 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Led Pixel: | 3.91mm | LED Shape & Size: | 2 Mm SMD 2121 |
|---|---|---|---|
| Pixel Format: | 1R1G1B | Module Size: | 250mm × 250mm |
| Module Pixles: | 4096dots | Module Weight: | 0.45kg |
| Pixel Density: | 65410dots/sqm | Cabinet Weight: | 7kg |
| Brightness: | ≥1200cd/㎡ | Driving Method: | 1/16 Scanning |
| High Light: | stage background led screen,stage led display |
||
New Design P2.6 P2.9 P3.91 P4.81 indoor outdoor stage rental led display led video wall for Live Event
Stage Led Screen Features
1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
2.Thin cabinet:the thickness is only 6.5 CM, the space of the screen is small , and the entire screen will be more beautiful.
3.Flat screen:smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively. The effect of the display will be more clear and exquisite.
4. Quick dismounting:adopt fast locking structure connected, firm, quick, beautiful.
5. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
6.Concave and convex setup support: client can asselbly any shape of the led wall display to make different show effect compare with common led display panel.
Stage Led Screen Specifications
| Indoor Outdoor Aluminum Stage Rental LED Parameters(straight and Curved Two Panel) | ||
| Pitch/mm | P3.91/P4.81 | P3.91/P4.81/P5.95/P6.25 |
| Module size/mm | 250x250 | 250x250 |
| Density of pixel/(dots/m2) | 65746/43264 | 65535/43264/28224/25600 |
| Pixel composition | 1R1G1B | 1R1G1B |
| Led encapsulation | SMD2121 | SMD1921/2121/3528/27 |
| Resolution of module | 128x64/104x52 | 128x64/104X52/84x42/80x40 |
| Optimum viewing distance | ≥4/5 | ≥3/4/5/6 |
| View angle / ° | 140 H,140 V | 140 H,140 V |
| Average power consumption/W/M2 | 120 | 120 |
| Max power consumption/W/M2 | 250 | 250 |
| Size of cabinet/mm | 500X500/1000X500 | 500X500 / 1000X500 |
| Resolution of cabinet | 128X256/104x208 | 128x256/104x208/84x168/80x160 |
| Weight of cabinet/kg | 11 | 12.5 |
| Driving method | 1/16 1/13 1/7 1/10 scan constant current | 1/13 1/7 1/10 scan constant current |
| Frame frequency / Hz/S | 60 | 60 |
| Refresh rate Hz/S | ≥1200 | ≥1200 |
| Luminance of white balance | ≥1500 nits | ≥3000/5000/5500 nits |
| Operation of Environmental Temperature/°C | below 20 to above 50 | below 20 to above 50 |
| IP rating | IP43 | IP65 |
| Working vlotage | 110-220 VAC/+/- 10% | 110-220 VAC/+/- 10% |
| Grey scale/color | displaying colors≥16.7M(synchronized) | displaying colors≥16.7M(synchronized) |
| Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | 256 levels of each color(manually),100 levels of each color(automatically) |

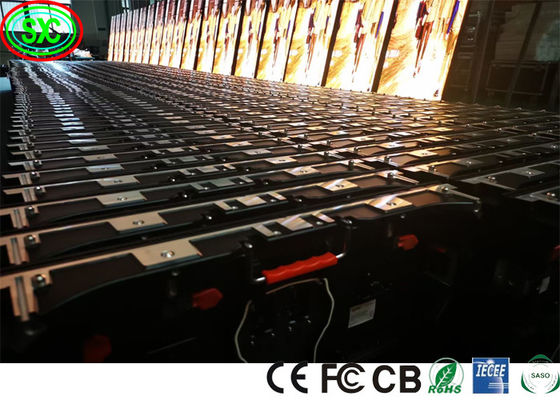

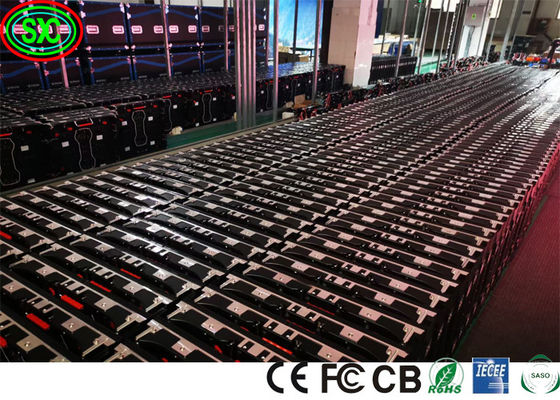

Stage Led Screen Detailed Pictures

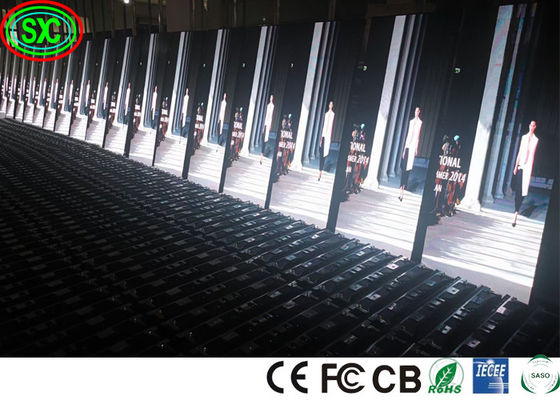

Stage Led Screen Projects
Why choose us
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates , What's more, we have FCC, SAA, BIS, SASO etc to meet different countries customer's need
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea: 15-20 days; by air: 3-7 days ;by express:3-6days
