Indoor Stage Backdrop LED Display Panels Screens High Definition LEDP3 P3.91 P4 P5 Video Wall

Indoor Stage Backdrop LED Display Panels Screens High Definition LEDP3 P3.91 P4 P5 Video Wall

  • Indoor Stage Backdrop LED Display Panels Screens High Definition LEDP3 P3.91 P4 P5 Video Wall
  • Indoor Stage Backdrop LED Display Panels Screens High Definition LEDP3 P3.91 P4 P5 Video Wall
  • Indoor Stage Backdrop LED Display Panels Screens High Definition LEDP3 P3.91 P4 P5 Video Wall
Indoor Stage Backdrop LED Display Panels Screens High Definition LEDP3 P3.91 P4 P5 Video Wall
Product Details:
Place of Origin: Shenzhen
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P3.91
Payment & Shipping Terms:
Minimum Order Quantity: 5 Square Meter/Square Meters
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixel Pitch: 3.91mm Pixel Format: 1R1G1B
Module Pixles: 4096dots Module Resolution: 64dots × 64dots
Module Size: 250mm × 250mm Cabinet Size(WXH): 500x500mm
Cabinet Resolution: 128dots X128dots Pixel Density: 65410dots/m2
Material: Die-casting Aluminum
High Light:

stage background led screen

,

stage led display

Indoor Stage Backdrop LED Display Panels Screens High Definition LEDP3 P3.91 P4 P5 Video Wall



Stage Led Screens Products function introduction



1) High intensity and can be adjusted, so can meet the request of the customers according the application environment;
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light;
3) To pictures and character, have clear, exquisite and real display effect;
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion;
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.





Stage Led Screens Technical specification



Pitch size

3.91mm

Module size

250mm*250mm

Module pixel(dots)

64*64

Pixel configuration

1Red,1Green,1Blue

LED chip

Silan/Cree/Nichia

Color scale

65536degree/1.07 billion colors

Pixel density

3906pixels/square meter

View angle(H/V)

120/60degree

Brightness

≥1200cd/sqm

Brightness adjustment

64 level automatic or manual

View distance

10--200m

Power consumption

100-1200/sqm

Net weight

<65kg/square meter

Operating temperature

—25°C~+60°C

Operating humidity

10%—95%RH

Life time

≥100,000hours

Out of control dot

≤3/10,000

Whole Display Flatness

≤1mm Juncture

Exchange frame speed

>150frames per second

Refresh frame frequency

600Hz

Control distance

Cat. 5: 120m (without repeater), single mode fiber:20km,multi mode fiber: 500m

Power

110V/220V±15% 50Hz

Operating system

Windows98/Me/2000/Xp

Drive mode

constant current driving, static scan

Display mode

VGA640X480—VGA1600X1024

Protections for outdoor display

IP65 for front, IP64 for rear

Maintenance way

rear access

Accepting signal

PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

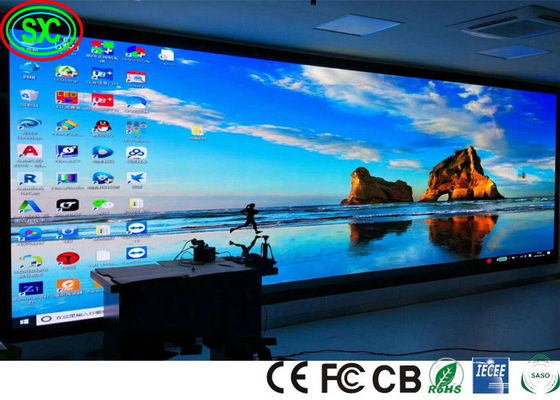

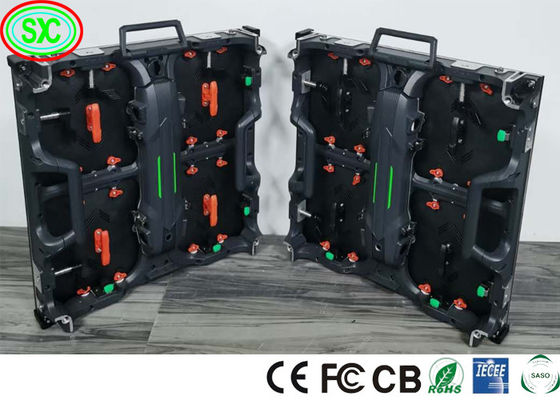

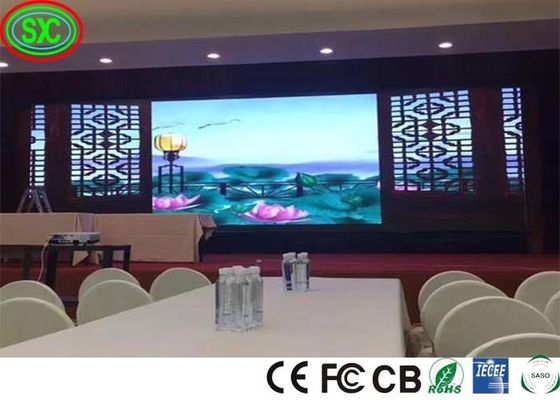

Stage Led Screens Pictures



Indoor Stage Backdrop LED Display Panels Screens High Definition LEDP3 P3.91 P4 P5 Video Wall 0





 Why choose us

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.
