P4 Outdoor Full Color Programmable Large Panel Commercial Advertising Module Video Led Display

P4 Outdoor Full Color Programmable Large Panel Commercial Advertising Module Video Led Display

P4 Outdoor Full Color Programmable Large Panel Commercial Advertising Module Video Led Display
P4 Outdoor Full Color Programmable Large Panel Commercial Advertising Module Video Led Display
P4 Outdoor Full Color Programmable Large Panel Commercial Advertising Module Video Led Display
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL/CB/IECEE
Model Number: P4
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Module Size/mm: 256mm*128mm Resolution: 64*32mm
Pixel Configuration: 1R1G1B Color Temperature Adjustable: 3200K - 10000K
Driving Mode: 1/8 Module Weight: 0.4KG
Pixel Density: 62500 Dots/sqm Brightness: ≥6000cd/㎡
Contrast Ratio: 3000:1
High Light:

full color led signs outdoor

,

outdoor full color led screen

P4 Outdoor Full Color Programmable Large Panel Commercial Advertising Module Video Led Display



Outdoor Full Color Led Display Features

1.Clear picture without flicker and distortion

2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive

3. Low consumption, stable performance, highly durable

4. High brightness & broad viewing angle, brightness can be adjusted automatically or manually

5. 2 years warranty, easy to install & maintenance

6. CE, FCC,ROHS, CB, IECEE




Outdoor Full Color LED Display Specifications


Pixel pitch 3mm 4mm 5mm 6mm 8mm 10mm
Pixel Configuration SMD1921 SMD1921 SMD2727 SMD3535 SMD3535 SMD3535
Pixel density 111,111/sqm 62,500/sqm 40,000/sqm 27,777/sqm 15,625/sqm 10,000/sqm
Module size 192x192mm 256x128mm 320x160mm 192x192mm 256x128mm 320x160mm
Driving method 1/16 Scan 1/8 Scan 1/8 Scan 1/8 Scan 1/4 Scan 1/2 or 1/4 Scan
Image technology Real Pixel Real Pixel Real Pixel Real Pixel Real Pixel Real Pixel
Refresh rate ≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz
Brightness ≥4,000nits ≥4,500nits ≥5,500nits ≥6,000nits ≥6,500nits ≥6,500nits
Best Viewing distance 3m-5m 4m-6m 5m-8m 6m-10m 8m-12m 10m-15m
Max.Power consumption 1380w/sqm
Avg.Power consumption 420w/sqm
Best Viewing angle 140°(H)/140°(v)
Grey scale/colors 65,536 level(color range 281 trillion)
Processing depth 16bit
Brightness control 256 levels automatically
MTBF >9,000hours
Lifetime 100,000hours
Earth Leakage Current <3mA
Protective Grade IP65
Temperature-operating -25℃~45℃
Humidity-operating 10%~95%


Outdoor Full Color Led Display Pictures

P4 Outdoor Full Color Programmable Large Panel Commercial Advertising Module Video Led Display 0
P4 Outdoor Full Color Programmable Large Panel Commercial Advertising Module Video Led Display 1

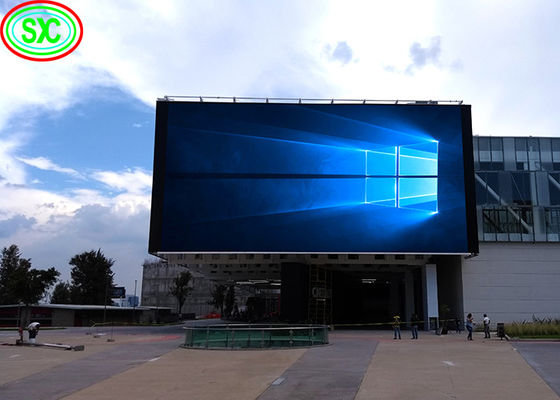

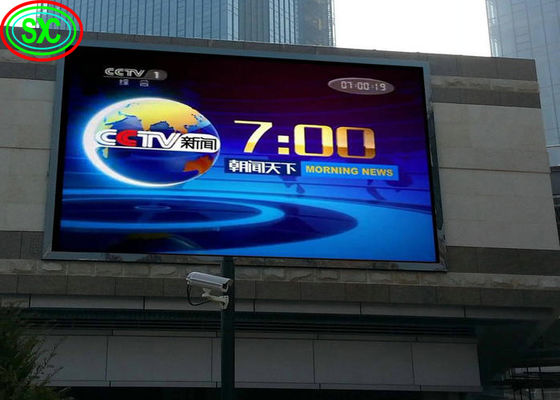

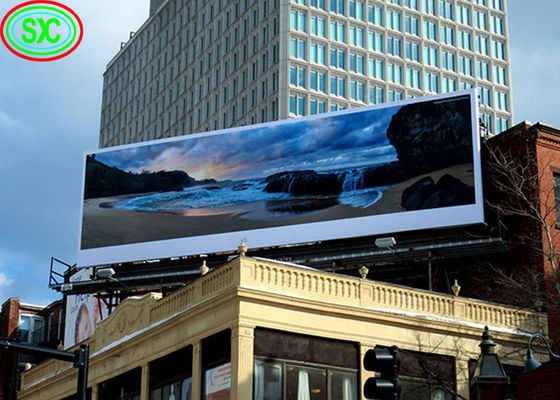

Outdoor Full Color Led Display Projects
P4 Outdoor Full Color Programmable Large Panel Commercial Advertising Module Video Led Display 2



Our service
1. We provide the best service to our every clients. before the order,send all the information to our clients. to help him make the decision. include the size. color. pictures,pack way and shipping way.

2. During the order, we need update the orders and feedback to him. keep him update with his order. such as how is his order,when will be finished,and also take the aging test pictures for his reference. at the same time. provide the packing pictures .after the goods delivery out. provide the tracking number. so that the clients can track his goods at any time.

3. The after-sale service: provide the one year warranty.during this year.the clients can obtain maintain service in free. and also will provide some accessories to the customers.

4. Some products we can provide the certifications. such as CE certification.





FAQ

Q1: Are you trading company or manufacturer ?
A: LEDFUL is a professional LED display manufacturer, having been enrolled in led display industry with professional R&D team and skilled QC team for 12 years.

Q2: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/ Laptop/ PC/Cloud control. It’s very easy and convenient to control.

Q3: What is your best service?
A: One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well.
5…6…etc.

Q4: How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific
delivery time depends on the items and the quantity of your order.

Q5:How about your Warranty Term?
A: 3-year warranty. Structure design, installation problem, program the screen, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
