High definition advetising led SMD P1.25 P1.5625 P1.667 P1.875 full color indoor LED Display

High definition advetising led SMD P1.25 P1.5625 P1.667 P1.875 full color indoor LED Display

  • High definition advetising led SMD P1.25 P1.5625 P1.667 P1.875 full color indoor LED Display
  • High definition advetising led SMD P1.25 P1.5625 P1.667 P1.875 full color indoor LED Display
  • High definition advetising led SMD P1.25 P1.5625 P1.667 P1.875 full color indoor LED Display
High definition advetising led SMD P1.25 P1.5625 P1.667 P1.875 full color indoor LED Display
Product Details:
Place of Origin: SHENZHEN
Brand Name: SCX
Certification: CE/ROHS/FCC/ISO/UL/CB
Model Number: P1.25
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Module Size: (W)200mm*150mm(H) Pixel Composition: 1R1G1B
Module Resolution: 160*120 The Optimum Viewing Angle: H:140° V:120°
Maximum PowerConsumption: 600W/m2 Refresh Rate: ≥1920Hz
White Balance Luminance(CDm2): ≥1000CD/m2 Driving Mode: 1/20 Scanning
Average Power: 25W
High Light:

led video screen rental

,

led rental screen

High definition advetising led SMD P1.25 P1.5625 P1.667 P1.875 full color indoor LED Display



Advertising Led Screens Features

1. LEDs. we select super led tips with high brightness, broad viewing angle(H140degree, V140degree), all the LEDs are ageing for 72 hours before assembly,
when in modules, also aging for 72 hours, after assembly into a screen, still aging 72 hours. so the final LEDs are aging at least for 216 hours, up to 9 days.

2. Modules. we use 2R1G1B pixel configuration to realise high brightness. you may find some lower price suppliers but also same brightness. if you note,
maybe they use is 1R1G1B, in this case, can cut down much cost but also cut down the life of the display. why? because to reach the same brightness,
1R need more current, well for 2R display, each R just need half current. This just like one man and a team to take a burden, A man just can undertake,
but two more easily. and our modules case is PVC, which is more durable and have a stronger ability in bask, anti-ultraviolet and Difficult to deformation
than Plastic ones.

3. Cabinets. they are used in galvanized steel, anti-salt, anticorrosive and waterproof.

4. Screen. use state-of-the-art LED drive IC-MBI5026, brightness can up to 8000cd/m2, live color video and vivid image with 256 grey level.
for outdoor led displays, all of them are IP 65 and designed to withstand harsh environmental conditions, such as sun glare, heat, cold, and humidity.
you can see more details in the quotation.

5. Packing: anti-shaking wooden case, which is lighter than normal wooden case but more protective to the goods.




Advertising Led Screen Parameters

Item
Technical parameter





Panel
Dimension
(W)200mm*150mm(H)
Pixel pitch
1.25mm
Pixel configuration
1R1G1B
LED specification
SMD1010
Pixel resolution
(W)160*120(H)
Average power
25W
Panel weigth
0.35







Cabinet
Dimension
400*300*85mm
Quantity of panel
4PCS
Working temperature
-20--+60
Best viewing distance
1-30M
Best viewing angle
170/120
Panel power supply
5V60A
Screen power supply
220VAC/50Hz+_10%
Max power
1250W/sqm
Average power
500W/sqm






Technical parameter
Driving device
2053Constant current drive
Drive type
1/20S
Refresh frequency
2880HZ/S
Display color
4096*4096*4096
Brightness
400-800mcd/sqm
Life span
100000Hours
Communication distance
<100M

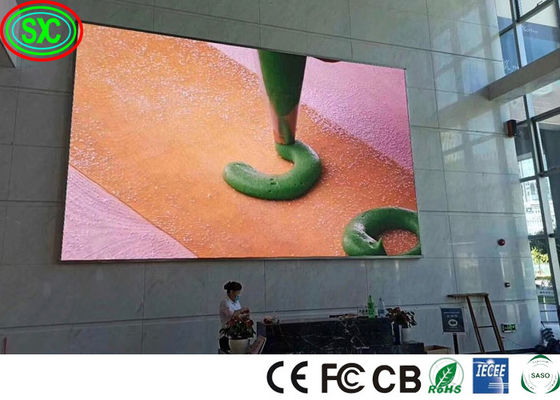

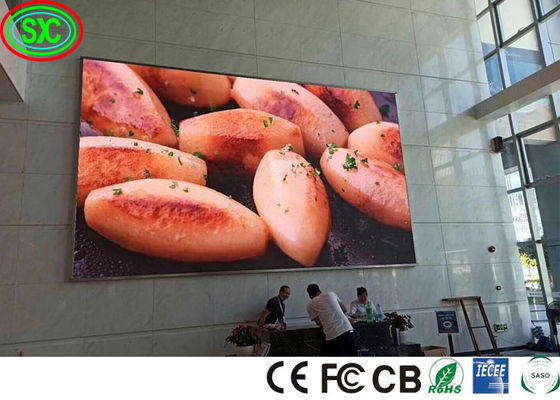

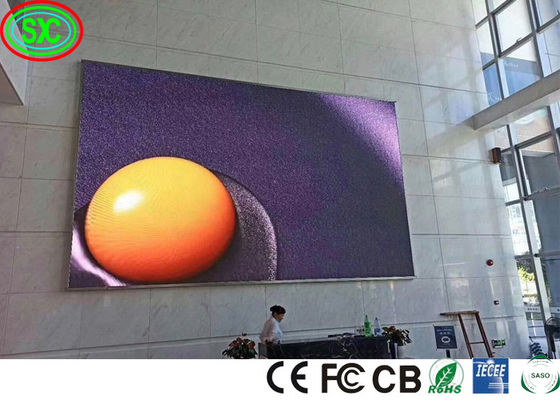

Advertising Led Screens use
High definition advetising led SMD P1.25 P1.5625 P1.667 P1.875 full color indoor LED Display 0


Advertising Led Screen Packing
High definition advetising led SMD P1.25 P1.5625 P1.667 P1.875 full color indoor LED Display 1



Our service and warranty

1.We guarantee all our screens, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty , we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution
to solve the problem.
5.We also could solve problems for you until it recovers well by remote control.





FAQ



Q1. How could I buy the products I need if there is no price in the website?

You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.


Q2. How long could I get reply of my inquiry?

You will get a reply within 24 hours.



Q3. What kind of warranty do you offer?

 all product here we offer 3 year at least warranty.



Q4. How is the after sales service?

We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.



Q5. What kind of payment methods do you have As a manufacturer?

We take T/T  and Cash as payment terms


Q6. How long will it take to deliver goods?

We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get your payment.



Q7. What kind of packaging you offer?
During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
