High Definition P3.91 Led Full Color Display 500 X500mm Die Casting Aluminum Cabinet

High Definition P3.91 Led Full Color Display 500 X500mm Die Casting Aluminum Cabinet



The die casting aluminum cabinet is good for rental usage, less weight, easy to be assemble and dismantal. with flight case package ,you can move it easily.And it can be hanged easily.



We have 12-year design experience of offering solution, installation, and after-sales service, etc. According to different environment conditions, too cold temperature till -25℃ or too hot temperature till +55℃, we carefully choose different suitable materials and make the best offer for every customer. It differs in cables, LED lamps, plastic masks, waterproof materials, IC, etc. Faced with a variery of requirements, we offer flexible diverse solutions. We offer 24-hour all- direction online service.















HD outdoor full color P3.91 Led display specification
LED Lamps	Type			SMD2121(High Brightness LEDs)
	LED Standard			Real Pixel(1R1G1B)
	Red Wavelength			625-630nm
	Green Wavelength			515-530nm
	Blue Wavelength			465-475nm
LED Module	Pixel Pitch			3.91mm
	Module Size			250mmx250mm
	Module Resolution			64*64dots
LED Cabinet	Cabinet Size			500mmX500mm
	Cabinet Resolution			128pixels *128pixels
	Cabinets Material			die casting aluminum
LED Display	Pixel Density			65410pixels/sq.m
	Drive IC			MBI5124
	Power Supply			Series connection
	Brightness			>2500cd/sqm
	Display Color			16.7million
	Viewing Angle			110°(Horizontal),50°(Vertical)
	Best Viewing Distance			1m~200m
	Max Power Consumption			600 w/sq.m
	Average Consumption			300 w/sq.m
	Weight			22Kgs/sq.m
	Refresh Rate			3000hz
	Input Voltage			AC220V/50H or AC110V/60H
	Output Voltage			DC5V,40A
	Grey Scale Levels			16bit
	Display Colors			R(1024) x G(1024) x B(1024)
	MTBF			10,000 hours
	Life-span			100,000 hours
	Protection Level			IP43
	Failure leds			less than 0.0003
	Working Temperature			-5℃~65℃
	Drive Mode			1/16 scaning
	Working Humidity			5%~99%
Control System	Control method			Synchronization & Asynchronization
	Control System			LINSN Control System (sender,receiver,HUB with 75 interface,software) ( within xinxun Asynchronization)
	Software			LED Studio (LINSN)
	Input Signal			MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT.etc
	PC Operating system			Microsoft Windows 7, 98, 2000, XP and Vista



The epistar Led chip. with SMD and DIP Technology .



we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available









The wire or wireless controll system are available .( 3g and wifi controll will be welcome)



 ♦ Our advantages

Professional Manufacturer of led display



1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.



♦ Production process:



1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



♦ Packaging and shipping





we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.

we can choose the best shippment which is convenient to you!

SCXK group can give you the short delivery time and With the large production ability ,

you can feel free about this . By air ,by train, by sea?







♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.



♦ Applications

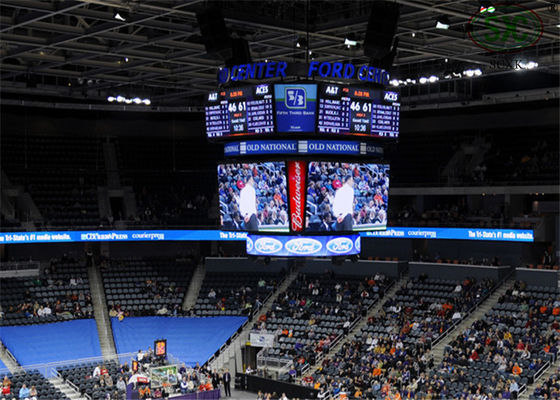

--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.



♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.





♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
