Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE,ROHS,FCC,SASO,BIS,ISO-9001,CB,IECEE |
| Model Number: | P4 |
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | Flight Case , 700*700*380mm |
| Delivery Time: | 3-5 Working Days |
| Payment Terms: | Western Union,, T/T |
| Supply Ability: | 3,000 sqm per Month |
| Module Size: | 320x160mm | Pixel Pitch: | 4mm |
|---|---|---|---|
| Module Resolution: | 64x32 | Driving Mode: | 1/16 |
| Contrast Ratio: | ≥3000:1 | Single-point Brightness Correction: | Available |
| Single-point Color Correction: | Available | Surface Evenness: | GAP< 1mm |
| Color Temperature Condition: | 3500K～9500K,(can Be Adjustable) | ||
| High Light: | led full color screen,indoor led display screen |
||

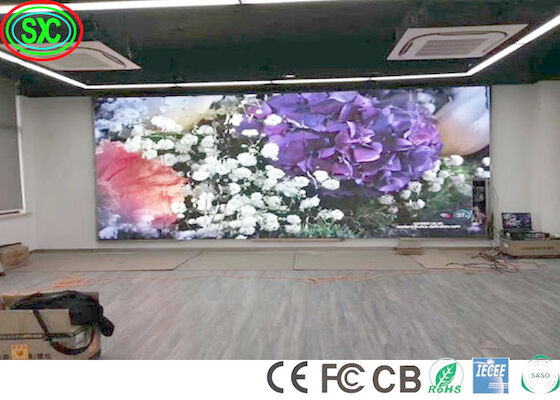

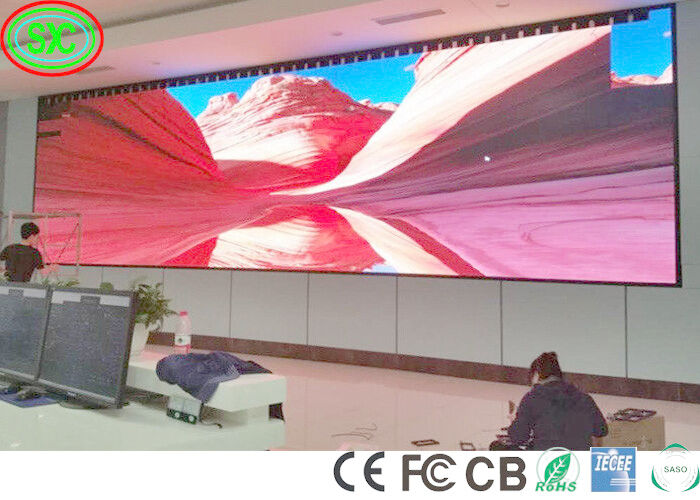

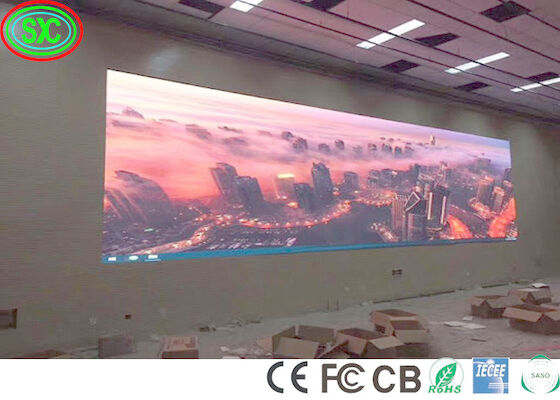

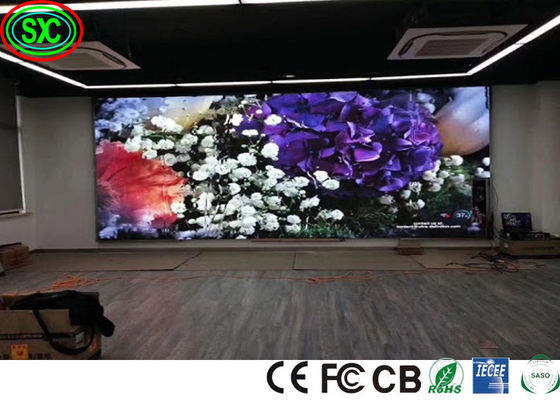

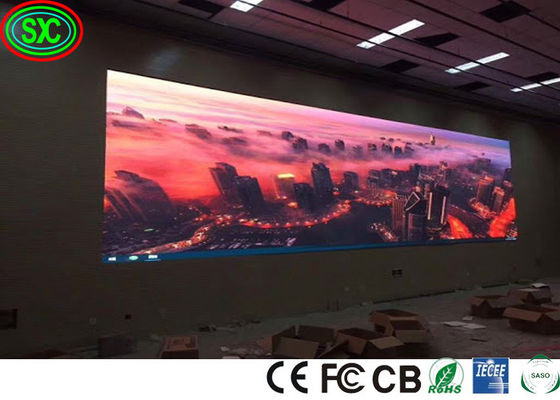

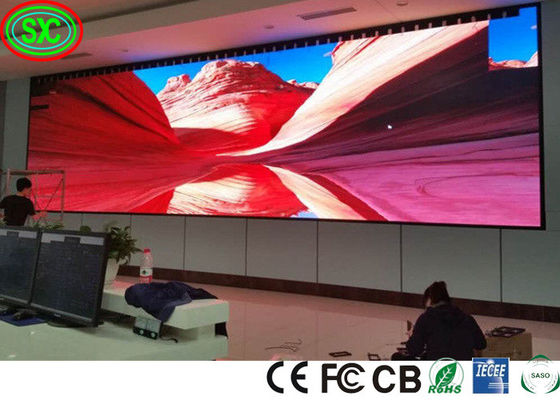

Indoor Full Color High Refresh Rate over 3840hz SMD P2 P3 P4 P5 Led Display Wall LED Screen Panels
Indoor Full Color Led Display Features
1.Classical design and natural technic,reliable quality and great performance.
2.Seamless connecting tech.,screen flatness error <0.1mm.
3.Patented mask,eliminating the dark spots,improving consistency and viewing angle.
4.High contrast,ideal gray scale,presenting the most real pictures.
5.Supporting brightness and color correcting of the whole screen.
6.Ideal load of power and parameter setting,make screen under the best working condition,moreover,furthest slow down brightness
and color reduction.
Indoor Full Color Led Display Specifications
| Item | Specification | ||||||||
| LED Parameters |
Luminous Intensity | R:620-630, G:520-535, B:465-475 | |||||||
| Wavelength | R:400-500mcd, G:1800-2200mcd, B:350-450mcd | ||||||||
| Test Condition | R:25℃,20mA, G:25℃,20mA, B:25℃,20mA | ||||||||
| LED Module | Led Type | SMD 3 IN 1 | |||||||
| Pixel Pitch | 5mm | ||||||||
| LED Shape & Size | 3mm SMD3528 | ||||||||
| Encapsulation Type | 1R1G1B | ||||||||
| Module Dimension | 320mmx160mm | ||||||||
| Module Resolution | 64×32 | ||||||||
| Module Weight | 0.20 KG | ||||||||
| Pixel Density | 40000 | ||||||||
| Driving Mode | 1/16 | ||||||||
| Module Power Consumption | 20 W | ||||||||
| LED Cabinet | Cabinet Size | 640mm(W)x 640mm(H) | |||||||
| Cabinet Thickness | 7mm | ||||||||
| Cabinet Resolution | 128x128 | ||||||||
| Module Numbers per Cabinet | 2pcsx4pcs=8 pcs | ||||||||
| Cabinet Material | Die Casting Aluminum | ||||||||
| Screen | Use | Rental | |||||||
| Cabinet Weight | 11.5 KG | ||||||||
| Optical parameters | Brightness | ≥1800 cd | |||||||
| Contrast Ratio | ≥3000:1 | ||||||||
| Single-point Brightness Correction | Available | ||||||||
| Single-point Color Correction | Available | ||||||||
| Surface Evenness | GAP< 1mm | ||||||||
| Color Temperature Condition | 3500K～9500K,(can be adjustable) | ||||||||
| Viewing angle | 120°(Horizontal),60°(Vertical) | ||||||||
| Gray Scale | 16 bit | ||||||||
| Best View Distance | 5m~200m | ||||||||
| Brightness Adjustment | 0-100% 8 levels | ||||||||
| Power Supply |
Operation Power | AC90-260V 50-60HZ | |||||||
| Max Power Consumption | 700 W /m² | ||||||||
| Average Power Consumption | 350 W /m² | ||||||||
| Control System |
Control Mode | Synchronous Control by Linsn system | |||||||
| Frame Update Frequency | ≥120Hz | ||||||||
| Screen Refresh Frequency | ≥400Hz | ||||||||
| Gamma Correction | (-0.5—5.0) | ||||||||
| Input Signal Support | Composite,S-Video,Component, VGA,DVI,HDMI,SDI,HD_SDI |
||||||||
| Control Distance | UTP CAT5E:100m;Multi-mode Fiber:500m; Single-mode Fiber:10km |
||||||||
| Video Signal | MPG ／MPEG／MPV／MPA／ AVI／SWF／RM／RA／RMJ／ASF |
||||||||
| Support VGA Mode | 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, |
||||||||
| Brightness Correction | Dot by Dot,module by module, cabinet by cabinet |
||||||||
| Operating Temp. | - 10° —+55° Celcius degree | ||||||||
| Operating Humidity | 10 - 90 % RH | ||||||||
| Operating Life | 100,000 Hours | ||||||||
| Protection Level | IP34 | ||||||||
| MTBF | 5000 Hours | ||||||||
| Out of Control Pixel Rate | 0.01% | ||||||||
Indoor Full Color Led Display Cabinet and Video Processor
Our Service
1)Your inquiry related to our products or price will be replied in 24hrs
2)OEM&ODM,any your customized lightings we can help you to design and put into product
3)Distributoership are offered for your unique design and some our current models
4)Protection of your sales area,ideas of design and all your private information
5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win
Trade Terms
1.Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying
2.Shipping freight are quoted under your requests
3.Shipping port:ShenZhen,Mainland China
4.MOQ:1sqm
FAQ
1.Q:Are you a factory or trading company?
A:We are factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in one case packaging
4.Customized packaging
4.Q:Do you have CE/ROHS/FCC certificates?
A:Yes, we offer the CE & ROHS/FCC certificates ,If you need any other certificate like SASO,BIS, SAA etc, we also could provide ,usually need charge part of cost .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:15-30 days; by air:3-5 days ;by express:3-5 days
