Curve Stage Outdoor Indoor Rental P4.81 P3.91 P5.95 LED Die Casting Aluminum Cabinet LED Video Wall

Curve Stage Outdoor Indoor Rental P4.81 P3.91 P5.95 LED Die Casting Aluminum Cabinet LED Video Wall

  • Curve Stage Outdoor Indoor Rental P4.81 P3.91 P5.95 LED Die Casting Aluminum Cabinet LED Video Wall
  • Curve Stage Outdoor Indoor Rental P4.81 P3.91 P5.95 LED Die Casting Aluminum Cabinet LED Video Wall
  • Curve Stage Outdoor Indoor Rental P4.81 P3.91 P5.95 LED Die Casting Aluminum Cabinet LED Video Wall
Curve Stage Outdoor Indoor Rental P4.81 P3.91 P5.95 LED Die Casting Aluminum Cabinet LED Video Wall
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE,ROHS,FCC,SASO,BIS,ISO-9001,CB, IECEE
Model Number: P3.91
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: negotiation
Packaging Details: Wooden Case , 1000*1000*600mm
Delivery Time: 3-5 Working Days
Payment Terms: Western Union,, T/T
Supply Ability: 3,000 sqm per Month
Contact Now
Detailed Product Description
Module Size: 250x 250mm Pixel Pitch: 3.91mm
Module Resolution: 64x64 Driving Mode: 1/16
IC: MBI 5124 Refresh Rate: ≥1920
Brightness: ≥1300cd/㎡ Number Of Colors: 16.7 Trillion
Brightness Adjustment: 0-100% 8 Levels Temperature-operating: ﹣30℃~60℃
High Light:

full color led signs outdoor

,

outdoor full color led screen

Curve Stage Outdoor Indoor Rental P4.81 P3.91 P5.95 LED Die Casting Aluminum Cabinet LED Video Wall



Stage Led Screens Features



1. 4:3 golden ratio 400x300 Die-casting Aluminum LED Panels, 80mm thickness, 6.6kg/pcs panel.

2. high gray scale, 5000:1 contrast ratio,16 bit gray level, 3840Hz refresh rate
3. seamless tiled display, <0.01mm.
4. wide color gamut, good color uniformity, less glare and less shadow
5. Natural heat dissipation, ultra silence
6. die-casting aluminum, CNC fine finishing,good flatness
7. with anti-slip handles, and high quality fast locks
8. wireless connection,double backup design, with double control cards.
9. support both rear and front service




Stage Led Screens Description

Item Specification
LED
Parameters
Luminous Intensity R:620-630, G:520-535, B:465-475
Wavelength R:400-500mcd, G:1800-2200mcd, B:350-450mcd
Test Condition R:25℃,20mA, G:25℃,20mA, B:25℃,20mA
LED Module Led Type SMD 3 IN 1
Pixel Pitch 3.91 mm
Encapsulation Type 1R1G1B
Module Dimension  250mmx 250mm
Module Resolution  64 ×64
Module Weight 0.20 KG
Pixel Density  65410 pixels/ dots
Driving Mode 1/16
Module Power Consumption 20 W
LED Cabinet Cabinet Size  500mm(W)x 500mm(H)
Cabinet Thickness 70 mm
Cabinet Resolution  128 x 128
Cabinet Material  Die Casting Aluminum Cabinet
Screen Use  Rent
Cabinet Weight  6.5 KG
Optical parameters Brightness ≥1200 cd
Contrast Ratio ≥3000:1
Single-point Brightness Correction Available
Single-point Color Correction Available
Surface Evenness GAP< 1mm
Color Temperature Condition 3500K~9500K,(can be adjustable)
Viewing angle 120°(Horizontal),60°(Vertical)
Gray Scale 16 bit
Best View Distance 5m~200m
Brightness Adjustment 0-100% 8 levels
Power
Supply
Operation Power AC90-260V 50-60HZ
Max Power Consumption 700 W /m²
Average Power Consumption 350 W /m²
Control
System
Control Mode Synchronous Control by Linsn system
Frame Update Frequency ≥600Hz
Screen Refresh Frequency ≥900Hz
Gamma Correction (-0.5—5.0)
Input Signal Support Composite,S-Video,Component,
VGA,DVI,HDMI,SDI,HD_SDI
Control Distance UTP CAT5E:100m;Multi-mode Fiber:500m;
Single-mode Fiber:10km
Video Signal MPG /MPEG/MPV/MPA/
AVI/SWF/RM/RA/RMJ/ASF
Support VGA Mode 800 x 600, 1024 x 768,
1280 x 1024, 1600 x 1200,
Brightness Correction Dot by Dot,module by module,
cabinet by cabinet
Operating Temp. - 10° —+55° Celcius degree
Operating Humidity 10 - 90 % RH
Operating Life 100,000 Hours
Protection Level IP 34
MTBF 5000 Hours
Out of Control Pixel Rate 0.01%

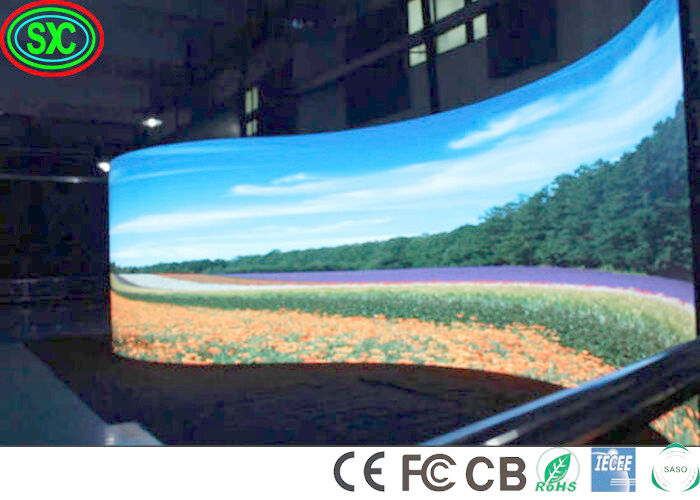

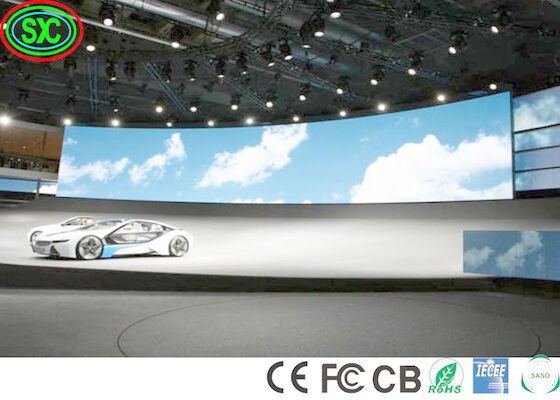

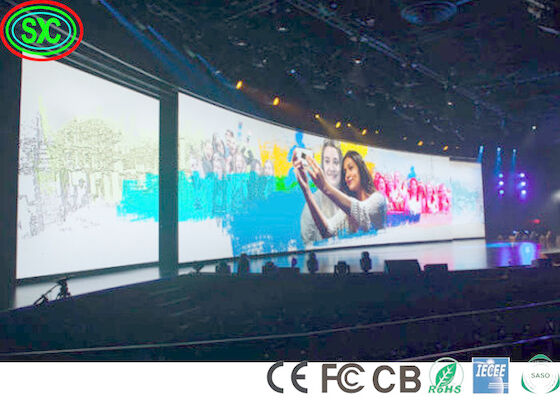

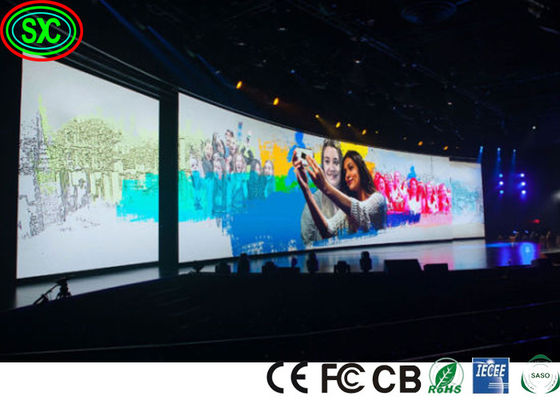

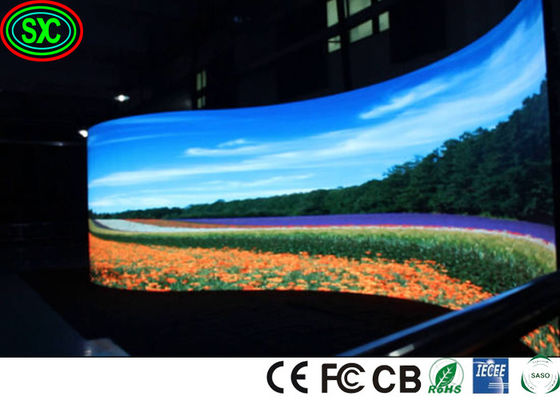

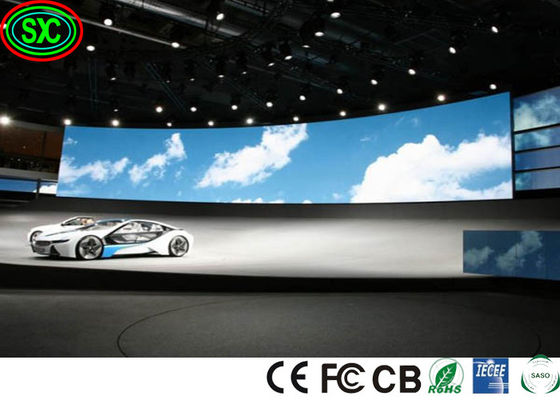

Stage Led Screen Pictures

Curve Stage Outdoor Indoor Rental P4.81 P3.91 P5.95 LED Die Casting Aluminum Cabinet LED Video Wall 0

Curve Stage Outdoor Indoor Rental P4.81 P3.91 P5.95 LED Die Casting Aluminum Cabinet LED Video Wall 1

Curve Stage Outdoor Indoor Rental P4.81 P3.91 P5.95 LED Die Casting Aluminum Cabinet LED Video Wall 2





Package And Shipping



Packaging:

1:Flight Case(6 or 8 cabinets in one case)
Gross Weight:100KG
Size:768mm*560mm*768mm



2:Wooden case(6 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm





Company Information

Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.





FAQ



1.Q:Are you a factory or trading company?

A:We are factory,located in Dalang,Longhua District .



2.Q:What kind of payment terms you accept?

A:We accept T/T,Western Union,MoneyGram etc.



3.Q:What's packaging?

A:1.Flight case packaging

2.Wooden case packaging

3. 36pcs in one case packaging

4.Customized packaging



4.Q:Do you have CE/ROHS/FCC certificates?

A:Yes, we offer the CE & ROHS/FCC certificates ,If you need any other certificate like SASO,BIS, SAA etc, we also could provide ,usually need charge part of cost .



5.Q:What's the shipping method,shipping time?

A:Our products could be shipped by Sea, by Air, and by Express.

by sea:15-30 days; by air:3-5 days ;by express:3-5 days
