P4 Soft Hd Flexible Full Color Led Module Rental Pixel Density 62500 Dots / Sqm

P4 Soft Hd Flexible Full Color Led Module Rental Pixel Density 62500 Dots / Sqm

  • P4 Soft Hd Flexible Full Color Led Module Rental Pixel Density 62500 Dots / Sqm
  • P4 Soft Hd Flexible Full Color Led Module Rental Pixel Density 62500 Dots / Sqm
  • P4 Soft Hd Flexible Full Color Led Module Rental Pixel Density 62500 Dots / Sqm
  • P4 Soft Hd Flexible Full Color Led Module Rental Pixel Density 62500 Dots / Sqm
P4 Soft Hd Flexible Full Color Led Module Rental Pixel Density 62500 Dots / Sqm
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P4
Payment & Shipping Terms:
Minimum Order Quantity: 1-1000sqm
Price: negotiation
Packaging Details: flight case, wooden case
Delivery Time: 7-15
Payment Terms: T/T
Contact Now
Detailed Product Description
LED Color: RGB Scan Mode: 1/16
Cabinet Size: Costumized Brightness:: 1,500cd/sqm
Pixel Density:: 62,500dots/sqm Lamp Type:: SMD2121
Module Size: 256x128mm
High Light:

led screen module

,

led sign module

P4 Soft Hd Flexible Full Color Led Module Rental Pixel Density 62500 Dots / Sqm

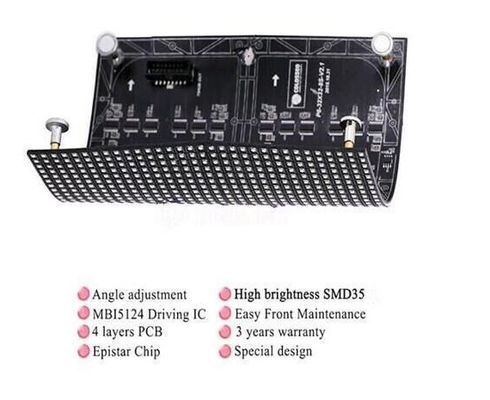

P4 Soft Flexible Module Full Color LED Display Module :
1) excellent quality,original epistar chip,MBI driving IC from taiwan
2)competitive price,best after-sales service
3) 5 years warranty,life span 10 years.
P4 Soft Hd Flexible Full Color Led Module Rental Pixel Density 62500 Dots / Sqm 0

P4 Soft Hd Flexible Full Color Led Module Rental Pixel Density 62500 Dots / Sqm 1



Module: P4 Full Color LED Module Pixel type Real pixel
Pixel pitch 4 mm refresh frequency >=3840HZ
Module Size 256*128mm Horizontal View Angel > 110 degree
Model Pixel 64X32 Pixels Working Environment

Temp:-20Celsius degree-+60Celsius degree
Humidity : 10%-90%

lattice density 62500 dots/square meter Working voltage

AC100-120V
AC 220-240V

Pixel form 1R1PG1GB SMD2121 black lamp Lifetime >=100000 hours
Best viewing distance 3m~30 m Gray scale 14 bit/ 1 color
Max power consumption 900W/square meter Color display manual adjust
Ave power consumption 300W/square meter Brightness 2000 cd/square meter
warranty 5 year Blind spot rate <0.00001
Drive mode( Optional) Constant current 1/16 scan Waterproof Class IP43
Control system DVI card+Full color control card Software Support window series system




Specification
Model
P2
P2.5
P4
LED package
SMD1515
SMD2121
SMD2121
Pixel configuration
1R1G1B
1R1G1B
1R1G1B
Pixel density
25000dots/sqm
160000dots/sqm
62500dots/sqm
Module size
256*128mm
240*120mm
256*128mm
Led panel size
customize
customize
customize
Cabinet material
iron frame
iron frame
iron frame
Flatness
≤0.01mm
≤0.01mm
≤0.01mm
Grey scale
16bit
16bit
16bit
waterproof grade
IP43
IP43
IP43
Maintain style

Front
Front
Brightness
700-900 nits/M2
1000-1200nits/M2
1000-1200nits/M2
Refresh rate
3840hz
3840hz
3840hz
Working power voltage
110-220V
110-220V
110-220V
