Full Color Outdoor Mobile Truck Led Display Advertising High Refresh Rate 3 Years Warranty

Full Color Outdoor Mobile Truck Led Display Advertising High Refresh Rate 3 Years Warranty

  • Full Color Outdoor Mobile Truck Led Display Advertising High Refresh Rate 3 Years Warranty
  • Full Color Outdoor Mobile Truck Led Display Advertising High Refresh Rate 3 Years Warranty
  • Full Color Outdoor Mobile Truck Led Display Advertising High Refresh Rate 3 Years Warranty
  • Full Color Outdoor Mobile Truck Led Display Advertising High Refresh Rate 3 Years Warranty
  • Full Color Outdoor Mobile Truck Led Display Advertising High Refresh Rate 3 Years Warranty
Full Color Outdoor Mobile Truck Led Display Advertising High Refresh Rate 3 Years Warranty
Product Details:
Place of Origin: ShenZhen in China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 2 sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixels: 10mm Led Type: SMD 3528
Waterproof: Ip65 Cabinet: Steel Or Aluminum For Options
Frame Frequency: >=60HZ Average NO Failure: >=1000hours
Transmiiting Distance: Internet Cable <100m Module: 320*160mm
Cabinet Size: 960*960mm
High Light:

mobile led screen rental

,

digital led sign

Full Color Outdoor Mobile Truck Led Display Advertising High Refresh Rate 3 Years Warranty



Famous Brands Raw Material Selection

1)LED: well-known international brand,with wide viewing angle ,little attenuation ,good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand.The power maximum power resere of 20% the space , the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.


♦ Applications of our products

--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.


Product Description

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable
for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging

technology for nice image.

♦ Technical specification


outdoor SMD p10
Resolution/mm10
Pixel configuration1R1G1B
Pixel density/pixels/m²10000m2
Module resolution32*16
Module size/mm320*160
View distance12-300m
Single point brightness adjustCan be added
Single point color adjustCan be added
White balance brightness>8000cd/㎡
Color temperature6500K-9500K
Horizontal view angle120(degrees)
Vertical view angle60(degrees)
Signal Process bit10 or 16bit
Driving modeConstant driving current
Scanning modestatic dring
Frame rate60Hz
Refresh frequency3000Hz
Control modeComputer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss

Out of control point<1/10000
Working hours >72hours
Mean time  Between Failure>500hours
life time>100000hours
Envirornment temperature rangeoperating temperature range  -200c-500c
Maximun power :/m2-<800w
Average power:/m2<300w
Self-check technologLEDspot self-check,communication check,power check,temperature monitor(need customization)
Remote monitoringRemote supervision and control,record potential fault send out warning signs to the operators(need customization)
Software environmentwindows NT,Windows 1999,Windows XP
Input power cableAC110v to220v
Signal inputDVI
Warranty2years quality warranty ,10 years spare parts support

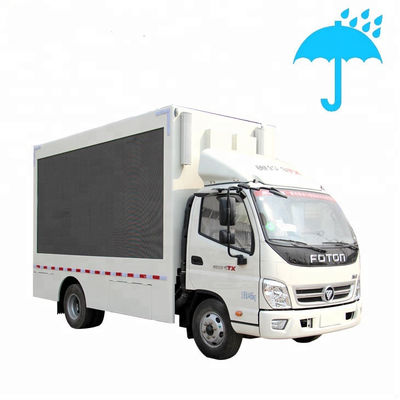

Full Color Outdoor Mobile Truck Led Display Advertising High Refresh Rate 3 Years Warranty 0

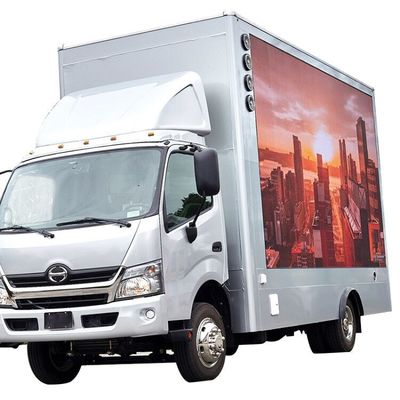

Full Color Outdoor Mobile Truck Led Display Advertising High Refresh Rate 3 Years Warranty 1

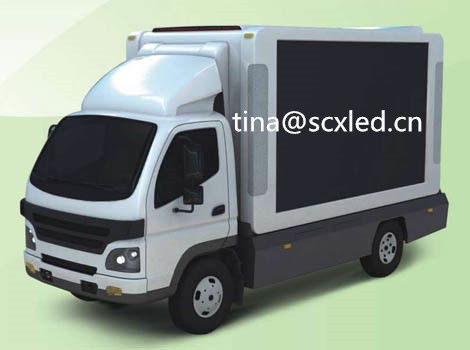

Full Color Outdoor Mobile Truck Led Display Advertising High Refresh Rate 3 Years Warranty 2
Packaging & Shipping

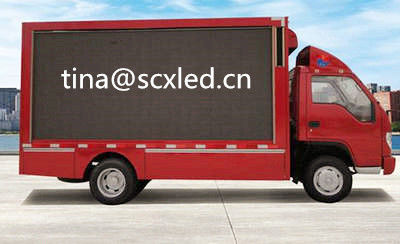

Full Color Outdoor Mobile Truck Led Display Advertising High Refresh Rate 3 Years Warranty 3
