Place of Origin: | ShenZhen in China |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P4 |
Minimum Order Quantity: | 2sqm |
---|---|
Price: | negotiation |
Packaging Details: | flight case, wooden case, carton, it is up to you. |
Delivery Time: | 7-10 working days after receive your payment |
Payment Terms: | Western Union, MoneyGram, D/P, T/T, L/C |
Supply Ability: | 5000sqm per month |
Pixels: | 4mm | Tube Chip Color: | Full Color |
---|---|---|---|
Led Type: | SMD2121 | Display Function: | Video |
Cabinet: | Die-casting Aluminum Iron ,it Is Up You | Cabinet Size: | 256mm*128mm |
Working Voltage: | DC5V | Warranty Time: | 3 Years |
Dot Density: | 62500 | Driving Mode: | 1/16scaning |
Certificates: | CE,RoHs,FCC,ISO | Piexl Dots: | 64*32 |
High Light: | led display smd,outdoor smd led display |

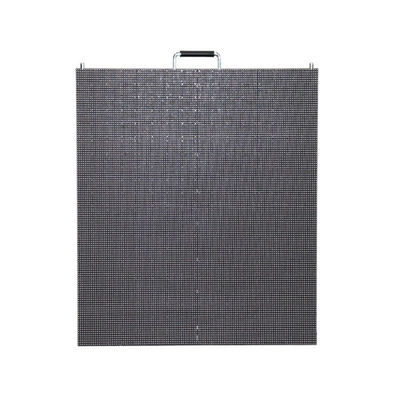

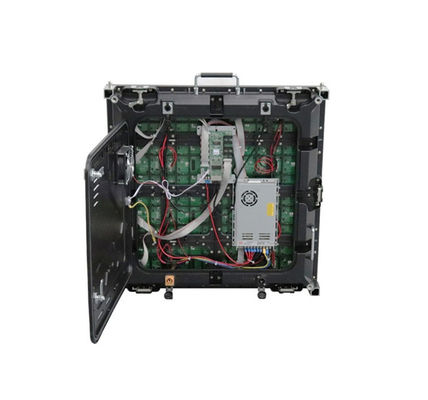

HD P4 Waterproof Outdoor Stage Led Video Wall Rental Screen for Events Concert Hire
P4 Rental LED Display
P4 Indoor Full Color LED Display
|
|||
Item
|
Techinical Specifications
|
||
Pixel Pitch
|
4mm
|
||
LED Configuration
|
SMD 3 in 1
|
||
Pixel Density
|
10000 pixels/sq.m
|
||
Module Size
|
160mm x 160mm
|
||
Module Resilution
|
16pixel x 16pixel
|
||
Cabinet Size
|
960mm x 960mm
|
||
Cabinet Resolution
|
96pixels x 96pixels
|
||
Cabinet Material
|
Steel/Aluminum
|
||
Cabinet Weight
|
48kg/m2 or 40kg/m2
|
||
Brightness
|
7500cd/m2
|
||
Colour temperature
|
3500K-9500K(adjustable)
|
||
Viewing Angle
|
H:110°/V:55°
|
||
Brightness Uniformity
|
≥97%
|
||
Brightness Adjustment
|
Manual/Auto/Programmable
|
||
Ave. Power consumption
|
200 W/m2
|
||
Max. Power consumption
|
600 W/m2
|
||
Input Voltage
|
AC220V/50HZ or AC110V/60HZ (±10%)
|
||
Output Voltage
|
5V,40A
|
||
Best Viewing Distance
|
10m~200m
|
||
Contrast ratio
|
5000:1
|
||
Frame rate
|
50/60 Hz/sec
|
||
Refresh rate
|
≥1200Hz
|
||
Grey scale levels
|
R(256bit) x G(256bit) x B(256bit)
|
||
Display Colors
|
R(1024) x G(1024) x B(1024)
|
||
Protection Level
|
IP65
|
||
Life-span
|
100,000 hours
|
||
MTBF
|
10,000 hours
|
||
Malfunction dot rate
|
< 0.0001
|
||
Storage Temp/Humidity
|
-30~+60℃/10~90%RH
|
||
Operating Temp/Humidity
|
-20~+50℃/10~90%RH
|
||
Drive Mode
|
1/4 scan
|
||
Control System
|
Synchronous/Asynchronous/Wifi/3G Wireless for choosing
|
||
Input Signal
|
RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc
|
||
PC Operating System
|
Microsoft Windows 7, 8, 98, 2000, XP and Vista
|
Packing& Shipping
Contact
Contact Person: Susan_zhang
Tel: +8618344159301
