P10 Stadium Led Display LED Video Screens For Basketball / Football Game Show

P10 Stadium Led Display LED Video Screens For Basketball / Football Game Show

    • P10 Stadium Led Display LED Video Screens For Basketball / Football Game Show
    • P10 Stadium Led Display LED Video Screens For Basketball / Football Game Show
  • P10 Stadium Led Display LED Video Screens For Basketball / Football Game Show

    Product Details:

    Place of Origin: ShenZhen in China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: P10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1sqm
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Pixels: 10mm Tube Chip Color: Full Color
    Led Type: DIP Display Function: Video
    Waterproof: Ip65 Cabinet: Steel Or Aluminum For Options
    Frame Frequency: >=60HZ Average NO Failure: >=1000hours
    Certificates: CE,RoHs Dot Density: 10000
    Viewing Angle: 120/120 Brightness: 5000cd/m2

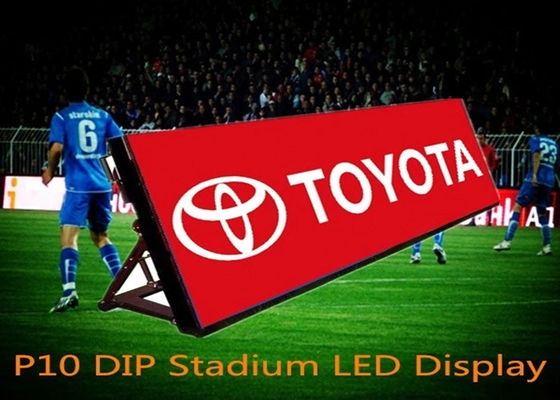

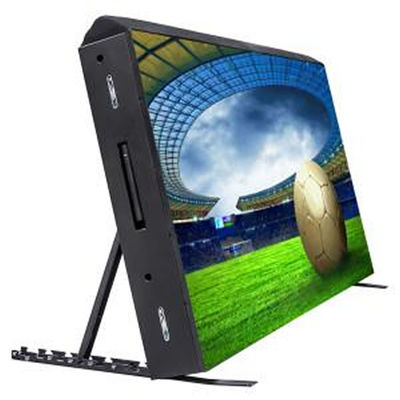

    P10 Soft Mask Football Stadium Perimeter Led Screen Display



    Product Description

    LED parameters

    Item

    Luminous Intensity

    View Angle(H/V)

    Wavelength

    Test Condition

    Red LED

    600-800mcd

    160°/120°

    620-625nm

    25,20mA

    Green LED

    1800-2000mcd

    160°/12

    520-525nm

    25,20mA

    Blue LED

    400-600mcd

    160°/12

    465-470nm

    25,20mA



    Module Parameters

    Item

    Parameter



    Model number

    P10-4S

    Module size

    160x160mm

    Pixel pitch

    10mm

    Pixel density

    10000dots/m2

    Pixel configuration

    1R1G1B

    Package mode

    DIP346

    Pixel resolution

    16dots(W)*16dots(H)

    Max Power

    20W

    Module thickness

    16-18mm

    Weight

    0.45kg

    Drive type

    constant drive

    scan mode

    1/4scan

    Port type

    hub75

    Brightness of white balance

    ≥7500cd/m2

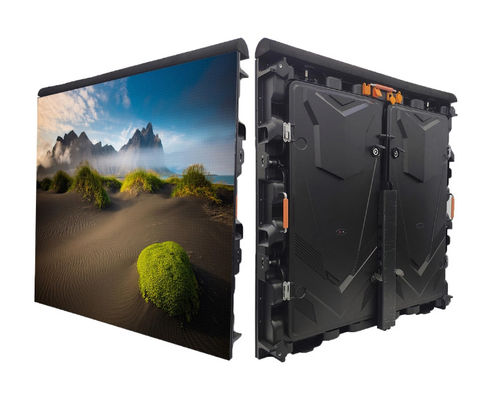

    Cabinet Parameters

    Dimension

    640mm*640mm



    Monomer Module Number

    16

    Power supply

    5V/60A*1pc

    Thermal discharge

    Anto

    Pixel per cabinet

    64*64dots

    Best viewing distance

    6M~40M

    Best viewing angle

    160°(W)120°(H)

    Temperature

    storage:-35°C~+85°C

    working:-20°C~+50°C

    Relative humidity

    10%~95%

    Thickness

    80mm

    QTY/m2

    about 19.5pcs

    Screen Parameters

    Power

    Working voltage

    AC220V±10%

    Average Power consumption

    310W/m2

    Max Power consumption

    780W/m2

    Current

    20mA(single LED)

    Control system

    CPU

    Pentium4 or above P4

    Operation systerm

    WIN98/2000/NT/XP/WIN7

    Control method

    Synchronization

    Main technical parameter

    Driving device

    Constant drive IC

    Refresh frequency

    ≥1200HZ

    Grey scale/colors

    4096 gray level/16.7M colors

    MTBF

    ≥10000hours

    Fire rate

    grade one

    Display Mode

    800*600/1024*768

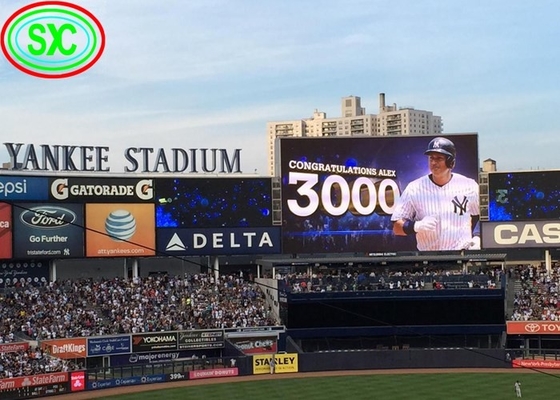

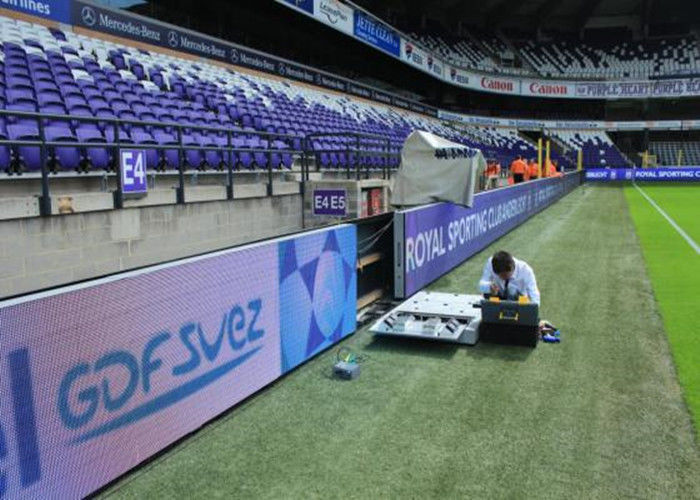

    Applications

    [Low Price] football stadium perimeter led screen display Price

    Outdoor Advertising Led Display Screen[Low Price] football stadium perimeter led screen display Price









    P20 edge protect football stadium perimeter led screen display
