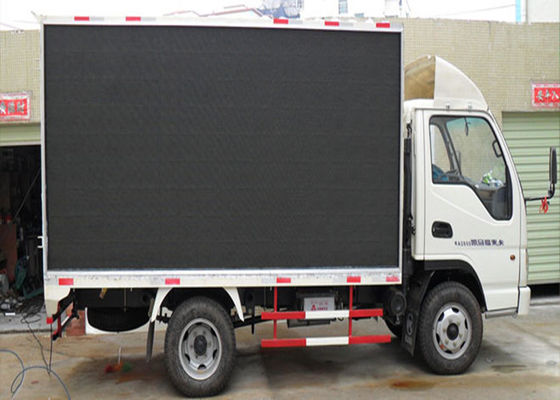

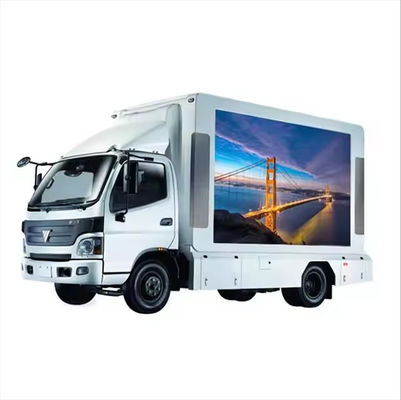

Silent Mobile Truck Led Display Panel , Led Mobile Billboard Great Waterproof

Silent Mobile Truck Led Display Panel , Led Mobile Billboard Great Waterproof

    • Silent Mobile Truck Led Display Panel , Led Mobile Billboard Great Waterproof
    • Silent Mobile Truck Led Display Panel , Led Mobile Billboard Great Waterproof
  • Silent Mobile Truck Led Display Panel , Led Mobile Billboard Great Waterproof

    Product Details:

    Place of Origin: ShenZhen in China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: P10

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 sqm
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Pixels: 10mm Tube Chip Color: Full Color
    Led Type: SMD 3528 Display Function: Video
    Waterproof: Ip65 Cabinet: Steel Or Aluminum For Options
    Frame Frequency: >=60HZ Average NO Failure: >=1000hours
    Transmiiting Distance: Internet Cable <100m Refresh Rate: >=180HZ
    Maximum Power: 600m2 The Optimum: 600w/m2
    Module: 320*160mm Cabinet Size: 960*960mm

    Silent Mobile Truck Led Display Panel , Led Mobile Billboard Great Waterproof



    Quick Details:


    1.High brightness
    2.Endure high temperature and high humidity
    3.Large viewing angle
    4.front side is IP65 and back is IP65

    1. External power for LED screen and rotating bodies.



    2. Vehicle power for hydraulic system Hydraulic Power System Imported independent hydraulic power unit with vehicle power supply or PTO power systems as power source. Hydraulic Support Unit 1. Four hydraulic legs,the ground support vehicle stability. 2. Expand legs, the transverse distance up to 4000mm, vertical distance up to 5000mm, the structure is very stable.

    3. Wind resistance of the design up to 12 Typhoon in theory. Totating Mechanism A totating speed of 0.5r/min

    Silent Mobile Truck Led Display Panel , Led Mobile Billboard Great Waterproof



    Specification



    Pixel Pitch 10 mm
    Resolution 16 × 16
    Pixel Quanity 256
    Dimension 160 mm × 160 mm
    Pixel
    Configuration
    DIP 1R1G1B
    Driving IC JXI5020
    Driving Mode 1/4 Scan
    Application Outdoor
    Weight 0.6Kg



    Dimension 960 mm(W) × 960 mm(H)
    Resolution 96 × 96
    Pixel Quanity 9216
    Module Quanity 6 pcs × 6 pcs
    Power Supply Quanity 3 pcs 5V50A
    Type Fixed installation, iron cabinet
    Weight 58Kg
    Signal Interface DVI
    Source Compatibility YPbPr, PAL/NTSC, S-Video, HDMI, VGA, HD_SDI
    Maintenance type Front and back



    Pixel Density 10000/sqm Input Voltage 220V AV
    Ave.Power
    Consumption
    185W/sqm Working
    Temperature
    -20°C~65°C
    Max.Power
    Consumption
    ≤660W/sqm Working
    Humidity
    10%-90%RH
    Input Power 825W/sqm Optimal Viewing
    Distance
    34M
    Brightness 6500 nits Viewing Angle H: 135°/V: 55°
    Contrast 2000 IP Grade IP45
    Color Depth 8192 Lifespan 100000H
    Refresh Rate ≥400Hz Packing
    Dimension
    -



    al
    View distance 5--80m
    Power consumption 100-1200W/sqm
    Net weight 55kg/square meter
    Operating temperature —25°C~+60°C
    Operating humidity 10%—95%RH
    Life time ≥100,000hours
    Out of control dot ≤3/10,000
    Whole Display Flatness ≤1mm Juncture
    Exchange frame speed >150frames per second
    Refresh frame frequency 600Hz
    Control distance Cat. 5: 120m (without repeater), single mode fiber:20km,multi mode fiber: 500m
    Power 110V/220V 50/60Hz
    Operating system Windows98/Me/2000/Xp
    Drive mode constant current driving, static scan
    Display mode VGA640X480—VGA1600X1024
    Protections for outdoor display IP65 for front, IP64 for rear
    Maintenance way rear access, haging installation
    Accepting signal PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI



    Packaging & Shipping
    Silent Mobile Truck Led Display Panel , Led Mobile Billboard Great Waterproof

    Payment :30% deposit by T/T,before leaving factory should pay the 70% balance by T/T;

    Free training:3 days on-site complete technical training in our Shenzhen
    factory or internet on-line teamviewer via remote control or skype on line
    communication,what's more,we have valuable users' manual to guide for
    debugging and installing successfully.
    Installation service:
    The seller should provide on the spot installation instruction service for the
    buyer, including:
    A, To check whether the bracket and frame are in conformity with the technical
    requirements of the structure scheme the seller provided
    B, To instruct the buyer’s technicians to install the LED module cases and
    connection among those cases
    C, To experiment and adjust the whole panel, examine and repair the
    defective devices, guarantee panel in secure operation.
    D, To train the buyer’s technicians.
    For spot installation and train in foreign country, the service is 100 usd/day,
    and the buyer must pay our technician’s living and traffic fee during the installation
    period.


    Trade terms:
    1. Hardware: LED display and video controlling system
    2. Technical material: English version user manual, installation manual And
    maintenance manual
    3. Service:Provide free technology support by phone and e-mail 7 years
    guarantee
    4. Delivery: Approx 3-12 working days
    5. Packing: Anti-shaking wooden package or Air Flight Case.
    6. Transportation: By sea or air or Express

    Hope we can further together and work together



    Loading port & border:
    Shanghai,Tianjin,Guangzhou,Qingdao,mainly shenzhenErenhot,Horgos or according to your order;

    The whole set or just the screen, choose by yourself!
