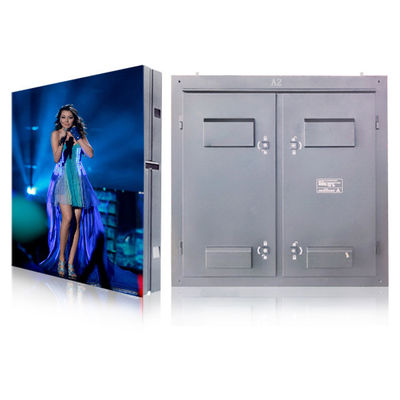

Electronic Digital Advertising LED Screens , outdoor led display panel High brightness

Electronic Digital Advertising LED Screens , outdoor led display panel High brightness

  • Electronic Digital Advertising LED Screens , outdoor led display panel High brightness
  • Electronic Digital Advertising LED Screens , outdoor led display panel High brightness
  • Electronic Digital Advertising LED Screens , outdoor led display panel High brightness
  • Electronic Digital Advertising LED Screens , outdoor led display panel High brightness
Electronic Digital Advertising LED Screens , outdoor led display panel High brightness
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/SGS/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Packed in wooden case and flight case for outer packing
Delivery Time: 10-15 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 5,000/ Sq m per month
Contact Now
Detailed Product Description
Product Name: Outdoor P10 Advertising Screen Module Size: 320mm*160mm
Module Resolution: 32dots*16dots Cabinet Size: 960mm*960mm
Cabinet Resolution: 96*96 Display Color: Full Color
Led Chip: Epistar
High Light:

outdoor advertising led display

,

advertising led billboard


Electronic Digital Advertising LED Screens , outdoor led display panel High brightness

Shenzhen Shichuangxinke Electronic co., LTD. was established in 2005, with modern management mode of the company's main production of indoor and outdoor full color module and the whole screen, indoor and outdoor full-color module and the whole screen, and series of peripheral products LED display sales, visual photoelectric is given priority to with foreign markets, 98% of all goods exported to foreign markets, the registered capital of two million RMB.


Advanced Control Technology



a. Calibration: Pixel-by-pixel brightness and color calibration technique to keep uniform brightness and natural colors of LED display.

b. Monitoring: Proprietary control system can monitor the temperature, brightness, status information of LED display in real time.

c. Remote network control: Controlling and changing all display information, controlling the displays of several cities in one place to change the contents at any time.

d. Adjustable brightness: Adjusting screen brightness automatically according to environmental lighting based on sensitive control system, adjusting it manually or by programmable menu.

e. Large screen control: Controlling super large size display stably without any black screen, frame vibration or reducing.

f. High refresh rate, high gray scale and high contrast ratio: More realistic pictures optimize commercial advertisement value

Electronic Digital Advertising LED Screens , outdoor led display panel High brightness 0



what is difference between SMD and DIP led display?



Surface Mounted Device LED is short for SMD,through the SMT technology encapsulating diode, soldering this lamp on the PCB board surface. Widely used for indoor projects.

Dual in-line Package is short for DIP, after soldering the LED lamp's feet to stable it on the PCB., so it names of DIP LED. Mainly used for outdoor projects.

The comparison of SMD and DIP. SMD with RGB 3 colors in 1 LED cup technology, with better colors uniformity, and wider viewing angle, usually, SMD can be done the small pitch pixels,
so for some high resolution LED screen, SMD is the best choice.

DIP technology with LED foot in PCB board, then the heat dissipation is better than SMD, and higher brightness, even under the sunshine, DIP LED screen can also show the contents well.
That is the reason why people like DIP for outdoor used.

For the energy saving influence, SMD is a new technology, it is high luminous efficiency and good heat dissipation,SMD is 30% energy saving more than DIP.
Previously,SMD is only used for indoor LED screen, but with technological breakthroughs in recent years, SMD brightness has been greatly improved,
waterproof processing also be completely resolved, therefore, SMD is more and more applied to the outdoor LED display in market.

Electronic Digital Advertising LED Screens , outdoor led display panel High brightness 1


Specification
Parameter
Pixel Module size 320mm*160MM
Pixel pitch 10 mm
pixels Density 10000 dots/sqm
Pixel configuration 1R1G1B
Brightness of single LED R: 800mcd, G: 2400mcd, B: 600mcd
Pixel resolution 32*16
Max Power consumption 40 w
Weight 0.89 kg
Working voltage DC5V
Cabinet Dimension 1024*768mm
Power supply 5V/40A
thermal discharge fan
Total Weight 38 kgs
Best viewing distance 8 ~ 50m
Best viewing angle 120°(H) /90°(V)
Ambient Temperature storage: - 30 ~ + 85
working: - 20 ~ + 65
Working humidity 90 ~ 95%
Power Working voltage AC220V / AC110V
Average Power consumption 450 ~ 610 w/sqm
Max. Power consumption ≤ 950 w/sqm
Current ≤20mA(single LED)
Control system CPU Pentium 4 or above
Operating system WIN 98/2000/NT/XP/me
control method Synchronization, asynchronism are available
Main technical parameter Driving device Constant Current Driver IC
Drive type 1/4 scan Driving
Refresh frequency ≥120Hz/s
Grey scale/colors 256 levels of each color(R/G/B)/ 16.7M colors
Brightness of white balance ≥7,000cd/sqm
Brightness adjustment 255 levels of each color(R/G/B) by software
Video Signal PAL/NTSC
Control system DVI graphic card + full color controller card
MTBF ≥10,000 hours
Life span About 100,000 hours
Flatness Tolerance of interpixel≤0.3mm
Tolerance of modules clearance ≤1.5mm
Display Mode 800*600; 1024*768
Communication distance ≥100 meters (UTP-5 CABLE)
Software LED media player




The epistar Led chip. with SMD and DIP Technology .



we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available










The wire or wireless controll system are available .( 3g and wifi controll will be welcome)








Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.





Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online Remote Support

3. Solution and PCB design

4. Free factory training

5. On site installation instruction and regular inspection

6, Small order accepted.





Package

Electronic Digital Advertising LED Screens , outdoor led display panel High brightness 4



Payment and delivery



1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.



♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ Frequently Asked Questions

What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
