Shop Window Transparent LED Screen Digital Signage , TL10.42mm Led Glass Screen

Shop Window Transparent LED Screen Digital Signage , TL10.42mm Led Glass Screen

  • Shop Window Transparent LED Screen Digital Signage , TL10.42mm Led Glass Screen
  • Shop Window Transparent LED Screen Digital Signage , TL10.42mm Led Glass Screen
Shop Window Transparent LED Screen Digital Signage , TL10.42mm Led Glass Screen
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/SGS
Model Number: TL10.42
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Packed in wooden case and flight case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000/ Sq m per month
Contact Now
Detailed Product Description
Product Name: TL10.42 Transparent Led Screen CABINET Size(W * H): 1000*1000*80MM
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: FULL COLOR
Pixel Pitch: 10.42 Mm Module Qty: 1pcs
Pixel Density: 9216 Dots/sqm
High Light:

transparent led panel

,

transparent led display

Shop Window Transparent LED Screen Digital Signage , TL10.42mm Led Glass Screen

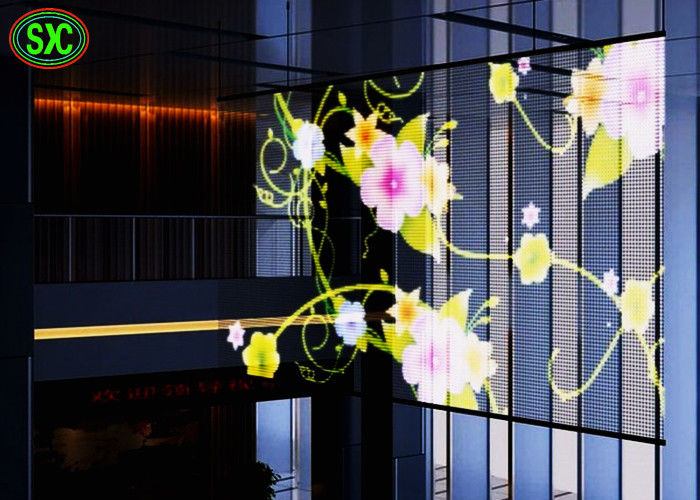

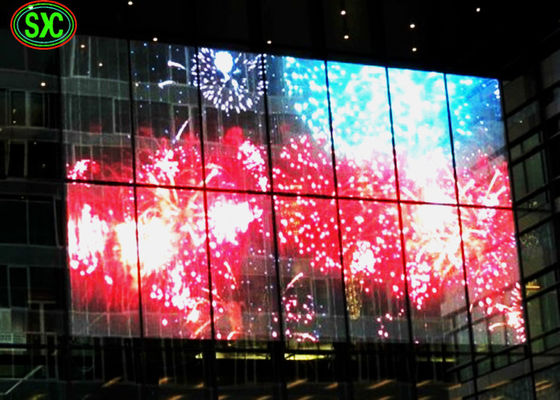

Featured with high transparency, Transparent LED Screen can be used at any place that has glass walls. Highly usable at places like bank, shopping mall, theater, commercial stage, chain store, hotel, public building and landmark building etc.



The Transparent LED Screen for Shopping Mall is only 75mm thick which makes it ultra-lightweight and space saving. Can be installed at any area without requiring much space. The light weight of 5kg/panel LED screen is easy to carry, transport and install - saving good amount of money on your labor costs.



The Transparent LED Screen for Shopping Mall is known for its silence operation and low power consumption. It is also known for fast heat dissipation which will save more energy. Cut on the electricity expenses and help environment with this highly advanced advertising display.



It features transparent effect up to 80% keeping the perspective function of glass. The higher transparency effect allows you to see LED light on the glass without any effect to surround of glass wall.



The thin size and ultra-lightweight modules makes it easy to carry, transport and install. You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.



Shop Window Transparent LED Screen Digital Signage , TL10.42mm Led Glass Screen 0



LED Module Pixel Pitch 10.42mm
LED Cabinet Cabinet Size 1000mmX1000mm*80mm
Cabinet Resolution 96pixels *96pixels
Cabinets Material Die casting Aluminum Cabinet
LED Display Pixel Density 9216pixels/sq.m
Drive IC MBI5024
Power Supply Series connection
Brightness >4200cd/sqm
Display Color 16.7million
Viewing Angle 110°(Horizontal),50°(Vertical)
Best Viewing Distance 2.5m~100m
Max Power Consumption 800w/sqm
Average Power Consumption 320 w/sq.m
Refresh Rate 16bit ≥2880; 14bit ≥4800; 10bit ≥9600
Input Voltage AC220V/50H or AC110V/60H
Output Voltage DC5V 60A/80A
Grey Scale Levels 16bit
Installation Way Hanging / Stacking / Permanent Installation
Drive IC Taiwan MBI/Domestic High refresh rate IC(Optional)
Life-span 100,000 hours
Protection Level IP30
Failure percentage of leds less than 0.0003
Working Temperature -10~40°C
Drive Mode 1/6 scan constant current
Working Humidity 10%~90%
LED Encapsulation Self-development Side view LED lamp
Eliminate Ghost Line Yes
Working Voltage DC5V
weight <6.2kg
Control method Synchronization & Asynchronization
Control System Control System Mooncell/ Nova/ Linsn(Optional)
Software LED Studio
Input Signal DVI/HDMI/DP
PC Operating system Microsoft Windows 7, 98, 2000, XP and Vist



Shop Window Transparent LED Screen Digital Signage , TL10.42mm Led Glass Screen 1Shop Window Transparent LED Screen Digital Signage , TL10.42mm Led Glass Screen 2Shop Window Transparent LED Screen Digital Signage , TL10.42mm Led Glass Screen 3


led screen feature



1.Wide application field & short ROI time:

commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media,floor tile screen ect.

shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen

air port LED display screen, telecommunication LED display screen system for information showing and instruction .



2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.


3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system



4. Clear vivid image quality:
Even in direct full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's

investment.



Methods for Quality Assurance



a. Aging testing :100% fully test Condition: 72 hours with 256 gray level

b. Vibration Testing:Condition: 3-5 min up and down in 5mm range



Advantage



1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.


Payment and delivery



1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.



♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
