Waterproof P6.67 Single Color LED Display HD Cabinet 320*160mm IP65 LSN System

Waterproof P6.67 Single Color LED Display HD Cabinet 320*160mm IP65 LSN System

  • Waterproof P6.67 Single Color LED Display HD Cabinet 320*160mm IP65 LSN System
  • Waterproof P6.67 Single Color LED Display HD Cabinet 320*160mm IP65 LSN System
  • Waterproof P6.67 Single Color LED Display HD Cabinet 320*160mm IP65 LSN System
  • Waterproof P6.67 Single Color LED Display HD Cabinet 320*160mm IP65 LSN System
Waterproof P6.67 Single Color LED Display HD Cabinet 320*160mm IP65 LSN System
Product Details:
Place of Origin: China ,Guang Dong
Brand Name: Shichuangxinke
Certification: CE RoHS FCC CCC TUV UL
Model Number: SCXK-P6.67
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meters
Price: USD 400-750 square meters
Packaging Details: wooden box flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after deposit payment received
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixel Pitch: 6.67mm Pixel Configuration: 1R1G1B
Scanning Mode: Static Full Color Module Size: 320*160mm
Cabinet Size: 640*640mm Certificates: CE RoHS FCC CCC UL
Application: Stadium,airport,shopping Mall,street Advertising Material: Aluminum
Warranty: 2-3 Years
High Light:

digital led sign

,

text led display

P6.67 Single Color LED Display Waterproof HD Cabinet 320*160mm IP65 LSN System



Main features:


Epistar brand LED chips, MBI5024 driver IC, Meanwell Power supply, all are famous brand materials
Vivid image and video, rich in describing the details of color
High brightness ≥ 1500 CD/m2, automatically brightness adjust to environment, IP65 and range working temperature design, can meet your indoor using request
Signal and power automatically timing function, automatically running
Remote control, error detection, control center management function, feedback the error by SMS
DOT-DOT correction function support
A. Good quality, the brightness is adjustability
B. Wide viewing angle
C. Pure white balance, good consistency
D. More than 100, 000hours life span
E. Easy learn and operate
F. Our engineers are free to help installing and adjusting display

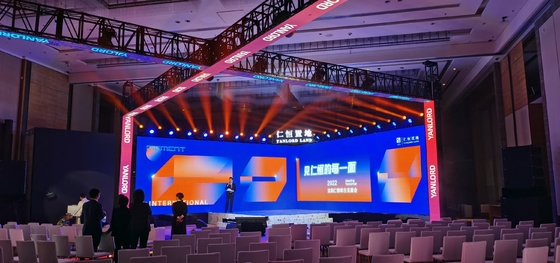

Display is widely used in concert, stage, sports events, fashion shows, exhibitions and so on.





Basic data:
There is DIP, SMD, and Dotmatrix LED display for customer choosing.
This module can be change into Pixels as followed to cater for various needs: P4, P4.75, P6, P7.62, P10, P12, P14, P16, P20, P25, P31.5, P40, P80.

Application of LED display:

Wide applied in stadiums, advertisement, banks, securities exchange, stations, shoping malls
Postal officees, schools, monitoring, restaurants, entertainment, enterprises etc...






Specifications :



outdoor DIP P25
Resolution/mm 6.67
Pixel configuration 1R1G1B
Pixel density/pixels/m² 22478/m²
Module resolution 48*24
Module size/mm 320*160MM
View distance 14-300m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/8SCANNING
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%







Trade Terms:

1. Payment: T/T, 35% deposits before production, 65% balance to be paid before dleiverying (Western Union or Moneygram are welcomed)
2. Production lead time for 100~500PCS: 10days, 500~1000PCS: 15days
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
6. Discounts are offered based on order quantities
7. MOQ: 1PC



Our service:
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, any your customized screen we can help you to design and put into product.
4. Distributoer ship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
