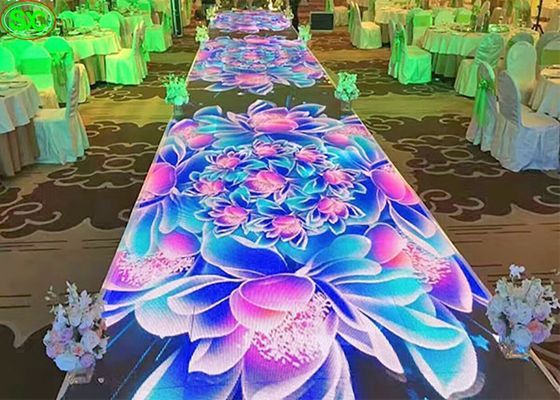

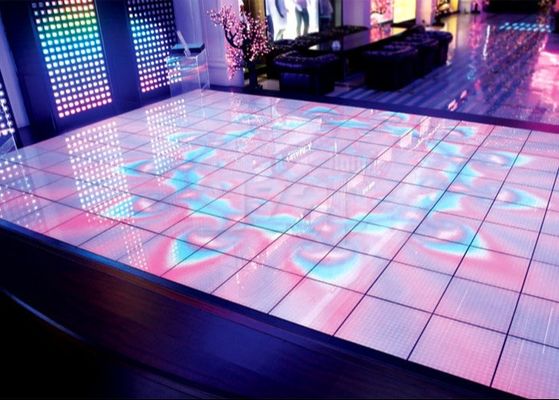

Oudoor P5 Video Dance Floor Rental , Wedding Dance Floor Lights HD 64*32 Resolution

Product Details:

Place of Origin:	China(Mainland)
Brand Name:	SCXK
Certification:	CE ,RoHS, FCC.CCC,SAA ,TUV ,UL
Model Number:	SCXK-P5

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiations
Price:	Negotiations
Packaging Details:	Wooden and flight case ,it's up to you.
Delivery Time:	7-10 working days after payment
Payment Terms:	T/T, Western Union
Supply Ability:	5000sqs/month

Contact Now

Detailed Product Description

Brand Name:	Full Color LED Dance Floor	Resolution:	64*32
Module Size:	320*160mm	Cabinet Size:	640*640mm
Brightness:	≥7500cd/sq	Pixel Density:	40000dots/sq
Warranty:	3-5years	Certifications:	CE ,RoHS, FCC.CCC,SAA ,TUV ,UL
Outdoor Options:	P3.91,P4,P4.81,P5,P6,P6.67,P8,P10,P12,P16,P20,P25,P31.25	Application Place:	Dance Floor,stadium,airport,Shopping Mall Advertising
High Light:	interactive dance floor , light up dance floor

Oudoor P5 LED Dance Floor For Rental HD 64*32Resolution 320*160mm Module

The quick details:
1, High resolution at 40000pixels/square meter;
2, LED Chips: Epistar high brightness;
3, High brightness up to 7000cd/square meter;
4, Power Supply: Meanwell;
5, Control System: Linsn,Nova etc.

Specifications :

P5 LED Dance Floor
Resolution/mm	5
Pixel configuration	1R1G1B
Pixel density/pixels/m²	40000/square meter
Module resolution	64x32
Module size/mm	320x160MM
View distance	14-300m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>7500cd/square meter
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	1/8 SCANNING
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted
	255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃
Self-check technology	LED spot self-check, communications check, power check,
	temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault,
	send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

Shipping details:
Oudoor P5 Video Dance Floor Rental , Wedding Dance Floor Lights HD 64*32 Resolution 0

Our resoults:

RFQ:

Q1: What's the warranty of your LED Display Screen ?
A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.

Q2: What about your pre-sale service and post-sale service?
A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.
Also, we can send technicians to your country to solve problems. Mostly, our led display will not have big problems within warranty time!

Q3: Whats your payment term? How long it takes to delivery?
A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
Our average Production time is 16 days, after receiving the deposit.

Q4: What's the control system?
A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use ONBON or XIXUN control system.

Q5: How can you ensure the led display product quality?
A5: Our led display screen quality is our core competence, for 8 years, what we rely on.
We have each standard process to make quality products.
If any quality failures within warranty time, we will refund you .

Our company has been in this field since 2005,has a professional team and technology,every year the products exported overseas and are popular among foriegn countries.
Well...in short,welcome to visit our website and inquire us about more info!!!
