National Star Lamp Stage indoor and outdoor p2.9p3.91 p4.81 LED Screens HD Video Panel With Die Cast Aluminum Cabinet

National Star Lamp Stage indoor and outdoor p2.9p3.91 p4.81 LED Screens HD Video Panel With Die Cast Aluminum Cabinet

National Star Lamp Stage indoor and outdoor p2.9p3.91 p4.81 LED Screens HD Video Panel With Die Cast Aluminum Cabinet
National Star Lamp Stage indoor and outdoor p2.9p3.91 p4.81 LED Screens HD Video Panel With Die Cast Aluminum Cabinet
National Star Lamp Stage indoor and outdoor p2.9p3.91 p4.81 LED Screens HD Video Panel With Die Cast Aluminum Cabinet
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P3.91
Payment & Shipping Terms:
Minimum Order Quantity: 10 sqm
Price: negotiation
Packaging Details: woooden case ,flight case
Delivery Time: 7-16 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5600 sqm month
Contact Now
Detailed Product Description
Module Size/mm: 250x250 Pixel Density/pixels/m²: 64510/m²
Pixel Configuration: RGB 3 In 1 Lamp Size: 2121
Refresh Frequency: >4200Hz Scanning Mode: 1/8
Product Name: P3.9 Indoor Stage Background Led Big Screens With Die-casting Almuinum Cabinet Warranty: 3 Years
Cabinet Size: 500x500mm
High Light:

stage background led screen

,

stage led display

HD video stage LED panel display with die-cast aluminum cabinet, 3840hz, national star brand lamp



1.Seamless Connection and Easy Installation
Cabinet Size: 500mm*500mm.
Seamless connection, 0.1mm gapline between 2 cabinets.
Fast lock for quick and easy installation.
Maximum support 50 pcs hanging in a collum.



2.Support All Media Format and Display Mode
Support all media format, also support DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program, VCD/DVD and live show. Smart mode available (optional) to monitor the overall working hours and temperature of each cabinet. Hotplug in power supply.


Product specification

SMD P3.91
Lamp size 2121
Resolution/mm 3.91
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 64510/m²
Module resolution 64x64
Module size/mm 250x250
View distance ≥2m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/8
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%


Product Overviews

Items Indoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Material steel,aluminum ,die casting aluminum
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 5 to 7 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.

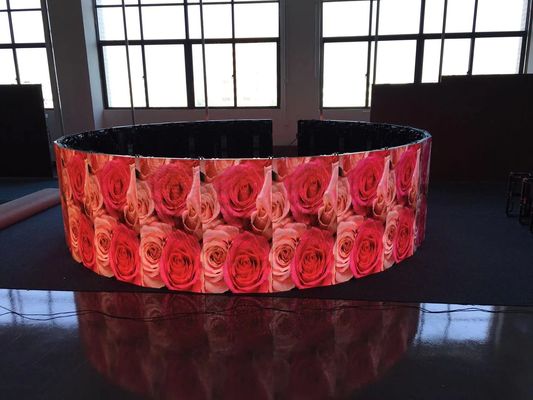

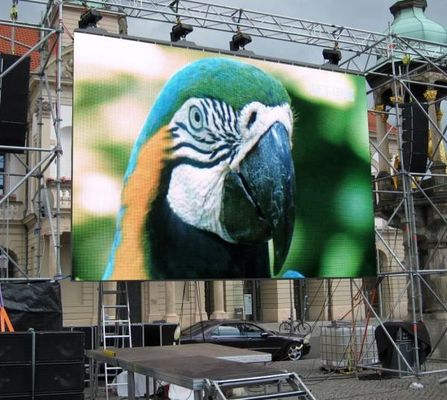

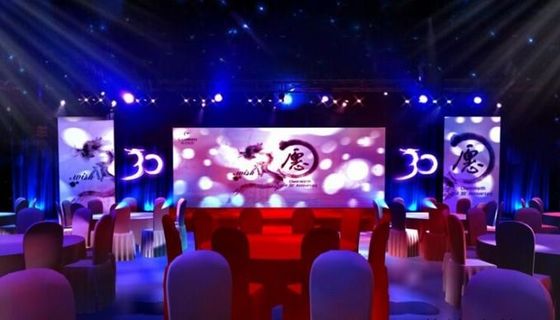

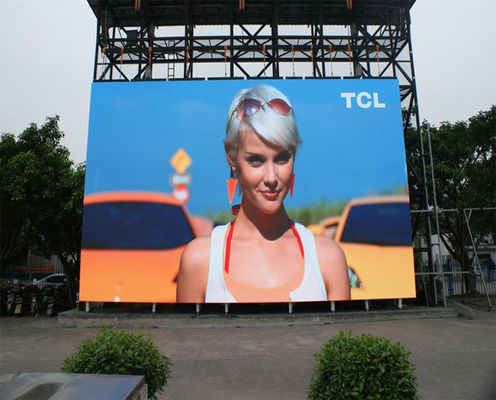

our case

National Star Lamp Stage indoor and outdoor p2.9p3.91 p4.81 LED Screens HD Video Panel With Die Cast Aluminum Cabinet 0National Star Lamp Stage indoor and outdoor p2.9p3.91 p4.81 LED Screens HD Video Panel With Die Cast Aluminum Cabinet 1National Star Lamp Stage indoor and outdoor p2.9p3.91 p4.81 LED Screens HD Video Panel With Die Cast Aluminum Cabinet 2National Star Lamp Stage indoor and outdoor p2.9p3.91 p4.81 LED Screens HD Video Panel With Die Cast Aluminum Cabinet 3National Star Lamp Stage indoor and outdoor p2.9p3.91 p4.81 LED Screens HD Video Panel With Die Cast Aluminum Cabinet 4


Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
National Star Lamp Stage indoor and outdoor p2.9p3.91 p4.81 LED Screens HD Video Panel With Die Cast Aluminum Cabinet 5
Features
1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
3. High refresh rate and high gray scale --- to ensure color consistency and better images
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

Our contact

Sales Engineer Supervisor:Bosco
Wechat : 0086-151778-0539
Mob.: 0086-151-7778-0539

High Definition Video Stage Led Panel Display With Die Casting Almuinum Cabinet
