Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P5 |
| Minimum Order Quantity: | 5sqm |
|---|---|
| Price: | by negotiation |
| Packaging Details: | At your option - flight case, wooden case or carton |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Module Size: | 320*160 | Scan: | 1/8 |
|---|---|---|---|
| LED Shape&size: | 2mm Smd2727 | Cabinet Size: | 960*960/640*640 |
| Brightness: | 6500 | Max Power Consumption: | 800 |
| Avarage Power Consumption: | 280 | Min.View Distance: | 5m |
| High Light: | full color led signs outdoor,full color outdoor led display |
||

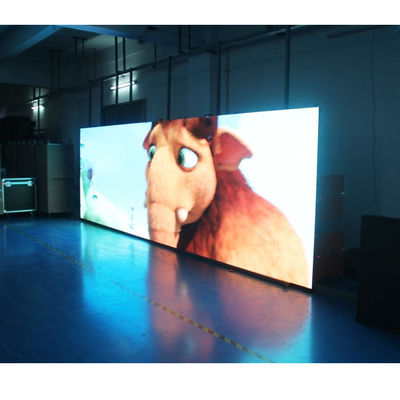

P5 Outdoor Waterproof Digital Advertising LED display screen
Description:
This is the highest resolution outdoor LED display for fixed installation . It shows extremely clear advertisiing information . If you want the best quality, this is your best choice !
The features are as below:
Application:
Advervisting , Billboard , Conference , Concert .
P5 Rental Outdoor Led Screen
| ITEM | P5 |
| Pixel Pitch(㎜) | 5 |
| Pixel Density(pixel/㎡) | 40000 |
| Pixel Component | 1R1G1B |
| LED Configuration | SMD2727 |

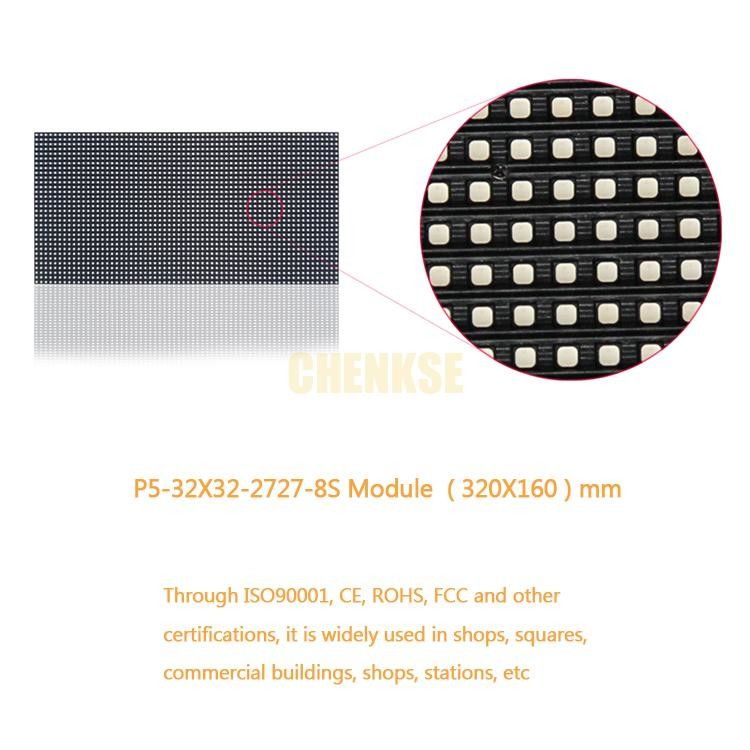

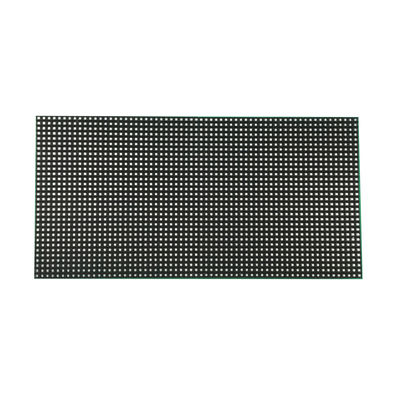

| Module size(W×H)㎜ | 320*160 |
| Scan Mode | 1/8 |
| Cabinet Dimension(W×H)㎜ | 960*960 |
| Cabinet Material | Iron/Aluminum |
| Brightness(cd/㎡) | ≥6500 |
| Color Temperature | 3200K-9500K |
| Viewing Angle(V) | 140° |
| Viewing Angle(H) | 140° |
| Contrast Ratio | 3000:1 |
| Max Power Consumption(w/㎡) | 800 |
| Ave Power Consumption(w/㎡) | 280 |
| Operating Power Source | AC85~264V(47-63Hz) |
| Frame Frequency(Frame/S) | 60 |
| Refresh Rate(Hz) | ≥1920 |
| Gray Level | RGB65536Grade |
| Brightness Adjustment Level | 256Grade |
| Brightness Adjustment Mode | Manual/Automatic/Programmable |
| Control Distance | UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km |
| Operating Temp | ﹣20℃－﹢50℃ |
| Operating Humidity | 10%－90%RH |
| Protecting Rating | IP65 |
| MTBF | ＞50000h |
| LED Life Span | ＞100000h |
| LED Best View distance | 5m-150m |
Packaging:
1:Flight Case(5 cabinets in one case)
Gross Weight:150KG
Size:1010mm*560mm*1175mm
2:Wooden case(5 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm
Our Services:
Buying Guides
In order to offer you a suitable solution,pleasefollow the guides belowing:
1, star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. One year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Company Information
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.
FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in on
Your special wishes and requirements for the product will be carefully considered.
We are open to counter offers of cooperation.
Sincerely, Maku
Contacts:
Shenzhen SCXK Electronics Co.,
www.rgbleddisplays.com
E-mail: maku@scxled.cn
Skype: slot.kg
Whatsapp: +86 130 11726203
Contact Person: maku
Tel: +8613590361707
