| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P10 |
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case. |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Pitch: | 10mm | Pixel Configuration: | Rgb 3in1 |
|---|---|---|---|
| Module Size: | 320x160mm | Pixel Density: | 10000 Dots/sqm |
| Cabinet Size: | 960x960mm | Driving Mode: | 1/4 Scan |
| Brightness: | ≥5500cd/m2 | Warranty: | 3 Years |
| High Light: | full color led signs outdoor,outdoor full color led screen |
||
Outdoor led tv screen fixed led display p10 led billboard price
Applications
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
Module Parameter
| Pixel pitch | 10mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 3535 |
| Module size | 320x160mm |
| LED lamp | KingLight or Nationstar |
| Module resolution | 32x16dots |
Cabinet Parameter
| Cabinet size | 960x960mm |
| Cabinet material | Ironed steel cabinet |
| Cabinet weight | 32.5kg |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 10000 dots/m² |
| Brightness | ≥5500 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 10m |
| Max.power consumption | 900W/m² |
| Avg.power consumption | 330 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 65536 |
| Refresh rate | ≥1920Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥100,000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |
Cabinet pohoto

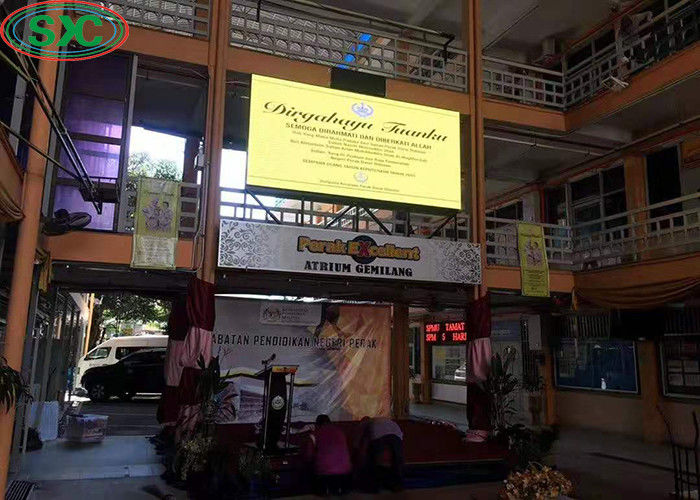

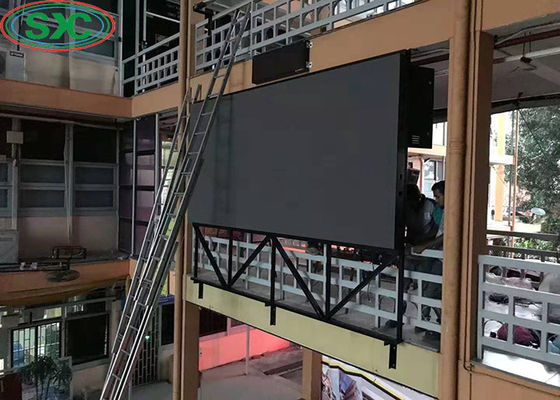

Installation case
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
